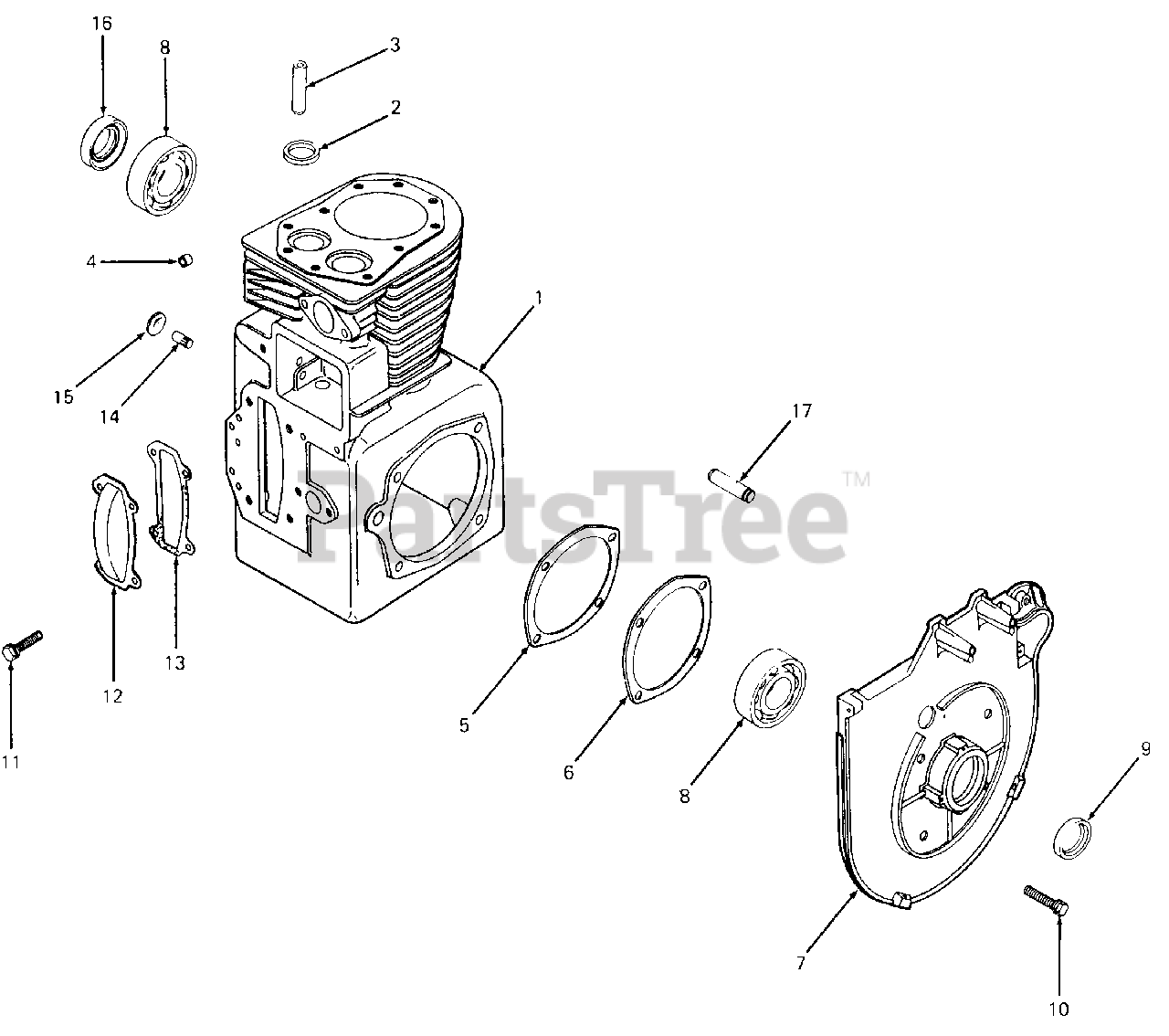

1210 (149-620-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Crankcase Parts Diagram

Garden Tractor

Crankcase Parts Diagram

  • Title

Cub Cadet KH-471512

Engine, Complete

$

$

Currently unavailable

1

Cub Cadet KH-47-782-69

Block, Cylinder Assembly

Note: (Use Miniblock)

$

$

Not available

2

Cub Cadet KH-230170

Insert, Exhaust Valve

$

$

Not available

3

Cub Cadet KH-235007-S

Guide, Valve

$

$

Not available

4

Cub Cadet KH-234866

Bearing, Governor Cross Shaft

$

$

Not available

5

Cub Cadet KH-47-422-05

Gasket, Shim

$

$

Not available

6

Cub Cadet KH-47-041-09

Gasket, Bearing Plate

$

$

Not available

7

Cub Cadet KH-47-146-07

Plate, Bearing

$

$

Not available

8

Cub Cadet KH-235376

Bearing, Ball

$

$

Not available

9

Cub Cadet KH-47-032-06

Seal, Front Oil

$

$

Not available

10

Cub Cadet KH-X-159-2

Screw, HC Sems, 3/8-16 X 1.0 Lg

$

$

Currently unavailable

11

Cub Cadet KH-X-132-6

Screw, HC Sems, 1/4-20 X .50 Lg

$

$

Currently unavailable

12

Cub Cadet KH-235026

Cover, Camshaft

$

$

Not available

13

Cub Cadet KH-235025

Gasket, Camshaft Cover
(Superseded to KH-235025-S)

$10.99

$

In Stock, Qty 7

0

14

Cub Cadet KH-235125-S

Shaft, Governor Gear

$98.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-X-230-11

Plug, Expansion

$

$

Not available

16

Cub Cadet KH-47-032-07

Seal, Rear Oil

$

$

Not available

17

Cub Cadet KH-236559

Shaft, Balance Gear

$

$

Not available
