1210 (148-620-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Ignition Parts Diagram

Garden Tractor

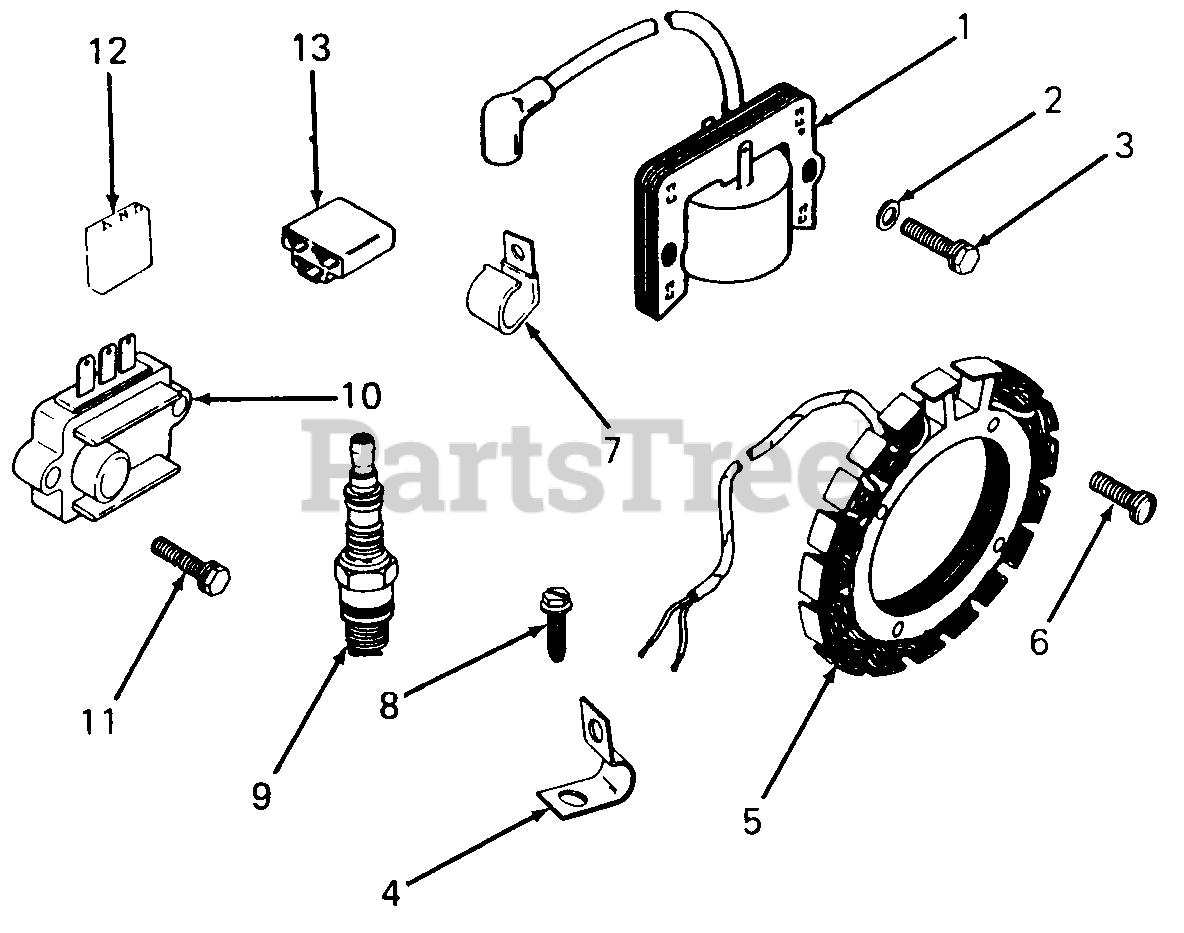

Ignition Parts Diagram

  • Title

1

Cub Cadet KH-47-584-01

Ignition Module

$

$

Not available

2

Cub Cadet KH-X-25-79

Washer, Plain, #10

$

$

Not available

3

Cub Cadet KH-X-156-1

Screw, HC Sems, 10-24 X 7/8 Lg

$

$

Not available

4

Cub Cadet KH-210281

Clip, High Tension Lead

$

$

Not available

5

Cub Cadet KH-237878

Kit, Stator

$149.99

$

In Stock, Qty 15

0

6

Cub Cadet KH-X-778-1

Screw, Pozidriv Pan Hd Sems, 10-24 X 3/4 Lg
(Superseded to KH-25-086-97-S)

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-X-728-1

Clip, Lead

$

$

Not available

8

Cub Cadet KH-X-67-59

Screw, Hex Wash Hd, 8-32 X 3/8 Lg

$

$

Not available

9

Cub Cadet 759-3333

Spark Plug

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-41-403-05

Regulator, Rectifier
(Superseded to KH-25-755-03)

$

$

Not available

11

Cub Cadet KH-X-132-4

Screw, HC Sems, 1/4-20 X 1.0 Lg

$

$

Currently unavailable

12

Cub Cadet KH-236602

Connector, Regulator
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-236473

Connector, Lead

$

$

Not available

Cub Cadet KH-47-518-33

Lead, Module to Connector

Note: (11"-14 gauge-uninsulated push-on tab)

$

$

Not available

Cub Cadet KH-47-518-44

Lead, Regulator to Connector

Note: (15"-18 gauge-uninsulated push-on tab, insulated push-on tab)

$

$

Not available
