1210 (148-620-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Fenders Parts Diagram

Garden Tractor

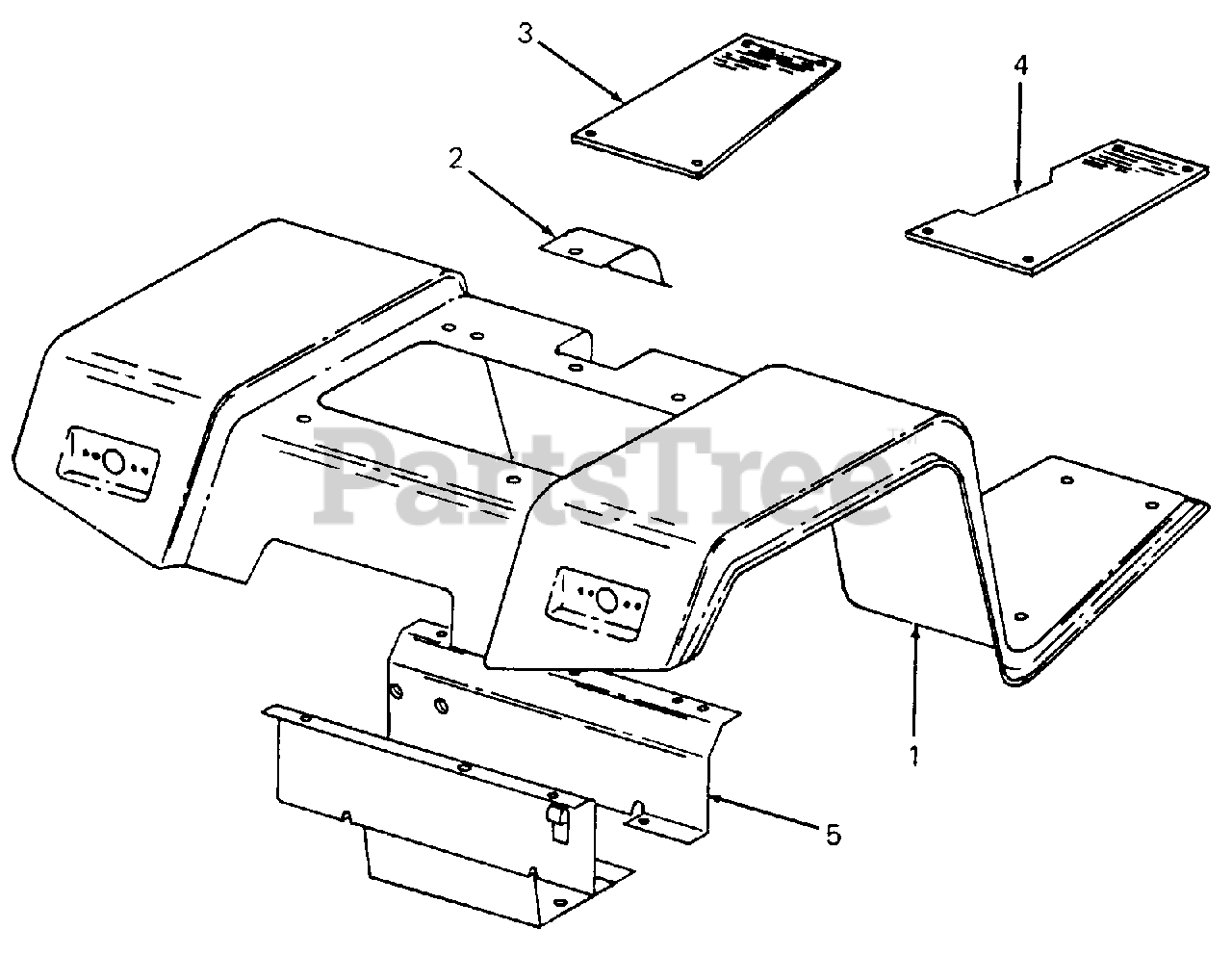

Fenders Parts Diagram

  • Title

1

Cub Cadet 703-0064

Fender

Variations

Cub Cadet 703-0064-0498

FENDER - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3092

Screw, Hex Flange Lock, 5/16-18 X .75 Lg GR5

$

$

Not available

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3017

Screw, Hex Cap, 3/8-16 X .50 Lg GR5

$

$

Not available

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 703-0067

Cover

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, only 3 left!

0

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

3

Cub Cadet 723-3006

Pad, LH Foot

$33.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 723-3007

Pad, RH Foot

$

$

Not available

5

Cub Cadet 703-0864

Support, Fender

$

$

Not available

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .063 Thk

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X.75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3007

Washer, Int Ext Lock, 5/16

$

$

Not available
