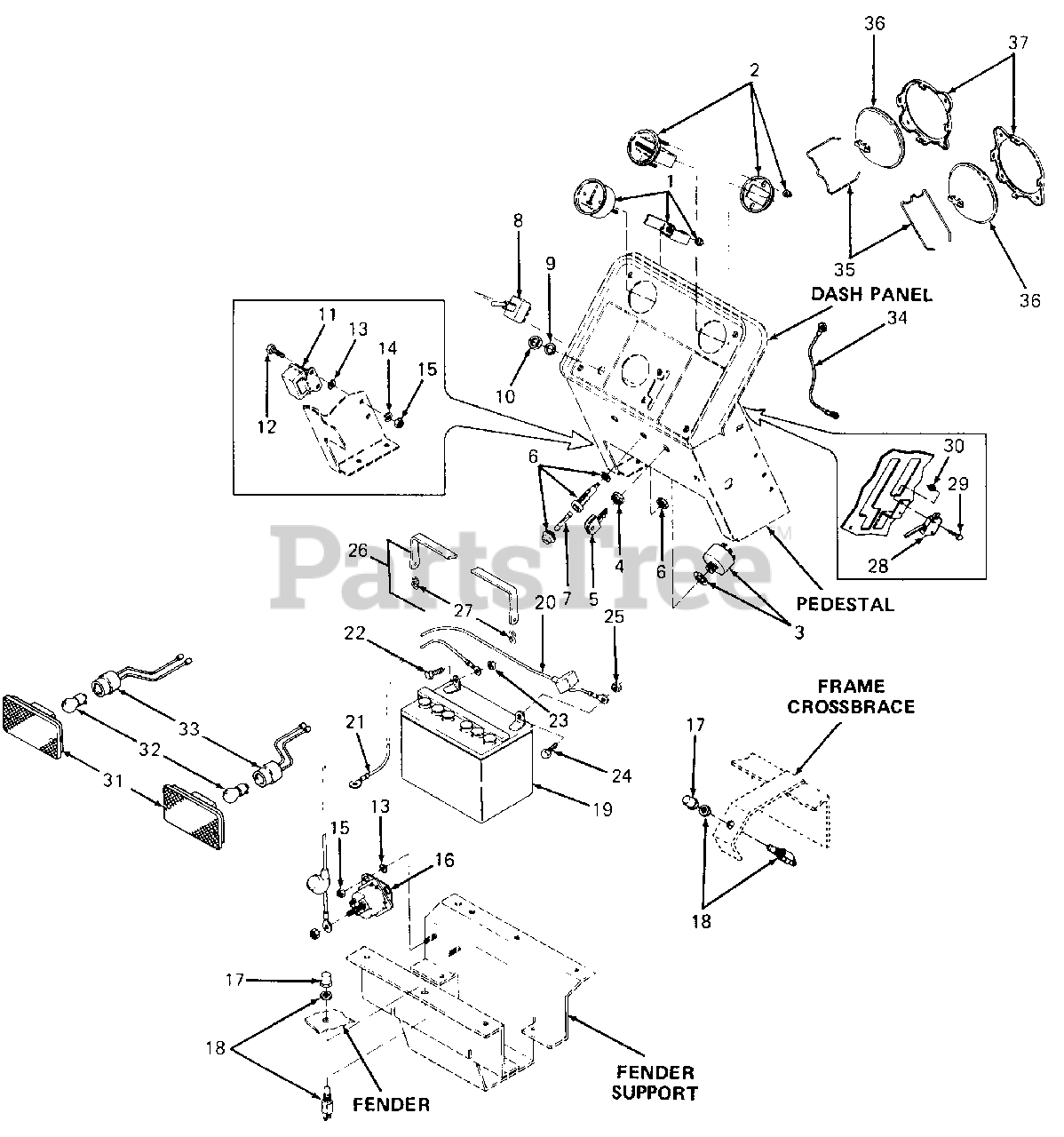

1210 (148-620-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

Cub Cadet 725-3124

Harness, Wire

Note: (2-Relay System); (Used on Tractors w/Serial No. 750,038 thru 756,999)

$

$

Currently unavailable

Cub Cadet 725-3127

Harness, Wire

Note: (Used on Tractors w/Serial No. 757,000 & above)

$

$

Currently unavailable

1

Cub Cadet 725-3023

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

2

Cub Cadet 725-3058

Hourmeter

$

$

Not available

3

Cub Cadet 725-3026

Switch, Ignition Key
(Superseded to 925-3026)

$43.99

$

In Stock, only 4 left!

0

4

Cub Cadet 712-3013

Nut, Switch

$

$

Not available

5

Cub Cadet 759-3476

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

6

Cub Cadet 725-3011

Fuse Holder
(Superseded to 925-3011)

$21.99

$

In Stock, Qty 7

0

7

Cub Cadet 725-3120

Fuse, 20 Amp Slo-Blo
(Superseded to 925-3120)

$

$

Not available

8

Cub Cadet 725-0893

Switch, PTO
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

9

Cub Cadet 736-3003

Washer, Flat, .531 X .680 X .054 Thk

$

$

Not available

10

Cub Cadet 712-3014

Nut, Hex, 1/2-27 X .100 Thk

$

$

Not available

11

Cub Cadet 725-0894

Relay
(Superseded to 925-0894)

$

$

Not available

12

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0222

Washer, Ext Lock, 1/4

$5.99

$

In Stock, only 3 left!

0

14

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

15

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 17

0

16

Cub Cadet 725-3001

Solenoid
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0349

Nut, Hex Mach, #10-32

$4.99

$

In Stock, Qty 5

0

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 735-3006

Boot, Switch

$

$

Not available

18

Cub Cadet 725-3060

Switch w/Nut
(Superseded to 925-3060)

$40.99

$

In Stock, only 2 left!

0

19

Cub Cadet 725-3061

Battery
(Superseded to 925-1707D)

$

$

Not available

20

Cub Cadet 725-3078

Cable, Positive Battery
(Superseded to 925-3078)

$

$

Not available

21

Cub Cadet 725-0978

Cable, Negative Battery
(Superseded to 925-0978)

$

$

Not available

22

Cub Cadet 710-0703

Bolt, Carriage, 1/4-20 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 17

0

24

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 703-0017

Strap Assy, Battery
(Superseded to 903-0017)

Note: [Includes Ref No. 27 (Qty 2)]

$20.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 747-3006

Hook, Battery Strap

$

$

Currently unavailable

28

Cub Cadet 725-3066

Switch, Reverse
(Superseded to 925-3066)

$

$

Not available

29

Cub Cadet 710-3112

Screw, Hex Mach, #4-40 X .75 Lg

$

$

Not available

30

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

31

Cub Cadet 725-3018

Lens Assy, Tail Light

$

$

Currently unavailable

Cub Cadet 710-3003

Screw, Pan Hd, #8-32 X .75 Lg

$

$

Not available

Cub Cadet 736-3018

Washer, Int Ext Lock, #8

$

$

Not available

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 10

0

32

Cub Cadet 725-3020

Bulb, Light

$

$

Not available

33

Cub Cadet 725-3019

Cable Assy, Tail Light

$

$

Not available

34

Cub Cadet 725-3052

Cable, Engine Ground

$

$

Not available

35

Cub Cadet 732-3011

Spring, Headlight Retaining

$

$

Not available

36

Cub Cadet 725-0222

Headlights
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

37

Cub Cadet 703-0166

Retainer, Headlight

$

$

Not available

Cub Cadet 710-3003

Screw, Pan Hd, #8-32 X .75 Lg

$

$

Not available

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 10

0
