1210 (148-620-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Carburetor Parts Diagram

Garden Tractor

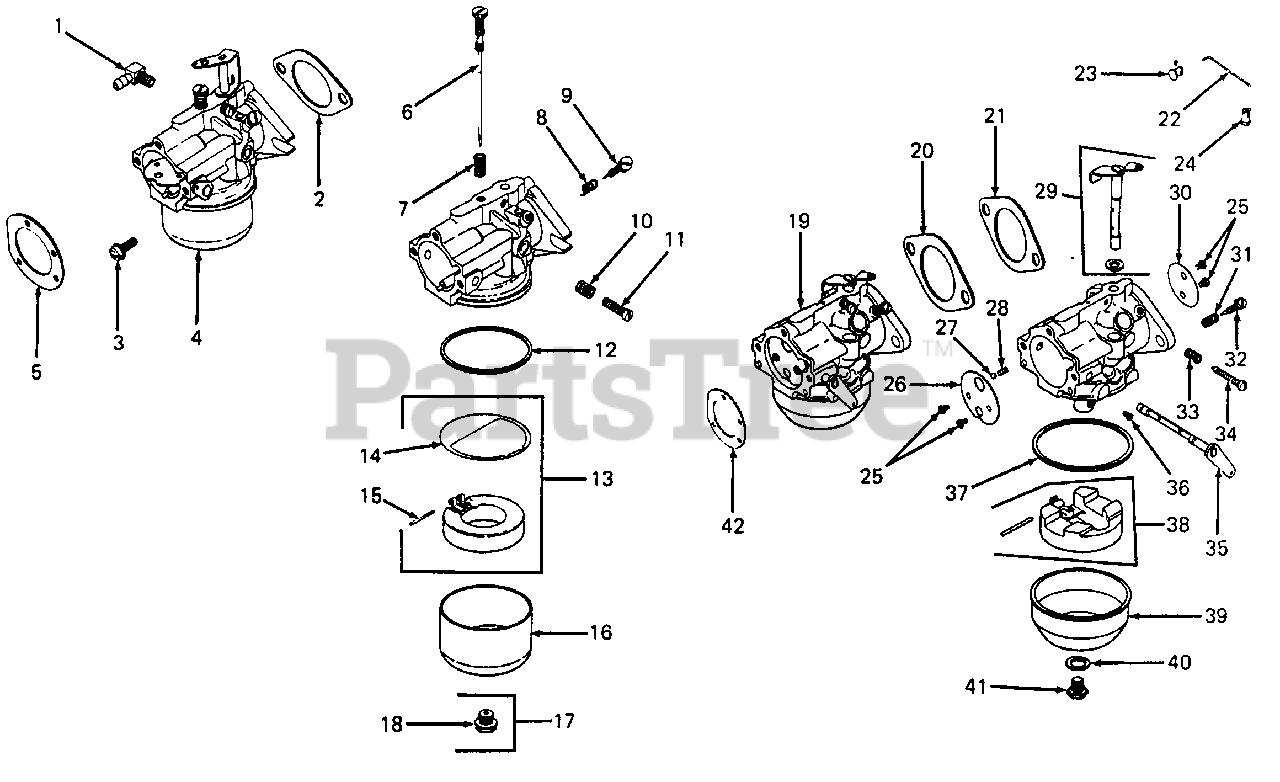

Carburetor Parts Diagram

  • Title

1

Cub Cadet KH-25-155-02

Connector, 90

$

$

Not available

2

Cub Cadet KH-47-049-01

Gasket, Carburetor

$

$

Not available

3

Cub Cadet KH-X-770-1

Screw, Sltd Hd, 5/16-18 X 1.0 Lg

$

$

Not available

4

Cub Cadet KH-47-053-62

Carburetor Assembly
(Superseded to KH-47-853-20)

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

5

Cub Cadet KH-47-041-05

Gasket, Air Cleaner

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

6

Cub Cadet KH-235415

Needle, Main Fuel Adj

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

7

Cub Cadet KH-200383

Spring, Main Fuel

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

8

Cub Cadet KH-200380

Spring, Idle Fuel

Note: (For engines built before Serial No. 1724400013)

$8.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-235006

Needle, Idle Fuel Adj
(Superseded to KH-235006-S)

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

10

Cub Cadet KH-232555

Spring, Idle Speed

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

11

Cub Cadet KH-232556

Screw, Idle Speed Adj

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

12

Cub Cadet KH-200375

Gasket, Bowl

Note: (For engines built before Serial No. 1724400013)

$7.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-757-03

Kit, Float
(Superseded to KH-25-757-03-S)

Note: (Includes Ref No. 14 & 15)

$

$

Not available

14

Cub Cadet KH-25-041-02

Gasket, Bowl Baffle

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

15

Cub Cadet KH-200376

Pin, Float Hinge

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

16

Cub Cadet KH-235448

Bowl, Fuel

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

17

Cub Cadet KH-47-100-06

Screw, Bowl Retainer
(Superseded to KH-47-100-06-S)

Note: (For engines built before Serial No. 1724400013)

$

$

Not available

18

Cub Cadet KH-200372

Gasket, Bowl Retainer Screw

Note: (For engines built before Serial No. 1724400013)

$3.49

$

In Stock, only 1 left!

0

19

Cub Cadet KH-47-853-09

Kit, Carburetor w/Linkage
(Superseded to KH-47-853-20)

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

20

Cub Cadet KH-271030

Gasket, Carburetor

Note: (For engines built after Serial No. 1724400003)

$7.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-47-049-01

Gasket, Carburetor

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

22

Cub Cadet KH-47-079-10

Linkage, Carburetor

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

23

Cub Cadet KH-25-158-07

Bushing, Linkage Retaining - Yellow
(Superseded to KH-25-158-11)

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

24

Cub Cadet KH-47-158-06

Bushing, Linkage Retaining - White
(Superseded to KH-47-158-07)

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

25

Cub Cadet KH-25-086-27

Screw, Throttle & Choke Plate

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

26

Cub Cadet KH-47-146-08

Plate, Choke

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

27

Cub Cadet KH-25-194-01

Ball, Choke Friction

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

28

Cub Cadet KH-25-089-03

Spring, Choke Friction

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

29

Cub Cadet KH-47-144-21

Shaft, Throttle w/Lever & Seal
(Superseded to KH-47-144-35-S)

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

30

Cub Cadet KH-25-146-02

Plate, Throttle

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

31

Cub Cadet KH-25-089-02

Spring, Idle Fuel

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

32

Cub Cadet KH-25-368-01

Needle, Idle Fuel Adj

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

33

Cub Cadet KH-25-089-04

Spring, Idle Speed

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

34

Cub Cadet KH-25-086-26

Screw, Idle Speed Adj

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

35

Cub Cadet KH-47-090-38

Lever, Choke

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

36

Cub Cadet KH-47-337-02

Jet, Main

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

37

Cub Cadet KH-25-041-04

Gasket, Bowl

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

38

Cub Cadet KH-25-757-09

Kit, Float

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

39

Cub Cadet KH-25-104-01

Bowl, Fuel

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

40

Cub Cadet KH-25-041-03

Gasket, Bowl Retainer Screw

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

41

Cub Cadet KH-25-100-05

Screw, Bowl Retainer
(Superseded to KH-12-086-05)

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

42

Cub Cadet KH-45-041-07

Gasket, Air Cleaner

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

Cub Cadet KH-25-757-01

Kit, Carburetor Repair

Note: (For engines built before Serial No. 1724400013)

$22.99

$

In Stock, Qty 5

0

Cub Cadet KH-25-757-08

Kit, Carburetor Repair
(Superseded to KH-25-757-11)

Note: (For engines built after Serial No. 1724400003)

$

$

Not available

Cub Cadet KH-25-757-05

Kit, Throttle & Choke Repair

Note: (For engines built before Serial No. 1724400013)

$

$

Currently unavailable

Cub Cadet KH-47-755-36

Kit, High Altitude Jet

Note: (For engines built after Serial No. 1724400003)

$

$

Not available
