1210 (142-680-399) - Cub Cadet Garden Tractor (SN: 000001 - 756299) Transmission Controls Parts Diagram

Garden Tractor

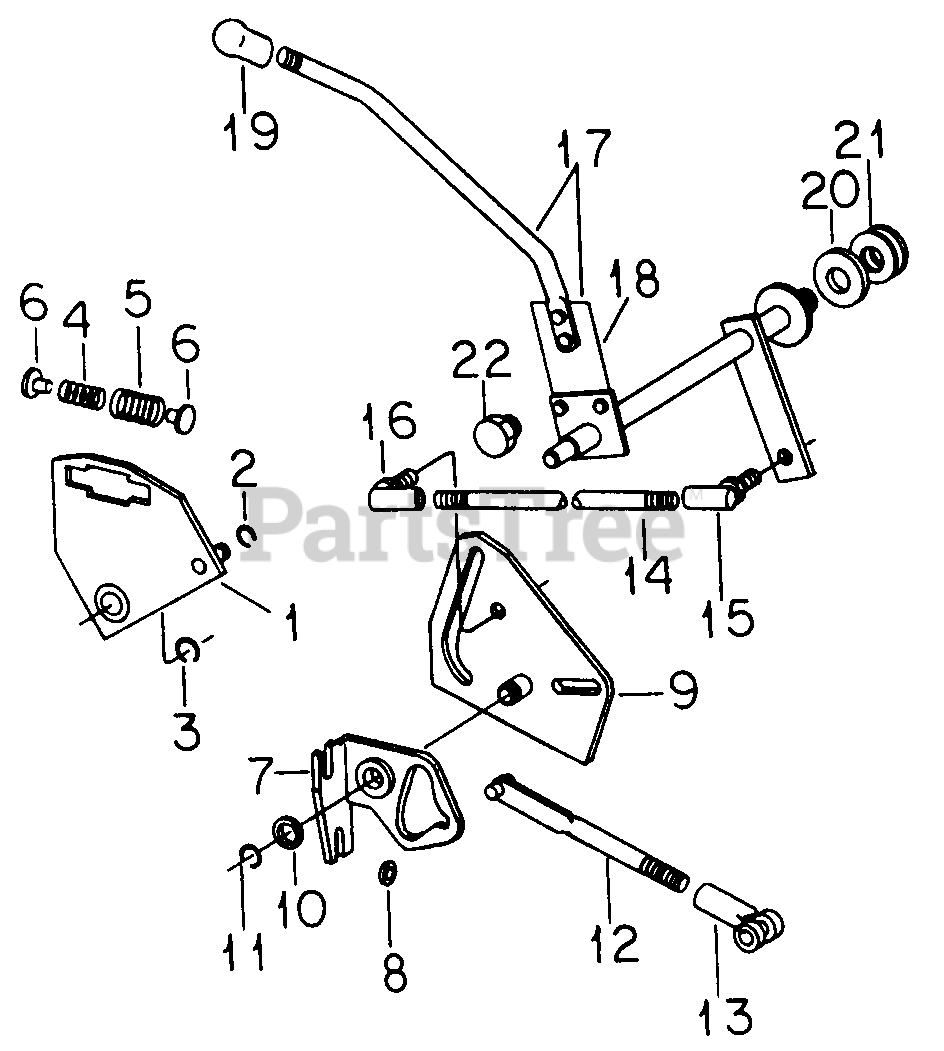

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 703-0194

Plate Assy, Damper Spring
(Superseded to 903-0194)

$

$

Not available

2

Cub Cadet 716-3000

Ring, Retaining

$

$

Not available

3

Cub Cadet 716-0115

Ring, Retaining
(Superseded to 916-0115)

$

$

Not available

4

Cub Cadet 732-3012

Spring, Damper LT
(Superseded to 932-3012)

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet 732-3013

Spring, Damper HV
(Superseded to 932-3013)

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet 711-3033

Pin, Damper Spring Guide

$15.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-0196

Bracket Assy, Cam Pivot

$

$

Not available

Cub Cadet 710-0520

Bolt, 3/8 X 1-1/2 Pln Type 5

$4.49

$

In Stock, Qty 5

0

8

Cub Cadet 736-0267

Washer, .406 X .812 X .065

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 703-0198

Cam Assy, Control
(Superseded to 703-0198A)

$84.99

$

Usually ships in 3-6 days

0

10

Cub Cadet IH-394049-R1

Washer, Cam Retaining
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 716-0865

Ring, Cam Retaining

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 703-0200

Rod Assy, Control

$

$

Not available

13

Cub Cadet 719-3013

Clevis, 3/8 Rod End

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 6

0

Cub Cadet IH-46883-H

Pin, 3/8 X 1.562 Pln Clevis
(Superseded to 911-0415)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Cot

$4.49

$

In Stock, Qty 12

0

Cub Cadet 712-3001

Nut, 3/8-NF Pln Jam Type 5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

14

Cub Cadet 747-3018

Stud, Connecting

$

$

Not available

15

Cub Cadet 723-3011

Joint, 5/16-24 Znd Ball
(Superseded to 923-3011)

$37.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0119

Nut, 5/16-NF Type 5
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-3012

Joint, 5/16-24 Znd Ball
(Superseded to 923-3012)

$42.99

$

In Stock, only 4 left!

0

Cub Cadet 712-0237

Nut, 5/16-NF Cad P/T Lock Type 8

$4.99

$

In Stock, only 4 left!

0

17

Cub Cadet 703-0201

Shaft Assy, Cross

$

$

Not available

18

Spring, Flat

Note: (Order 703-0201)

$

$

Not available

19

Cub Cadet 720-3000

Knob, Control
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

20

Cub Cadet 723-3013

Disc, Friction
(Superseded to 923-3013)

$

$

Not available

21

Cub Cadet 736-3022

Washer, Belleville
(Superseded to 936-3022)

$5.49

$

In Stock, only 2 left!

0

Cub Cadet 712-3053

Nut, 1/2-NF Cad P/T Lock Type 5
(Superseded to 912-3053)

$

$

Not available

22

Cub Cadet 710-3033

Bearing, Rockshaft

$

$

Not available

Cub Cadet 712-3026

Nut, 3/4-NF Jam Type 5

$4.99

$

In Stock, Qty 7

0

Cub Cadet IH-131017

Washer, .812 X 1.469 X .108

$

$

Currently unavailable
