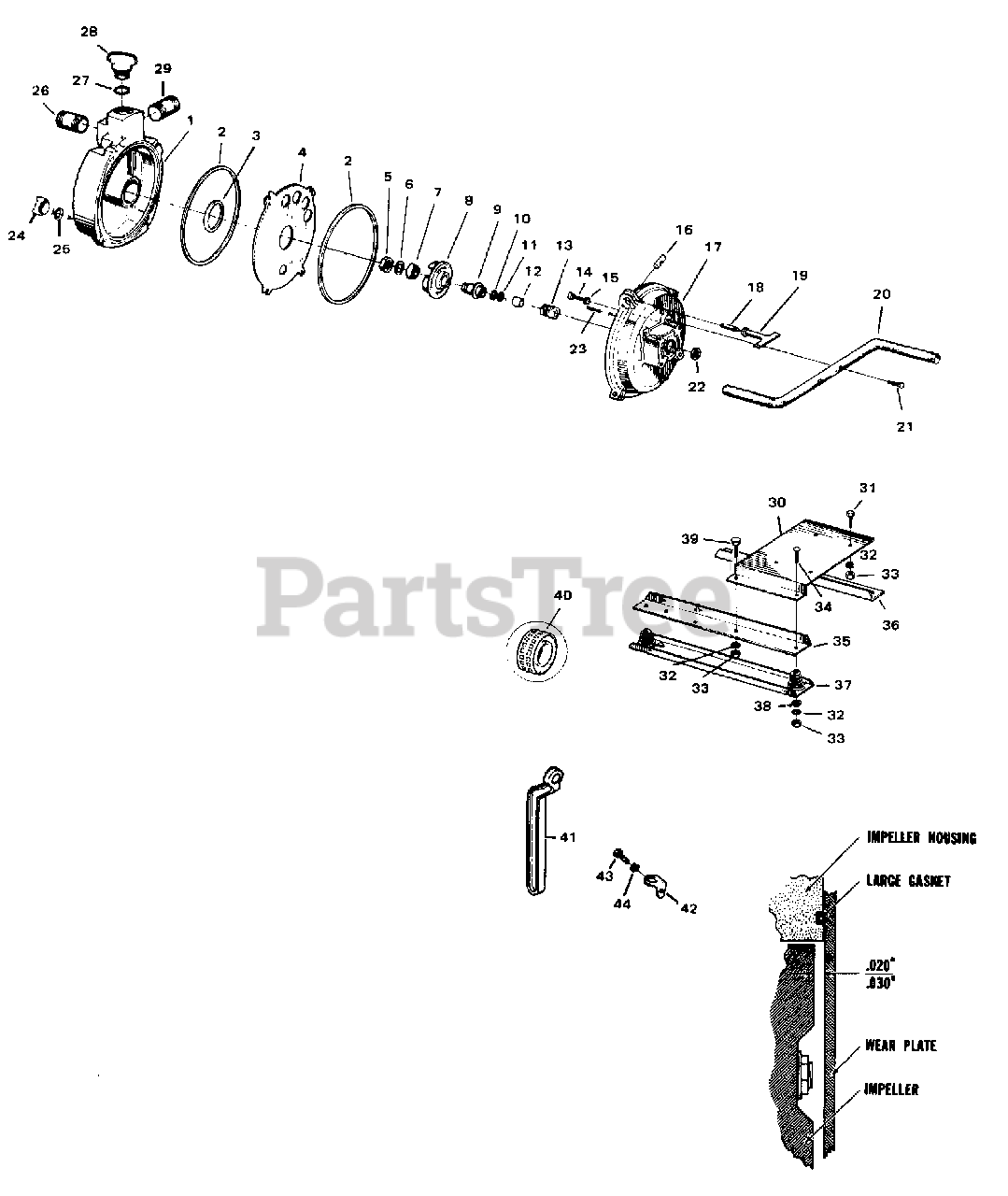

121 TP21 (UT-01484) - Homelite Trash Pump Pump Parts Diagram

Trash Pump

Pump Parts Diagram

  • Title

Homelite A50498

ENGINE

$

$

Currently unavailable

1

Homelite A509141

HOUSING- End

$

$

Currently unavailable

Homelite 50912

SLEEVE- End housing

Note: (not shown)

$

$

Not available

Homelite 53876A

LABEL-Service Instr.

Note: (not shown)

$

$

Currently unavailable

Homelite 46435

DECAL- Engine

Note: (not shown)

$

$

Not available

2

Homelite 54070

GASKET- Large
(Superseded to UP06418)

$

$

Not available

3

Homelite 54069

GASKET- Small
(Superseded to UP06417)

$13.99

$

Usually ships in 3-7 days

0

4

Homelite 541361

PLATE- Wear

$

$

Currently unavailable

5

Homelite 54741

NUT
(Superseded to UP06424)

$

$

Not available

6

Homelite 54740

WASHER

$

$

Not available

7

Homelite 54739A

BUSHING- Tapered
(Superseded to UP06423)

$6.99

$

Usually ships in 3-7 days

0

8

Homelite 541322

IMPELLER
(Superseded to UP07788)

$

$

Not available

9

Homelite 547381

HUB- Impeller
(Superseded to UP06422)

$

$

Not available

10

Homelite 62882A

SHIM,.010
(Superseded to UP07026)

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 62883A

SHIM,.015
(Superseded to UP06439)

$

$

Not available

12

Homelite 50516

SPACER- Crankshaft
(Superseded to UP03777)

$

$

Not available

13

Homelite A627131

SEAL ASSEMBLY

$

$

Currently unavailable

Homelite 627151

HEAD

$

$

Currently unavailable

14

Homelite 80927

SCREW- Hex hd., 5/16-24 x 2 1/4

$

$

Not available

15

Homelite 62874

WASHER- Sealing
(Superseded to UP06437)

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 543971

PIVOT- Handle

$

$

Currently unavailable

17

Homelite 541312

HOUSING- Impeller

$

$

Currently unavailable

18

Homelite 543981

STUD- Handle

$

$

Currently unavailable

19

Homelite 545502

HANDLE- Disconnect
(Superseded to 545502A)

$

$

Not available

20

Homelite 545811

HANDLE- Carrying

$

$

Currently unavailable

21

Homelite 80199

SCREW- Hex hd., 5/16-18 x 1 1/4
(Superseded to 80088)

$

$

Not available

22

Homelite 76885A

SLINGER
(Superseded to UP06453)

$

$

Not available

23

Homelite 54660

PIN- Spirol

$

$

Not available

24

Homelite A43896

PLUG- Drain
(Superseded to UP07092)

$

$

Currently unavailable

25

Homelite 59910

GASKET

$

$

Not available

26

Homelite 756631

NIPPLE, 2" x 2" long
(Superseded to UP03807)

$

$

Not available

27

Homelite 18108

GASKET

$

$

Not available

28

Homelite 545512

PLUG- Wing

$

$

Currently unavailable

29

Homelite 541511

NIPPLE, 2" x 3 1/2" long

$

$

Not available

30

Homelite 546581

PLATE- Engine mounting

$

$

Currently unavailable

31

Homelite 80087

SCREW, 5/16-18 x 1 1/2

$

$

Not available

32

Homelite 83002

WASHER- Lock, 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

33

Homelite 81162

NUT, 5/16-18

$

$

Not available

34

Homelite 800851

BOLT- Carriage, 5/16-18
(Superseded to 80085)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 740222

ANGLE- Base, left side

$

$

Not available

36

Homelite 740232

ANGLE- Base, right side

$

$

Not available

37

Homelite A76838

SKID ASSEMBLY

$

$

Currently unavailable

Homelite 50389

SPRING
(Superseded to UP03795)

$

$

Not available

Homelite 85025

RIVET

$

$

Not available

38

Homelite 84032

WASHER- Flat, 5/16

$

$

Not available

39

Homelite 80695

SCREW, 5/16-18 x 3/4
(Superseded to UP03381)

$

$

Not available

40

Homelite 54702A

STRAINER
(Superseded to UP08146)

$87.99

$

Usually ships in 3-7 days

0

41

Homelite 19189B

WRENCH- Spanner
(Superseded to UP03586)

$

$

Not available

42

Homelite 624501

HOLDER- Spanner wrench

$

$

Not available

43

Homelite 801361

SCREW- Fil, hd. 1/4-20 x 3/8

$

$

Currently unavailable

44

Homelite 84020

WASHER- Flat, 1/4

$

$

Not available
