121-7480 - Toro Hydraulic System Cooling Kit for GrandStand Mower HYDRAULIC SYSTEM COOLING ASSEMBLY NO. 121-7480 Parts Diagram

Hydraulic System Cooling Kit for GrandStand Mower

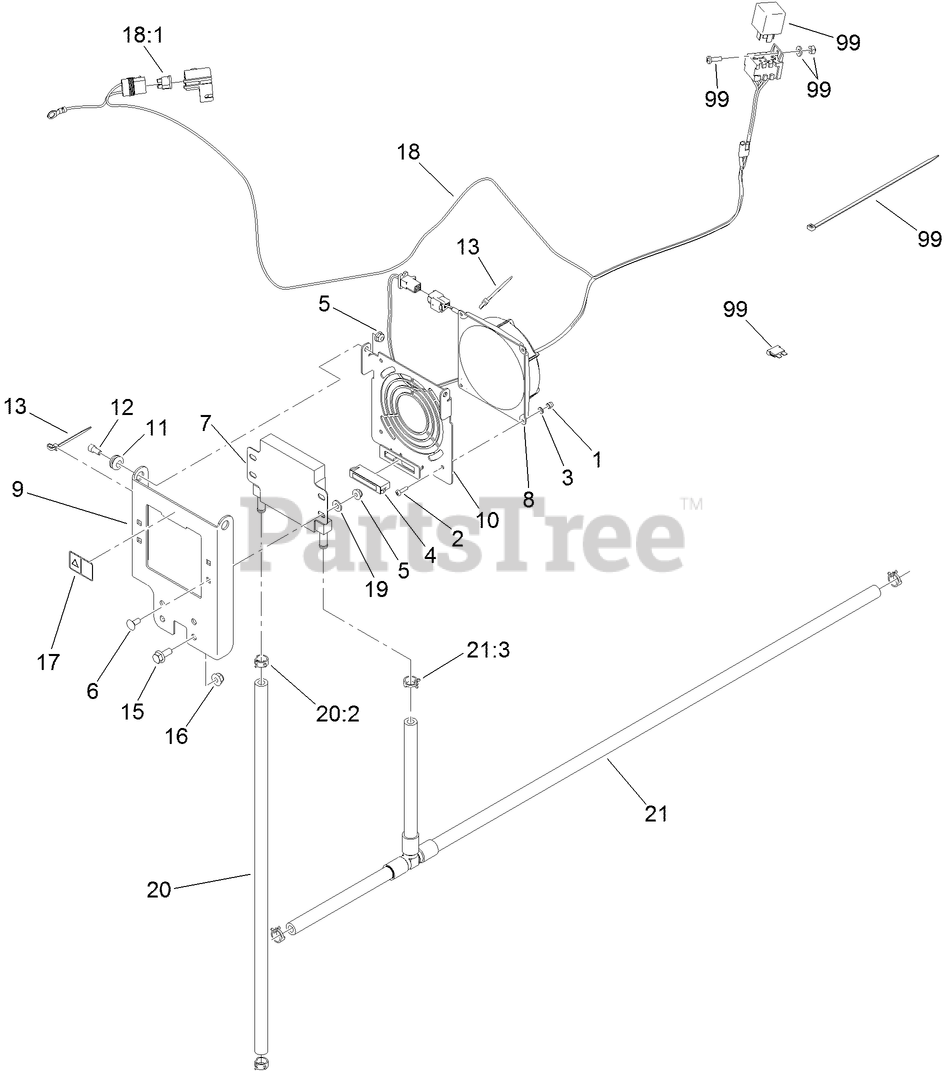

HYDRAULIC SYSTEM COOLING ASSEMBLY NO. 121-7480 Parts Diagram

  • Title
1

Toro 46-0430

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

2

Toro 46-0670

SCREW-PPH

$2.49

$

Usually ships in 3-6 days

0

3

Toro 48-7990

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro 58-4250

CATCH-MAGNETIC

$47.99

$

Usually ships in 3-6 days

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 116-7205

COOLER-OIL

$201.99

$

In Stock, only 1 left!

0

8

Toro 116-7047

FAN-ELECTRIC

$221.99

$

Usually ships in 3-6 days

0

9

Toro 121-7481-03

BRACKET-MOUNT, FAN

$54.99

$

Usually ships in 3-6 days

0

10

Toro 121-7482-03

BRACKET-MOUNT, FAN

$59.99

$

Usually ships in 3-6 days

0

11

Toro 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

12

Toro 3274-52

SCREW-HSH

$3.49

$

Usually ships in 3-6 days

0

13

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

18

Toro 121-7512

HARNESS-WIRE

$

$

Not available

18:1

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 121-7499

HOSE ASM

$23.99

$

Usually ships in 3-6 days

0

20:2

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

21

Toro 112-3809

TANK HOSE ASM

$59.99

$

Usually ships in 3-6 days

0

21:3

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

99

$23.99

$

In Stock, Qty 20+

0

99

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

99

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

99

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

99

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

99

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
