121-118R190 - White Outdoor 21" Walk-Behind Mower (1991) Mower Assembly Parts Diagram

21" Walk-Behind Mower

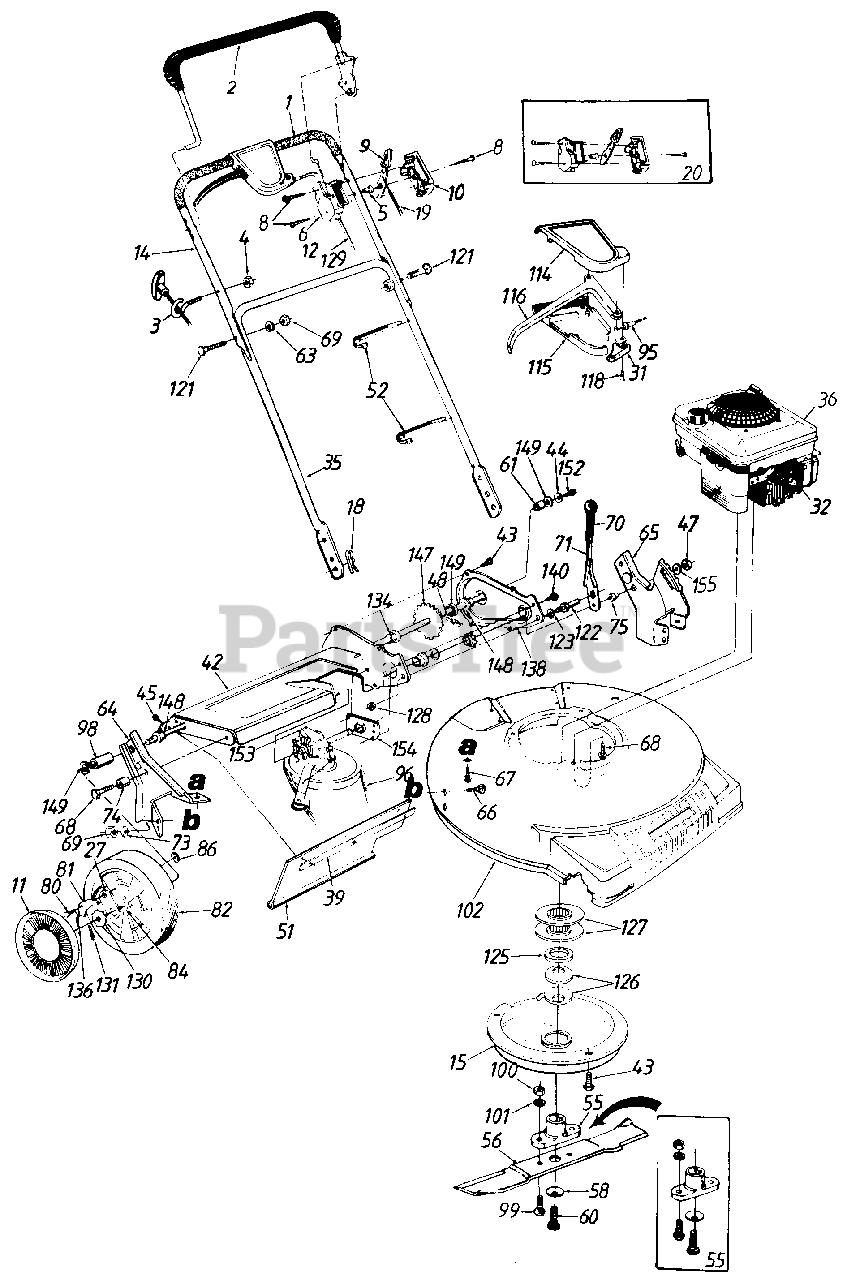

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 720-0225

Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

2

White Outdoor 731-0609

Control Handle Ass'y.

$

$

Not available

3

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, only 1 left!

0

4

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

5

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

6

White Outdoor 731-0816A

Clutch Panel Half

$

$

Not available

8

White Outdoor 710-0796

Truss Mach Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

9

White Outdoor 731-0528A

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

10

White Outdoor 731-0817A

Control Panel Half

$

$

Not available

11

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

12

White Outdoor 777-5814

Throttle Control Label

$

$

Not available

14

White Outdoor 749-0757

Upper Handle

$

$

Not available

15

White Outdoor 782-7522

Belt Cover

Variations

White Outdoor 782-7522-0637

COVER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 746-0642

Throttle Control Wire 51" Lg.
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

20

White Outdoor 753-0430

Kit-Control Housing Comp.

$

$

Not available

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

31

White Outdoor 731-1059

S.P. Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

35

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

36

Engine

$

$

Not available

39

White Outdoor 14835

Retaining Strip

$

$

Not available

42

White Outdoor 682-7507

Chain-Axle Ass'y.

$

$

Not available

43

White Outdoor 710-0352

Hex B-Tap Scr. 1/4" X .38"

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0270

Bell-Wash. 1/4" l.D.

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 X .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

White Outdoor 713-0361

#48 Chain .500" Pitch x 38 Links
(Superseded to 913-0361)

$

$

Not available

51

White Outdoor 731-0672A

Rear Flap 3.75" x 17.30" Lg.

$31.99

$

Usually ships in 3-6 days

0

52

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

55

White Outdoor 753-0519

Blade Adapter Kit

$

$

Not available

56

White Outdoor 742-0563

21" Mulching Blade
(Superseded to 942-0721)

$32.99

$

Usually ships in 3-6 days

0

58

White Outdoor 736-0453

Bell-Wash. 47" l.D. x 1.14n O.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

60

White Outdoor 710-0561

Hex Bolt 7/16-20 x 2.5"

$10.99

$

In Stock, only 1 left!

0

61

White Outdoor 748-0190

Spacer .513" l.D.

$6.49

$

In Stock, only 1 left!

0

63

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 682-3006

R.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

65

White Outdoor 682-3007

L.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654A

Hex TT-Tap Scr. 3/8-16

$4.49

$

In Stock, only 3 left!

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

White Outdoor 732-0580

Height Adj. Lever

$7.99

$

In Stock, only 1 left!

0

73

White Outdoor 736-0242

Bell-Wash. 5/16" l.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 750-0736

Spacer.383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

White Outdoor 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

80

White Outdoor 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

White Outdoor 748-0188B

Pawl
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

82

White Outdoor 734-1510B

Wheel Ass'y. Comp.-Rear
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

84

White Outdoor 741-0486B

Sleeve Bearing 1/2n l.D.

$

$

Not available

86

White Outdoor 712-0189

Flat Nut 1/4-20 Thd.
(Superseded to 912-0414)

$

$

Not available

95

White Outdoor 746-0712A

S.P. Cable-44" Lg.

$

$

Not available

96

White Outdoor 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

98

White Outdoor 711-0313

Sleeve.526" I.D.
(Superseded to 911-0313)

$

$

Not available

99

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

100

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

101

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

102

White Outdoor 782-0015

21" Deck Ass'y.

Variations

White Outdoor 782-0015-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 782-0015-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 782-0015-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0015-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-0015-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

114

White Outdoor 731-1057

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

115

White Outdoor 731-1058

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

116

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

118

White Outdoor 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75n Lg.

$4.49

$

Usually ships in 3-6 days

0

121

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

White Outdoor 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

123

White Outdoor 736-0169

L-Wash. 3/8" l.D.

$3.99

$

In Stock, Qty 20+

0

125

White Outdoor 748-0332

Crankshaft Spacer

$

$

Not available

126

White Outdoor 736-0450

Bell-Wash. 1.01" l.D.
(Superseded to 936-0450)

$

$

Not available

127

White Outdoor 756-0502

Serrated Pulley Half
(Superseded to 956-0502)

$

$

Not available

128

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

129

White Outdoor 746-0476A

Control Cable-39"
(Superseded to 946-0476A)

$

$

Not available

130

White Outdoor 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1

$3.99

$

Usually ships in 3-6 days

0

134

White Outdoor 741-0522

Hex Flange Bearing

$

$

Not available

136

0 Spring-Nylon

$

$

Not available

138

White Outdoor 682-7506

Chain Cover Ass'y.

Variations

White Outdoor 682-7506-0483

No Longer Available COVER ASSY-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 682-7506-0498

No Longer Available COVER ASSY-CHAIN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 682-7506-0637

No Longer Available COVER ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-7506-0638

No Longer Available COVER ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

140

White Outdoor 710-0599

Hex S-Tap Scr. 1/4-20 x .50n

$4.49

$

In Stock, Qty 20+

0

147

White Outdoor 738-0864

Rear Shaft Ass'y. 21.44n Lg.
(Superseded to 938-0864)

$

$

Not available

148

White Outdoor 741-0324

Hex Flange Brg. .506n l.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

White Outdoor 736-0160

Fl-Wash. .531" l.D. x .930"

$4.49

$

In Stock, only 2 left!

0

152

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

White Outdoor 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

White Outdoor 736-0300

Fl-Wash. .885" l.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0
