121-118R - MTD Walk-Behind Mower (1991) Rotary Parts Diagram

Walk-Behind Mower

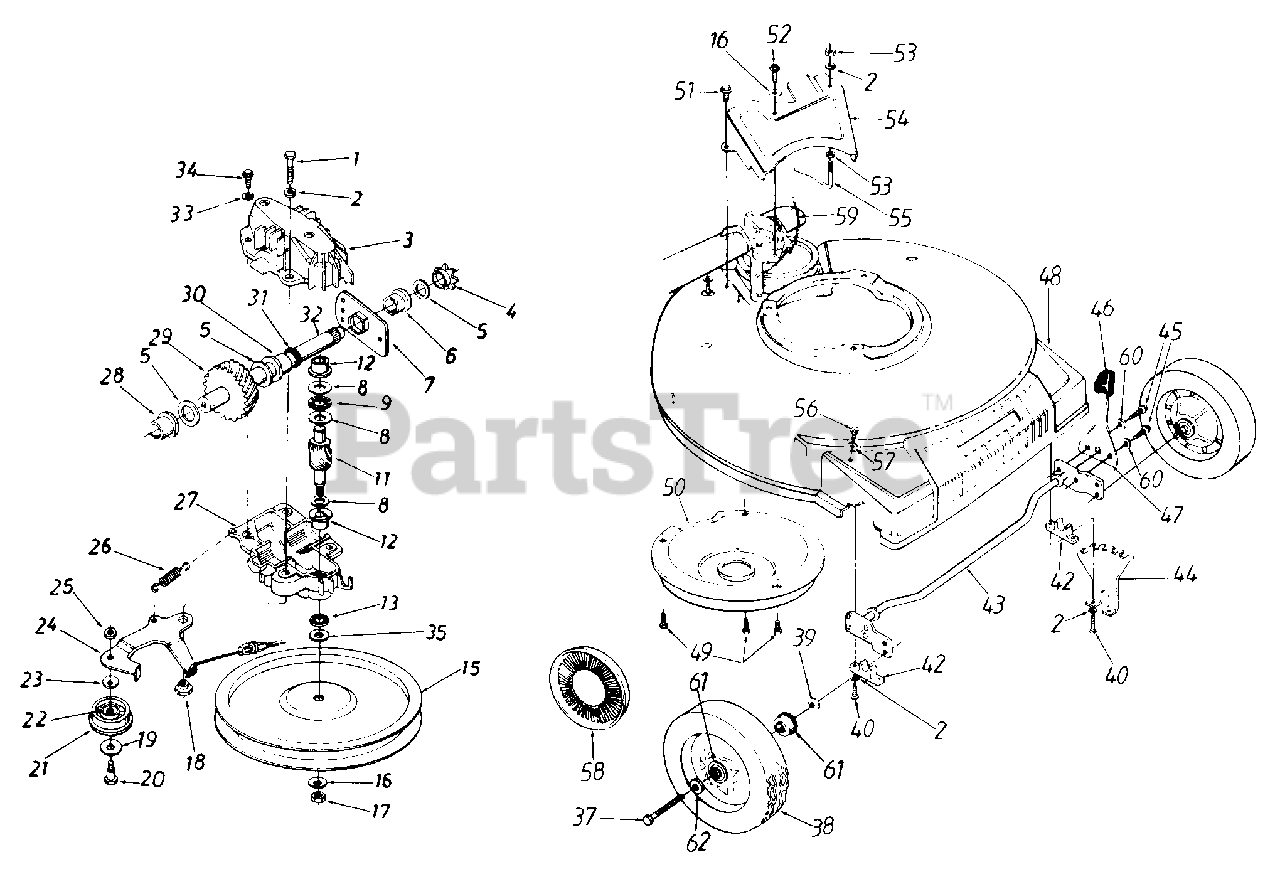

Rotary Parts Diagram

  • Title

1

MTD 710-1062

Hex Patch Bolt 1/4-20 x 1.25"

$6.49

$

Usually ships in 3-6 days

0

2

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

3

MTD 717-0418A

Upper Hsg Half

$

$

Not available

4

MTD 713-0400

#48 Sprocket 7 T x 1/2 Pitch

$

$

Not available

5

MTD 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

MTD 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

7

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

MTD 736-0314

Thrust Wash. .382" I.D. x .70" O.D.

$6.99

$

Usually ships in 3-6 days

0

9

MTD 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

11

MTD 717-1216

11 Tooth Pinion Shaft
(Superseded to 917-1216)

$

$

Not available

12

MTD 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

MTD 721-0212

Oil Seal

$

$

Not available

15

MTD 756-0330A

Fl-Pulley 5.06" O.D.

$

$

Not available

16

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0351

Hex L-Nut 1/4-28 L.H. Thd.
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

MTD 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

19

MTD 736-0344

FI-Wash. .890" I.D. x 1.0"

$4.99

$

In Stock, Qty 20+

0

20

MTD 738-0826

Shld. Bolt .375" Dia. x .40"

$12.99

$

In Stock, only 1 left!

0

21

MTD 756-0558

FI-Idler Plastic 1.50" Dia.
(Superseded to 956-0558)

$11.99

$

In Stock, Qty 5

0

22

MTD 741-0556

Needle Brg. .375" x .31

$17.99

$

In Stock, Qty 5

0

23

UNKNOWN

$

$

Not available

24

MTD 17052A

Idler Brk't. Ass'y.

$

$

Not available

25

MTD 712-0138

Hex Patch L-Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

26

MTD 732-0357

Extension Spring 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

27

MTD 717-0419A

Lower Hsg. Half

$

$

Not available

28

MTD 741-0415

Flange Bearing .566 Dia.
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

MTD 717-0422A

33 Tooth Helical Gear
(Superseded to 717-0616A)

$

$

Not available

30

MTD 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

MTD 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, Qty 12

0

32

MTD 738-0607A

Gear Sprocket Shaft
(Superseded to 717-0616A)

$

$

Not available

33

MTD 736-0722

L-Wash. #10 I.D.

$6.99

$

Usually ships in 3-6 days

0

34

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

MTD 736-0410

Hex Washer .26" x .88"
(Superseded to 936-0410)

$

$

Not available

MTD 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

37

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

38

MTD 734-1517A

Wheel Ass'y. Comp. 8 x 2"
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

39

MTD 736-0105

Bell-Wash. .380" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0588

Hex B-Tap Scr. 1/4-20
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

42

MTD 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

43

MTD 17733

Axle Ass'y.

Variations

MTD 17733-0637

Front Axle Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 17059

Height Adj. Bracket

$

$

Not available

45

MTD 710-0653

Hex TT-Tap Scr. 1/4-20 x .38"

$4.49

$

In Stock, Qty 7

0

46

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

47

MTD 732-0639

Spring Lever

$

$

Not available

48

MTD 731-0865

Plastic Front End
(Superseded to 931-0865C)

$

$

Not available

49

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

50

MTD 782-7522

Belt Cover

Variations

MTD 782-7522-0637

Belt Cover - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0896

Hex Wash. Hd. B-Tap Scr. 1/4 x.62"

Note: (Spec.)

$4.49

$

In Stock, Qty 20+

0

53

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

54

MTD 17058A

Transmission Belt Guard
(Superseded to 17058A-0637)

Variations

MTD 17058A-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 747-0549

S.P. Belt Guard

$

$

Not available

56

MTD 710-1001

Truss B-Tap Scr. 5/16 x .75"
(Superseded to 710-1242)

$4.99

$

In Stock, Qty 19

0

57

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

58

MTD 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

59

MTD 746-0712A

S.P. Cable 44" Lg.

$

$

Not available

60

MTD 736-0222

External L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

61

MTD 741-0180

Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

62

MTD 736-0232

Wave Wash. .53" I.D. x .78"

$4.99

$

In Stock, Qty 12

0
