12097 - Troy-Bilt Mini-Tiller (SN: 120970100101 & Above) POWER RAKE/LAWN AERATOR ATTACHMENTS Parts Diagram

Mini-Tiller

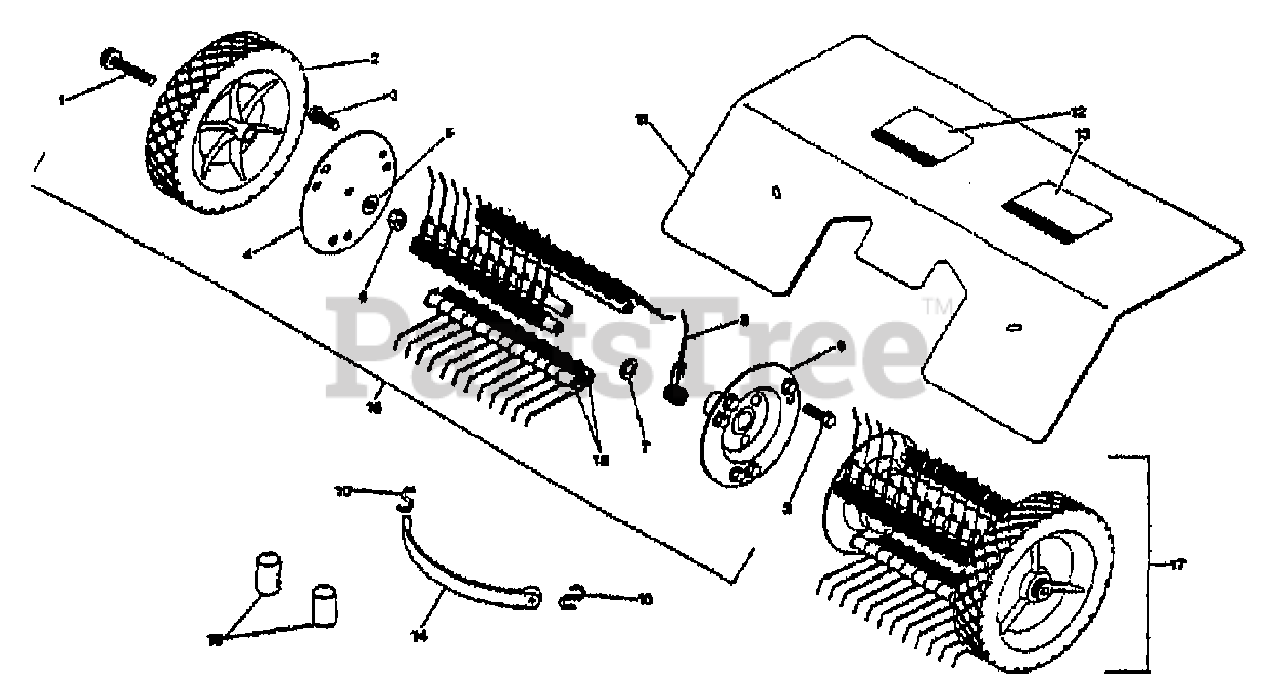

POWER RAKE/LAWN AERATOR ATTACHMENTS Parts Diagram

  • Title

1

Troy-Bilt H213909

BOLT-SC HD 1/2X1 1/2

$

$

Currently unavailable

2

Troy-Bilt H213911

ASSM-WHEEL & TIRE

$

$

Currently unavailable

3

Troy-Bilt H213910

SCR-WHIZ 5/16-18X3/4 LK

$

$

Currently unavailable

4

Troy-Bilt H213907

END CAP-OUTER

$

$

Currently unavailable

5

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt H200830

WASHER-FL 1/2 ID-7/8 OD

$

$

Currently unavailable

8

Troy-Bilt H214174

KIT-SPRING TINE (12 SPRING)

$

$

Currently unavailable

8

Troy-Bilt H214175

KIT-SPRING TINE (36 SPRING)

$

$

Currently unavailable

9

Troy-Bilt H213908

END CAP-INNER

$

$

Currently unavailable

10

Troy-Bilt H214186

S-HOOK (DEBRIS SHIELD)

$

$

Currently unavailable

11

MTD 1915062

ASSM-HOOD W/DECALS

$

$

Not available

12

MTD 1983094

DECAL-CAUTION

$

$

Not available

13

MTD 1983095

DECAL-WARNING

$

$

Not available

14

Troy-Bilt H214187

STRAP-DEBRIS SHIELD

$

$

Currently unavailable

15

Troy-Bilt H213904

BAR-SPRING TINE RETAIN

$

$

Currently unavailable

16

Troy-Bilt H213912

ASSM-DETHATCHER RT

$

$

Currently unavailable

17

Troy-Bilt H213913

ASSM-DETHATCHER LT

$

$

Currently unavailable

18

Troy-Bilt 1983648

SPACER-TINE 1.0X.8X1.31LG

$6.49

$

Usually ships in 3-6 days

0

MTD 1909503

Set Screw, Hex Socket

$

$

Not available
