12090 - Troy-Bilt Horse Rear-Tine Tiller, 8hp, Electric PTO Forward Interlock System Parts Diagram

Horse Rear-Tine Tiller, 8hp, Electric PTO

Forward Interlock System Parts Diagram

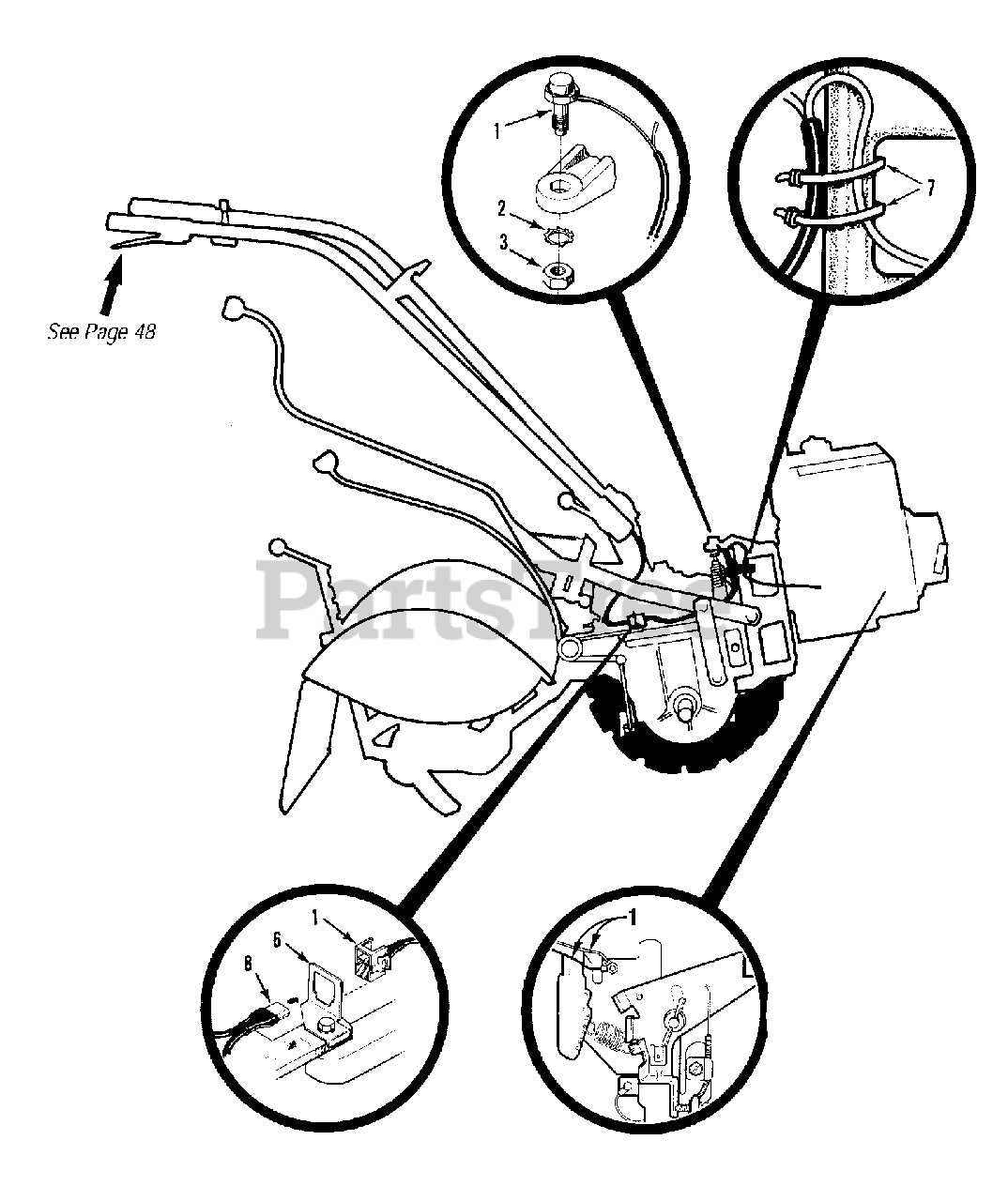

  • Title

1

MTD 2552

Engine Wire Harness Assy-forward interlock system

Note: (Incl. one red and one black wire, plug connector, neutral switch and PVC tubing. Parts not available separately

$

$

Not available

2

Troy-Bilt 9971

Lockwasher-external tooth, 7/16"
(Superseded to GW-9971)

$

$

Not available

3

Troy-Bilt 1186246

Nut-hex, 7/16"-20

$

$

Not available

6

MTD 9205

Clip-for plug connector

$

$

Not available

7

Troy-Bilt 9202

Tie-plastic
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 2551

Handlebar Wire Harness Assy
(Superseded to GW-2551)

Note: (See "Handlebar Assembly" Ref. No. 20 illustration and parts list)

$

$

Not available
