12090 C - Troy-Bilt Horse Rear-Tine Tiller, 7 & 8hp (SN: 120900100101 & Above) WHEEL SPEED LEVER, BELT DRIVE, ENGINE & WHEELS Parts Diagram

Horse Rear-Tine Tiller, 7 & 8hp

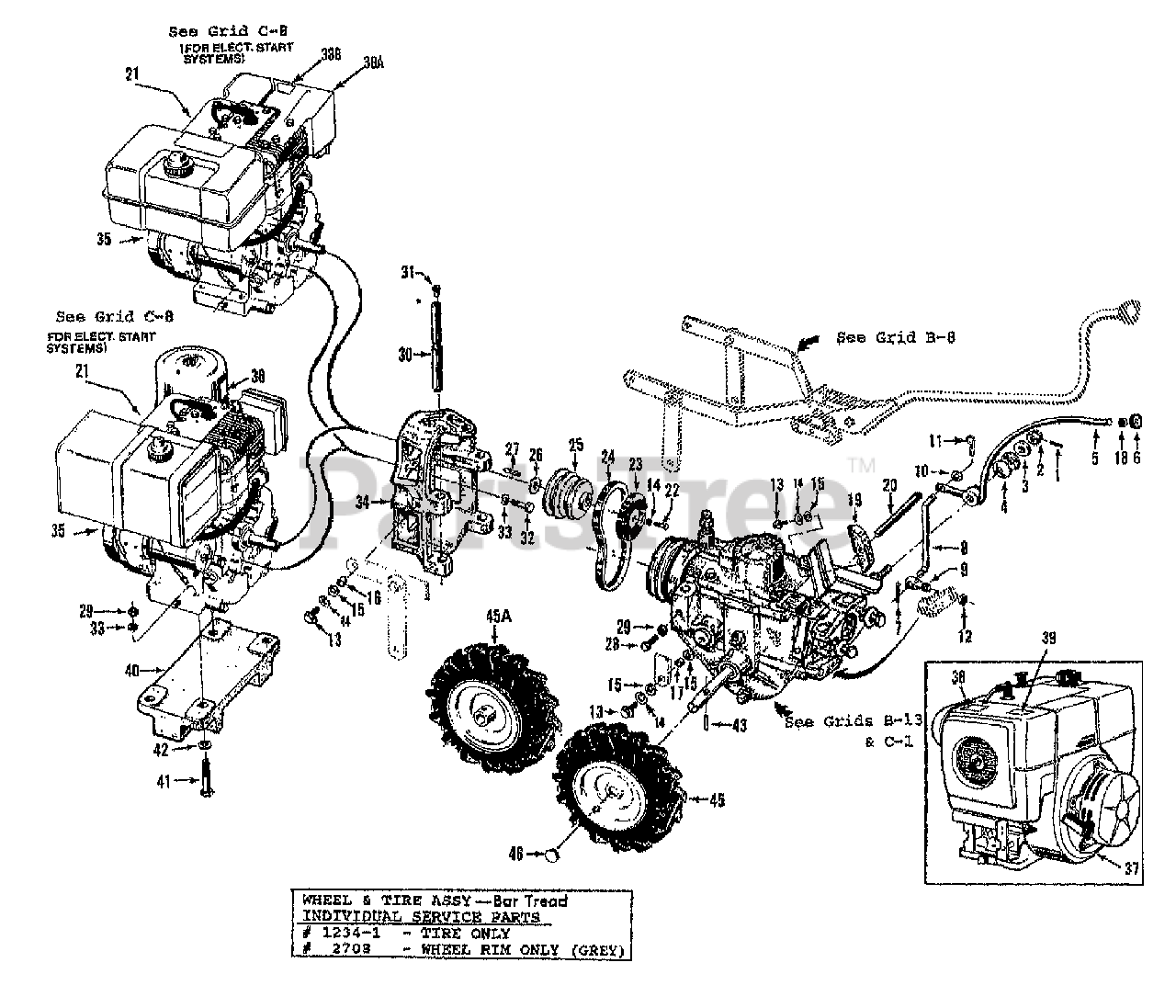

WHEEL SPEED LEVER, BELT DRIVE, ENGINE & WHEELS Parts Diagram

  • Title

1

Troy-Bilt 9362

PIN-SPRING .125 X 1
(Superseded to GW-9362)

$4.49

$

Usually ships in 3-6 days

0

2

MTD 9838

NUT-HEX 1/2-20 (SLOTTED)

$

$

Not available

3

Troy-Bilt 9934

WASHER-# SHOULDER ZP
(Superseded to GW-9934)

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 9932

WASHER-# 1.97X1X.118
(Superseded to GW-9932)

$24.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 2628

LVR-W/KNOB (WHEEL SPEED) (INCL. 6 & 18)
(Superseded to GW-2628)

$142.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1902240

KNOB-WHEEL SPEED HORSE (INCL. 18 & PLASTIC DECAL INLAY)

$23.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 9317

PIN-COTTER .094X1.0
(Superseded to GW-9317)

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1231

ROD-CONNECTING
(Superseded to GW-1231)

$16.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 1033

SWIVEL
(Superseded to GW-1033)

$15.99

$

In Stock, only 1 left!

0

10

Troy-Bilt GW-9902

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

12

Troy-Bilt GW-9808

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

13

Troy-Bilt GW-9710

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

16

0

THIS REF. NO. NOT USED

$

$

Not available

17

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 1920

KIT-ADJ BLOCK 4 SP (INCL. 13, 15 & 20)
(Superseded to GW-1920)

$60.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 2100

BAR-ADJUST, 7" W/MEASURING GAUGE
(Superseded to GW-2100)

$12.99

$

In Stock, only 1 left!

0

21

MTD 1900766

DECAL-STARTING STABIL, B&S

$

$

Not available

22

Troy-Bilt GW-9715

SCR-HH 3/8-24X1.5 G5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

23

Troy-Bilt 1919

KIT-ADJ BLOCK/REV DISC (INCL. 19)
(Superseded to GW-1919)

$104.99

$

In Stock, Qty 16

0

23

Troy-Bilt GW-2111

DISC ONLY - REVERSE, RUBBER RIMMED
(Superseded to 756-04171)

$67.99

$

In Stock, Qty 14

0

24

Troy-Bilt 9245

BELT-FORWARD DRIVE
(Superseded to GW-9245)

$23.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 1483

PULLEY-ENG MACH
(Superseded to 619-04124)

$153.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 9303

KEY-.188 SQ X 2.33
(Superseded to GW-9303)

$3.99

$

In Stock, Qty 10

0

28

Troy-Bilt GW-90008

BOLT-HEX HD., 5/16-18x1", GR 5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt GW-1034

BAR-ENG MTG W/CAP PLUG
(Superseded to GW-1034A)

$46.99

$

In Stock, Qty 5

0

31

Troy-Bilt 9147

PLUG-CAP (RED)
(Superseded to GW-9147)

$8.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 9572

BOLT-HH 5/16-24X1.125 G5 ZP
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

33

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 2565

MOUNT-MOTOR HSE OPC PNT
(Superseded to 719-04222-0637)

$312.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt GW-12068

TILLER-7HP STD HORSE

$

$

Currently unavailable

35

Troy-Bilt GW-12069

TILLER-7HP EL HORSE

$

$

Currently unavailable

37

Troy-Bilt GW-12070

TILLER-8HP STD PRO HORSE

$

$

Currently unavailable

37

Troy-Bilt GW-12071

TILLER-8HP EL PRO HORSE

$

$

Currently unavailable

35

Troy-Bilt GW-12074

TLR-HORSE 8HP STD B&S

$

$

Currently unavailable

35

Troy-Bilt GW-12075

TILLER-8HP EL HORSE B&S

$

$

Currently unavailable

35

Troy-Bilt GW-12080

OBS-HORSE 7HP STD CA

$

$

Currently unavailable

35

Troy-Bilt GW-12081

OBS-HORSE 7HP ELC CA

$

$

Currently unavailable

37

Troy-Bilt GW-12082

OBS-HORSE 8HP STD CA

$

$

Currently unavailable

37

Troy-Bilt GW-12083

OBS-HORSE 8HP ELC CA

$

$

Currently unavailable

37

MTD 12087

TILLER-7HP T/B STD HORSE

$

$

Not available

37

Troy-Bilt GW-12088

TILLER-7HP T/B ELEC HORSE

$

$

Currently unavailable

35

Troy-Bilt GW-12089

TILLER-8 T/B STD HORSE I/P B&S

$

$

Currently unavailable

35

Troy-Bilt GW-12090

TILLER-8HP T/B EL HORSE B&S I/P

$

$

Currently unavailable

38

MTD GW-55053

DECAL-HOT SURFACE

$

$

Not available

38A

MTD 1909064001

GUARD-MUFFLER

$

$

Not available

38B

MTD 1902750

DECAL-HOT SURFACE

$

$

Not available

39

MTD 1900767

DECAL-STABIL STARTING

$

$

Not available

40

MTD 2522

WEIGHT-ENG ECONO PNT

$

$

Not available

41

Troy-Bilt GW-9966

SCR-HH 5/16-18X2.25 G5ZP
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 20553

SPACER-.88X.385X.09 ZP
(Superseded to GW-20553)

$

$

Not available

43

Troy-Bilt 9322

PIN-SPIROL .313 X 1.5
(Superseded to GW-9322099)

$7.99

$

In Stock, Qty 11

0

45

MTD 2709-01

ASSM-TIRE&WHEEL LH GRAY

$

$

Not available

45A

MTD 2709-02

ASSM-TIRE&WHEEL RH GRAY

$

$

Not available

46

Troy-Bilt 1902020

CAP-HUB BLK PLASTIC (REPLACES 9145)

$

$

Not available

Troy-Bilt GW-1234-1

TIRE-BTT 4.80/4.00X8.00 (TIRE ONLY)
(Superseded to 734-0808A)

$123.99

$

Usually ships in 3-6 days

0

MTD GW-2708

RIM-WHEEL 8" GRAY (WHEEL RIM ONLY)

$

$

Not available
