12089 C - Troy-Bilt Horse Rear-Tine Tiller (SN: 120890100101 & Above) HANDLE BAR ASSEMBLY Parts Diagram

Horse Rear-Tine Tiller

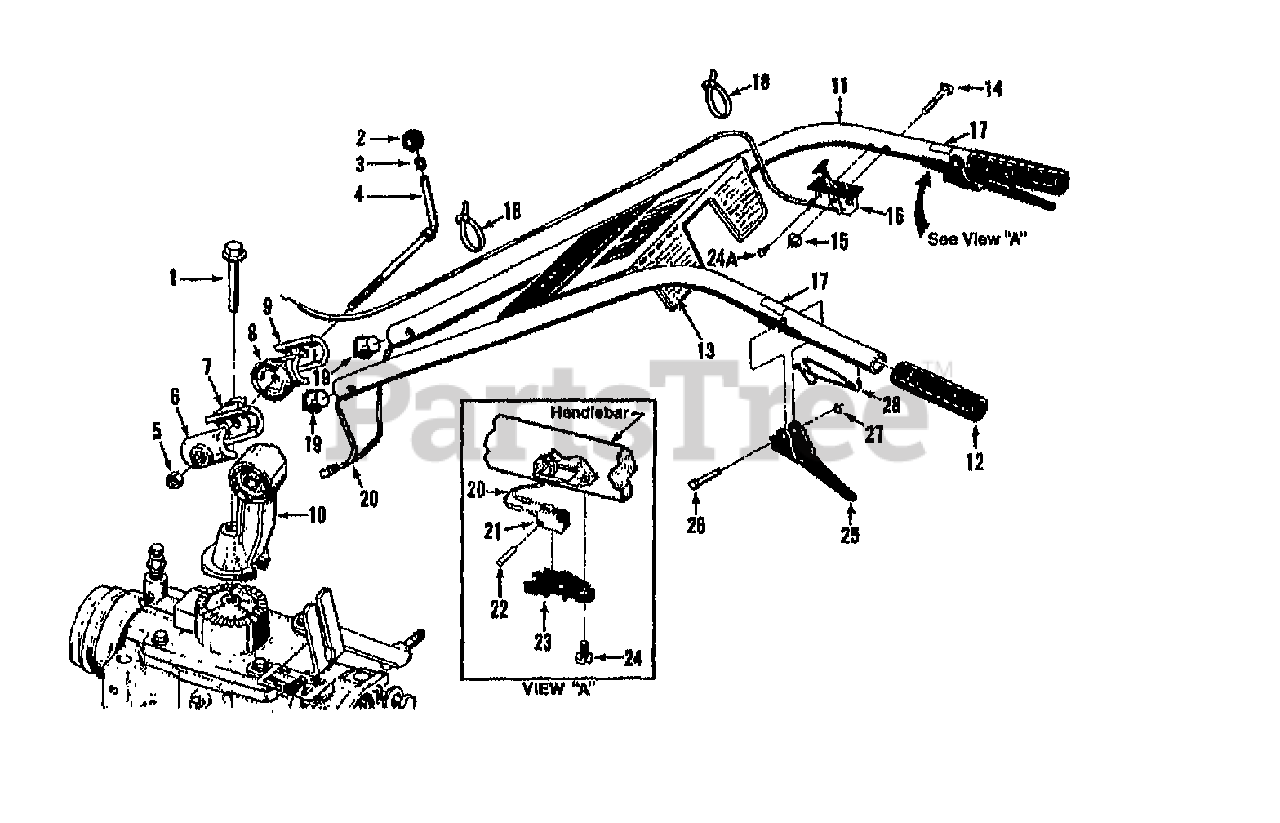

HANDLE BAR ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 9548

BOLT 1/2-13X3.5 FH GR5
(Superseded to GW-9548)

$14.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9119

KNOB-CONTROL (INCL. 3)
(Superseded to GW-9119)

$11.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 1881

STUD-H/BAR W/NUT & RING (INCL. 2,3 & 5)
(Superseded to GW-1881)

$62.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-9803

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1900854010

CLAMP-LH HORSE 1021-1

$36.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1900856010

RATCHET-H/BAR RED 2542-1

$42.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1900857010

RATCHET-RH RED HORSE 2542-2

$49.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1900855010

CLAMP-RH HORSE 1021-2

$38.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1900858010

BASE-H/BAR RED 2534A

$125.99

$

In Stock, only 1 left!

0

11

MTD 2704

ASSM-HANDLEBAR W/GRIPS (INCL. 2 OF EA. 12, 17 & 28 AND ONE 13)

$

$

Not available

12

Troy-Bilt 9125

GRIP-H/BAR SMOOTH
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

13

MTD 2715

DECAL-CONTROL PANEL HORSE

$

$

Not available

13

MTD 1904146

DECAL-CONTROL PANEL (11HP)

$

$

Not available

14

Troy-Bilt 9547

BOLT-CH 1/4-20X2.00 ZP
(Superseded to GW-9547)

$

$

Not available

15

Troy-Bilt GW-9844

NUT-HF/LK 1/4-20 ZP
(Superseded to 1186389)

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 9444

CABLE-THROTTLE 7 I/C B&S {12068/069/080/081/087}
(Superseded to GW-9444P)

$85.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1909286

CABLE-THROTTLE 7&8 B&S {12074/075/088/089/090}
(Superseded to 1909286P)

$73.99

$

In Stock, only 1 left!

0

16

MTD 9650

CABLE-THROTTLE 8HP OPC {12070/071/082/083}

$

$

Not available

17

MTD 1900763

DECAL-FWD INTERLOCK

$

$

Not available

18

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 9219

RETAINER-HARNESS H/B OPC
(Superseded to GW-9219)

$10.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 2551

HARNESS-WIRE OPC HORSE
(Superseded to GW-2551)

$

$

Not available

21

Troy-Bilt 9250

SWITCH-H/B OPC
(Superseded to 725-05005)

$30.99

$

Usually ships in 3-6 days

0

22

MTD 9385

PIN-LK .11X.58 HORSE OPC

$

$

Not available

23

Troy-Bilt 2543

HOUSING-SWITCH OPC
(Superseded to 625-04097)

$72.99

$

In Stock, only 1 left!

0

24

MTD 90039

SCR-HW M10-24X.5 STH ZP

$

$

Not available

24A

Troy-Bilt 9733

SCR-PHS M10-32X.5 STH ZP
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

25

Troy-Bilt 2546

LEVER-HORSE OPC
(Superseded to 786-04003-0638)

$28.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 9199

PIN-PIVOT OPC LEVER
(Superseded to GW-9199)

$6.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 9514

RING-KLIP 5304-25
(Superseded to GW-9514)

$6.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 9387

SPRING-H/B LEVER
(Superseded to 732-04864A)

$6.99

$

In Stock, only 3 left!

0
