12089 (21A-550-081) - Troy-Bilt Horse Rear-Tine Tiller Kickstand Attachment & Tine Attachment Cradle Parts Diagram

Horse Rear-Tine Tiller

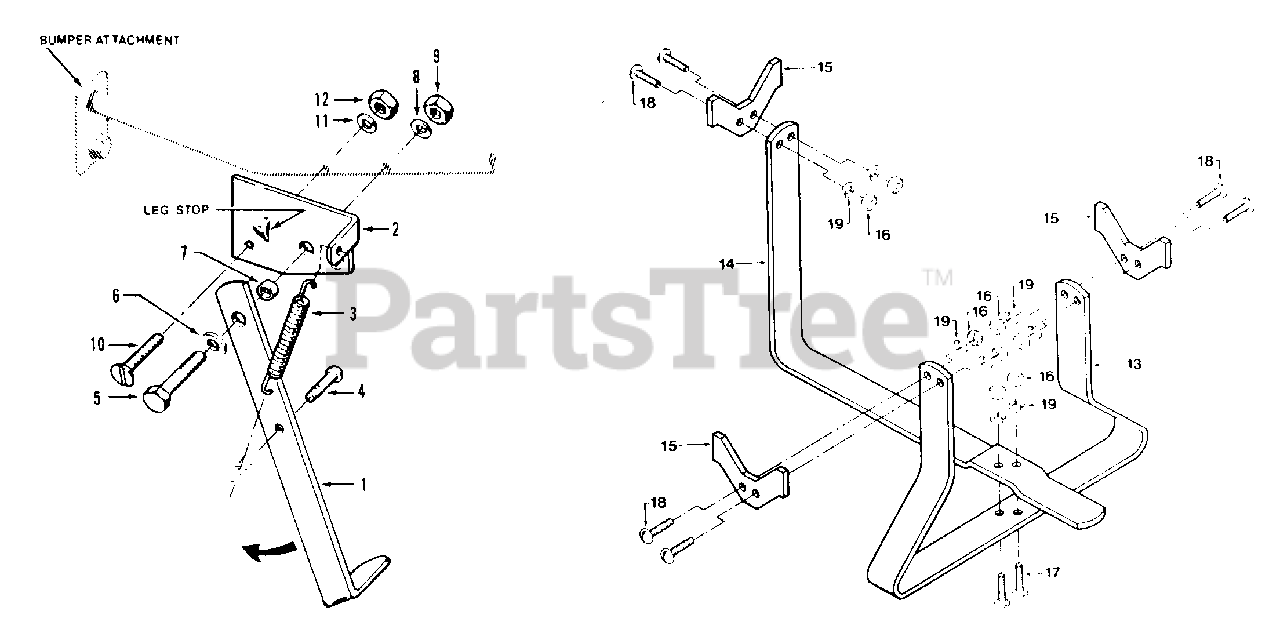

Kickstand Attachment & Tine Attachment Cradle Parts Diagram

  • Title

Troy-Bilt 12580

Kickstand-complete

Note: (Incl. Ref. No.'s 1 through 12). Kickstand attaches to lower brace of bumper attachment (1932).

$

$

Currently unavailable

1

Troy-Bilt 1904520001

Leg-kickstand

$

$

Currently unavailable

2

Troy-Bilt 1904521001

Plate-kickstand mounting

$

$

Currently unavailable

3

Troy-Bilt 1492

Spring-kickstand
(Superseded to GW-1492099)

$10.99

$

In Stock, only 3 left!

0

4

MTD 9336

Pin-clevis

$

$

Not available

5

MTD 1111606

Bolt-hex hd., 5/1 6-18 x 2", Grade 5

$

$

Not available

6

Troy-Bilt 9902

Washer-flat, 5/16", S.A.E

$

$

Currently unavailable

7

MTD 9473

Bushing-.438" lg. (.313" O.D., .275" I.D.)

$

$

Not available

8

Troy-Bilt 1100242

Lockwasher-spring lock, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186230

Nut-hex, 5/16"-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 9567

Screw-flat hd., 1/4"-20 x 1-1/2"

$

$

Not available

11

Troy-Bilt 1100241

Lockwasher-spring lock, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 1186229

Nut-hex, 1/4"-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

Troy-Bilt 12583

Tine Attachment Cradle-complete

Note: (Incl. Ref. No.'s 13 - 19). For storing the tine attachment when removed from power unit. Also assists in removal and replacement of tine attachment.

$

$

Currently unavailable

13

Troy-Bilt 1900894001

Rear Cradle Support

$

$

Currently unavailable

14

Troy-Bilt 1900893001

Front Cradle Support

$

$

Currently unavailable

15

Troy-Bilt 1900895001

Tine Cradle Plate

$

$

Currently unavailable

16

Troy-Bilt 1186229

Nut-hex, 1/4"-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

17

MTD 9580

Screw-hex hd., 1/4-20 x 3/4"

$

$

Not available

18

Troy-Bilt 1100805

Screw-round-head, 1/4-20 x 3/4"
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 1100241

Lockwasher-spring lock, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
