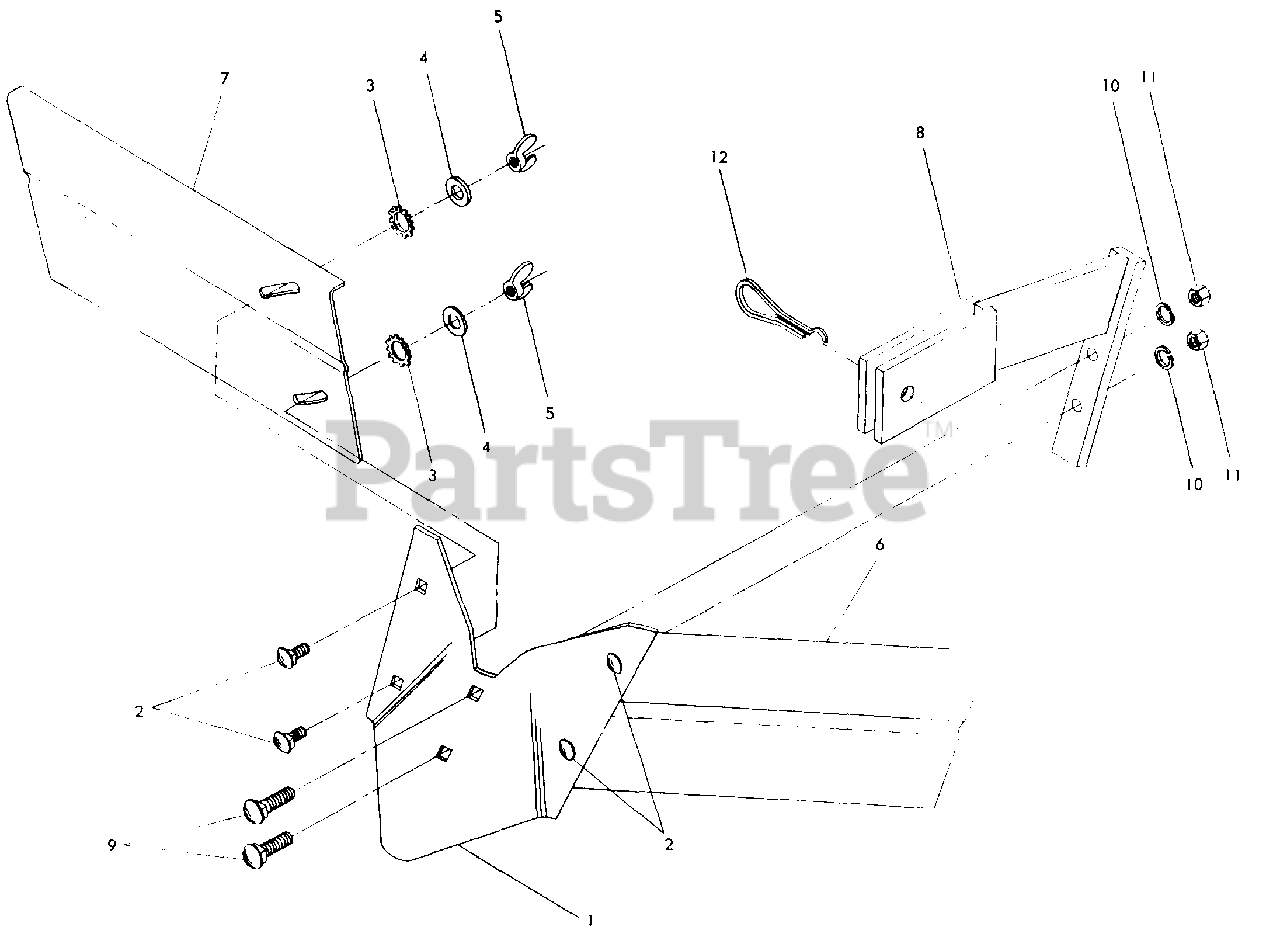

12089 (21A-550-081) - Troy-Bilt Horse Rear-Tine Tiller Hiller/Furrower Attachment Parts Diagram

Horse Rear-Tine Tiller

Hiller/Furrower Attachment Parts Diagram

  • Title

MTD 12578

Hiller/Furrower-complete

Note: (Incl. Ref. No.'s 1 through 12). Owner must bolt blade to mounting bracket and wings to blade. Instructions included.

$

$

Not available

1

Troy-Bilt 1900771001

Furrower-blade only

$69.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1186098

Carriage Bolt-5/16-18 x 3/4"

$

$

Not available

3

Troy-Bilt 1177548

Star Washer-ext. tooth, 5/16"
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 9902

Washer-plain, 5/16" S.A.E

$

$

Currently unavailable

5

Troy-Bilt 9824

Wing Nut-5/16"-18
(Superseded to GW-9824)

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1900777001

Hiller Wing-left

$51.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1900778001

Hiller Wing-right

$80.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1900772001

Bracket-blade mounting
(Superseded to GW-2636)

$188.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9725

Carriage Bolt-blade mounting, 3/8-16 x 1-1/2"
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1100243

Lockwasher - spring lock, 3/8" plated
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1186231

Nut-hex, 3/8"-16, plated
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

12

MTD 9318

Pin-clinch

$

$

Not available
