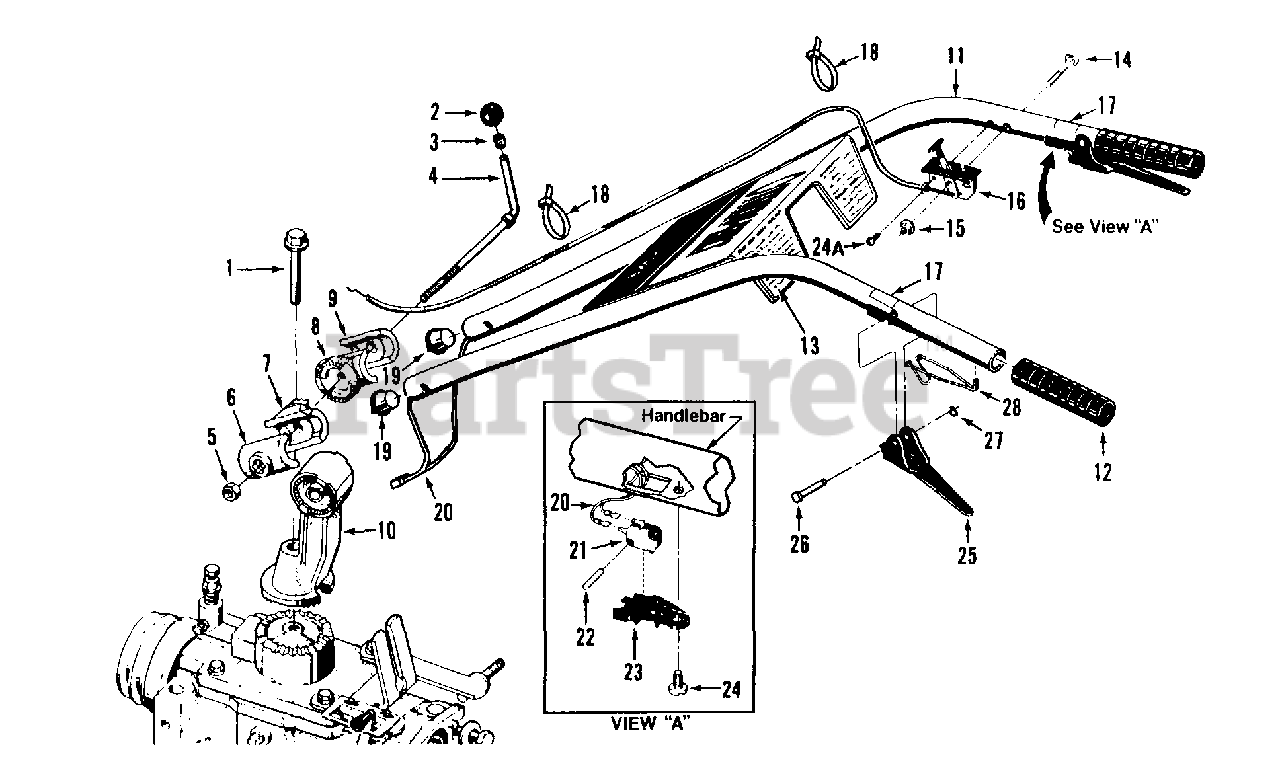

12089 (21A-550-081) - Troy-Bilt Horse Rear-Tine Tiller Handlebar Assembly Parts Diagram

Horse Rear-Tine Tiller

Handlebar Assembly Parts Diagram

  • Title

1

Troy-Bilt 9548

Bolt-Hex hd., flanged self-locking Grade 5, 1/2-13 x 3-1/2"
(Superseded to GW-9548)

$14.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9119

Knob-handlebar height adjustment
(Superseded to GW-9119)

Note: (Incl. Ref. No. 3)

$11.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 9120

Ring-retaining
(Superseded to GW-9120)

Note: (Tolerance ring)

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 1881

Stud-handlebar height adjustment
(Superseded to GW-1881)

Note: (Incl. Ref. No.'s 2, 3 and 5)

$62.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1186233

Nut-hex, 1/2"-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1900854010

Clamp-left, handlebar height adjustment

$36.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1900856010

Ratchet-left, handlebar height adjustment

$42.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1900857010

Ratchet-right, handlebar height adjustment

$49.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1900855010

Clamp-right, handlebar height adjustment

$38.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1900858010

Base-handlebar mounting

$125.99

$

In Stock, only 1 left!

0

11

MTD 2704

Handlebars

Note: (Includes two of each Ref. Nos. 12, 17 and 28 and one Ref. No.13)

$

$

Not available

12

Troy-Bilt 9125

Grip-handlebars
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

13

MTD 2715

Decal-operator control panel

$

$

Not available

14

Troy-Bilt 9547

Bolt-curved hd, GR5, 1/4-20 x 2"
(Superseded to GW-9547)

$

$

Not available

15

Troy-Bilt 1186389

Nut-hex, flanged self-locking, whiz lock, 1/4"-20

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 9444

Throttle Control & Cable - 7HP Briggs & Stratton engine only
(Superseded to GW-9444P)

Note: (Also see Ref. No. 24A)

$85.99

$

Usually ships in 3-6 days

0

?16A

Troy-Bilt 1909286

Throttle Control & Cable - 8HP Briggs & Stratton engine only
(Superseded to 1909286P)

Note: (Also see Ref. No. 24A)

$73.99

$

In Stock, only 1 left!

0

?16B

MTD 9650

Throttle Control & Cable - 8HP Kohler engine only

$

$

Not available

17

MTD 1900763

Decal-Forward Interlock Lever

$

$

Not available

18

Troy-Bilt 9202

Tie-plastic
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 9219

Plug-wire harness retainer
(Superseded to GW-9219)

$10.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 2551

Handlebar Wire Harness Assy-forward interlock system
(Superseded to GW-2551)

$

$

Not available

21

Troy-Bilt 9250

Handlebar Switch-forward interlock system
(Superseded to 725-05005)

$30.99

$

Usually ships in 3-6 days

0

22

MTD 9385

Lock Pin-handlebar switch

$

$

Not available

23

Troy-Bilt 2543

Switch Housing-handlebar switch
(Superseded to 625-04097)

$72.99

$

In Stock, only 1 left!

0

24

MTD 90039

Screw-pan head, 10-24 x 1/2" thread-forming

$

$

Not available

24A

Troy-Bilt 9733

Screw-phillips head, 10-32 x 1/2" thread-forming
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

25

Troy-Bilt 2546

Lever-forward interlock
(Superseded to 786-04003-0638)

$28.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 9199

Pivot Pin-forward interlock lever
(Superseded to GW-9199)

$6.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 9514

Retaining Ring-klip ring-forward interlock lever
(Superseded to GW-9514)

$6.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 9387

Return Spring - fwd interlock lever
(Superseded to 732-04864A)

$6.99

$

In Stock, only 3 left!

0
