12089 (21A-550-081) - Troy-Bilt Horse Rear-Tine Tiller Electric Start System Parts Diagram

Horse Rear-Tine Tiller

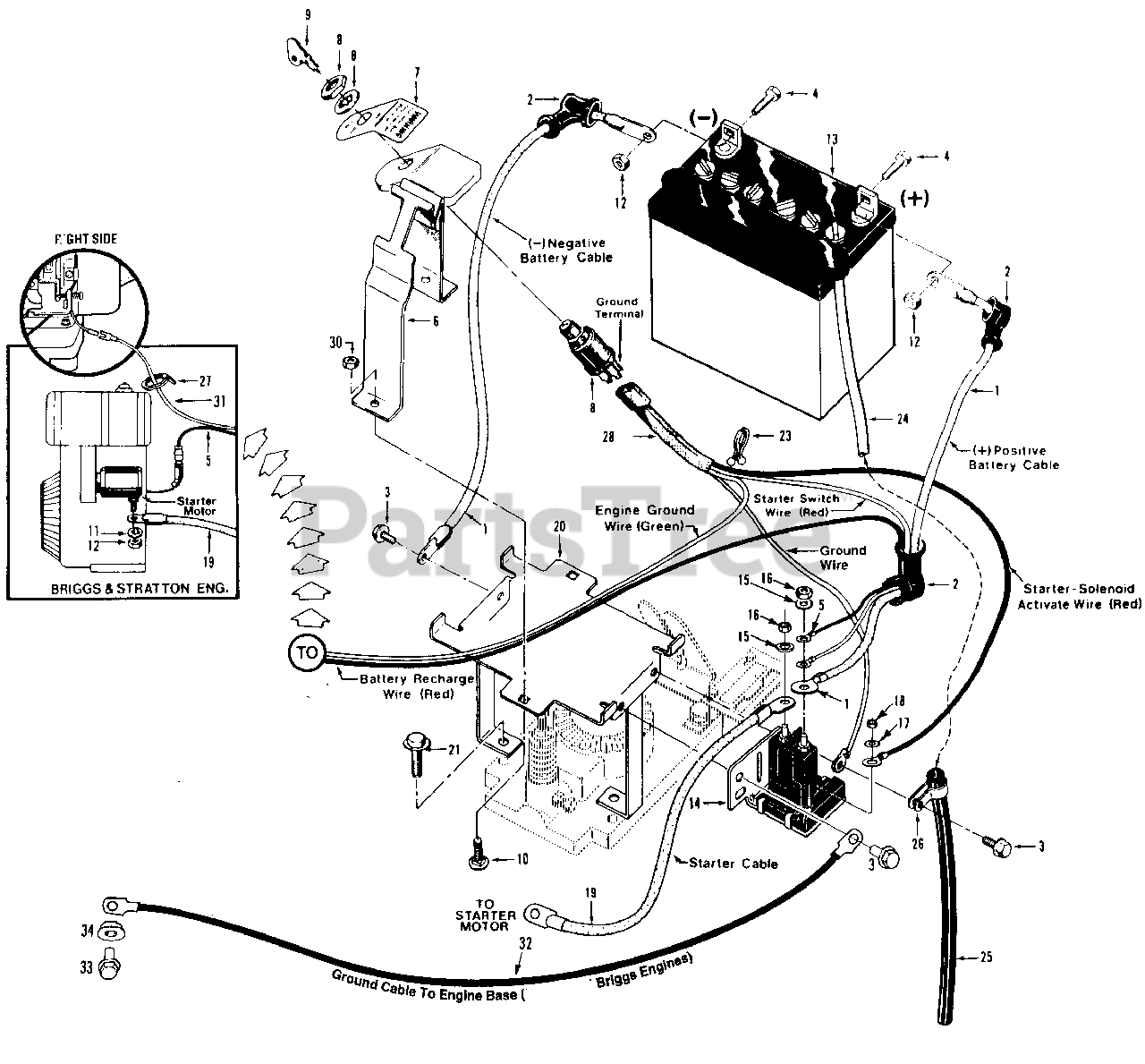

Electric Start System Parts Diagram

  • Title

1

Troy-Bilt 96515

Cable-battery, positive and negative terminals
(Superseded to GW-96515)

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 97020

Boot-terminal insulating
(Superseded to GW-97020)

$

$

Not available

3

Troy-Bilt 9552

Screw-self-threading, 1/4-20 x 1/2"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1186309

Bolt-hex hd., 1/4-20 x 5/8"

$

$

Not available

5

Troy-Bilt 1901894

Wire-recharge (red) for Briggs and Stratton engine

Note: (Incl. terminal and eyelet)

$

$

Not available

6

Troy-Bilt 1904564

Battery Hold-down Clamp-with attached Key Switch Plate
(Superseded to 1900873)

Note: (Incl. Ref. No. 7)

$162.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1904548

Decal-ignition switch instruc
(Superseded to 777S30648)

$4.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1908112

Key Switch
(Superseded to 925-0267B)

Note: Includes two ignition keys (Ref. No. 9), one lockwasher, and one mounting nut (lock-washer and nut not available separately).

$35.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 96520

Key-ignition, one pair
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 1186073

Bolt-carriage, 1/4-20 x 1-1/4"

$2.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 1100241

Lockwasher-spring lock, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

12

Troy-Bilt 1186229

Nut-hex, 1/4"-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

13

Troy-Bilt 9092B

Battery-12 volt, 30 amps., side-vented.

Note: (Incl. Ref. No. 24)

$

$

Currently unavailable

14

Troy-Bilt 96514

Solenoid-starter
(Superseded to GW-96514099)

Note: Includes nuts and washers for cables and wires

$48.99

$

In Stock, Qty 5

0

15

Troy-Bilt 1100242

Lockwasher-5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1186211

Nut-hex, 5/16"-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

17

MTD 1187559

Lockwasher-external tooth, #10

$

$

Not available

18

Troy-Bilt 1186208

Nut-hex, #10-32,

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 96510

Cable-solenoid to starter motor
(Superseded to GW-96510)

$11.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 2571

Battery Bracket
(Superseded to GW-2571)

$129.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 1186349

Bolt-flanged hex hd., 3/8-16 x 1-1/2"

$3.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 9265

Tie-plastic, wire retaining
(Superseded to GW-9265)

$

$

Not available

24

MTD 9009

Vent Tube-5/16" diameter

$

$

Not available

25

MTD 1475

Shield-vent tube, 1/2" diameter

$

$

Not available

26

MTD 9224

Clamp-vent tube shield

$

$

Not available

27

Troy-Bilt 9202

Tie-plastic
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

28

MTD 1904561

Wire Harness & Connecting Terminal Assy For Briggs & Stratton engines

Note: (Available as complete assembly only).

$

$

Not available

30

Troy-Bilt 1186389

Locknut-hex, 1/4"-20

$3.49

$

Usually ships in 3-6 days

0

31

MTD 20421

Wire-ground

$

$

Not available

32

Troy-Bilt 1901202

Cable-ground, solenoid to engine block

$34.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 1186331

Bolt-flange lock, 5/16-18 x 1"
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

34

Troy-Bilt 1186391

Nut-flange lock, 5/16"-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0
