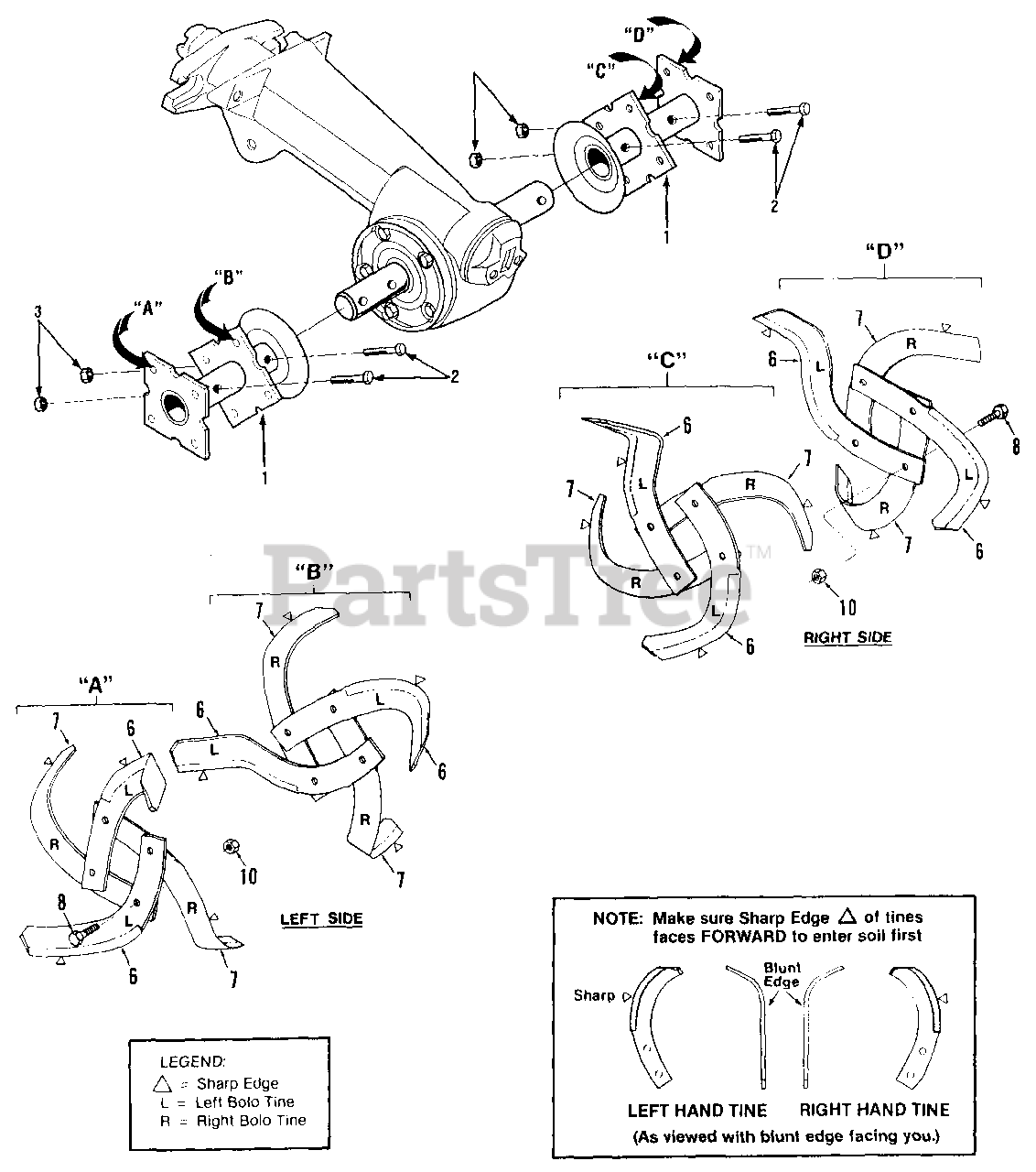

12089 (21A-550-081) - Troy-Bilt Horse Rear-Tine Tiller Bolo Tine Assemblies Parts Diagram

Horse Rear-Tine Tiller

Bolo Tine Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1901975010

Tine Holder-welded steel, fits left or right sides
(Superseded to 686-04068-0637)

$107.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1982612

Bolt-hex hd., 3/8-16 x 2"
(Superseded to 710-3096)

$7.99

$

In Stock, only 1 left!

0

3

UNKNOWN

$

$

Not available

6

Troy-Bilt 1270-1A

Bolo Tine-single, left hand.
(Superseded to 742-04119-0637)

Note: Used on left and right side tine assy. Tine is stamped either "EL" or "AL". (Incl. two each of Ref. No.'s 8 and 10)

$

$

Not available

7

Troy-Bilt 1270-2A

Bolo Tine-single, right hand.
(Superseded to 742-04118-0637)

Note: Used on left and right side tine assy. Tine is stamped either "ER" or "AR". (Incl. same hardware as Ref. No. 6)

$

$

Not available

8

Troy-Bilt 1100046

Bolt-hex hd., 3/8-16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1733398

Locknut-hex, 3/8"-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

Troy-Bilt 1901118

Tine Replacement Kit-unassembled
(Superseded to 1901118A)

Note: (Incl. eight each of Ref. No.'s 6, and 7, sixteen each of Ref. No.'s 8 and 10). Includes easy-to-follow installation instruction. DOES NOT INCLUDE tine holders, holder mounting hardware, or tine shaft keys.

$

$

Not available

Troy-Bilt 10802

Custom Tilling Tine Kit
(Superseded to GW-10802)

Note: (Incl. eight each of Part #2475-1 and #2475-2 tines and sixteen each of Ref. No.'s 8 and 10.

$

$

Not available

Troy-Bilt 2475-1

Bolo Tine, Custom Tilling-single, left hand
(Superseded to GW-2475-1001)

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt 2475-2

Bolo Tine, Custom Tilling-single, right hand
(Superseded to GW-2475-2001)

$58.99

$

In Stock, only 1 left!

0
