12089 (21A-550-081) - Troy-Bilt Horse Rear-Tine Tiller 12584 Dozer/Snow Blade Attachment Parts Diagram

Horse Rear-Tine Tiller

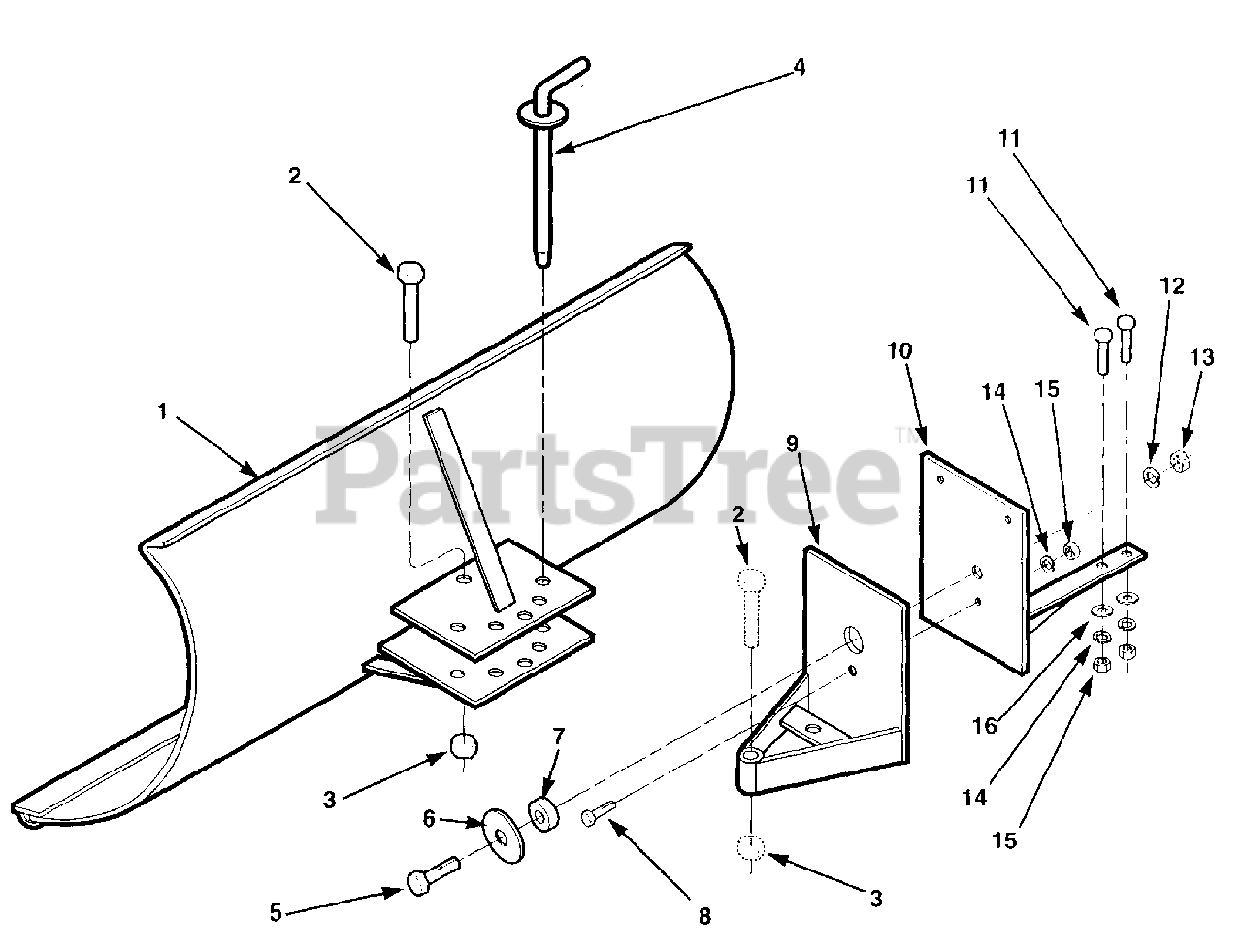

12584 Dozer/Snow Blade Attachment Parts Diagram

  • Title

MTD 12584

Dozer/Snow Blade Kit

Note: (Incl. Ref. No.'s 1 through 16)

$

$

Not available

1

Troy-Bilt 1900780001

Blade - dozer/snow blade

$

$

Currently unavailable

2

Troy-Bilt 1100057

Bolt - hex hd., 1/2-13 x 3"
(Superseded to 710-0182A)

$7.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1110110

Locknut - hex, 1/2"-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 1900781001

Pin - index, blade angle adjust

$

$

Currently unavailable

5

Troy-Bilt 1100064

Bolt - hex hd,, 1/2-13 x 1-1/2"
(Superseded to 710-3181)

$6.99

$

Usually ships in 3-6 days

0

6

MTD 9905

Washer - plain, 1/2"

$

$

Not available

7

MTD 1416

Bushing

$

$

Not available

8

MTD 1100808

Bolt - hex hd., 5/16-18 x 1-1/4"

$

$

Not available

9

MTD 1909773001

Bracket - swivel ("A" frame)

$

$

Not available

10

MTD 1909774001

Bracket - dozer mounting

$

$

Not available

11

Troy-Bilt 1100779

Bolt - hex hd., 5/16-18 x 1-3/4"
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1100245

Lockwasher - spring lock, 1/2"
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 1186233

Nut - hex, 1/2"-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1100242

Lockwasher - spring lock 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1186230

Nut - hex, 5/16" x 18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 9902

Washer - plain, 5/16", S.A.E.

$

$

Currently unavailable
