12087 C - Troy-Bilt Horse Rear-Tine Tiller (SN: 120870100101 & Above) TINE ASSEMBLIES Parts Diagram

Horse Rear-Tine Tiller

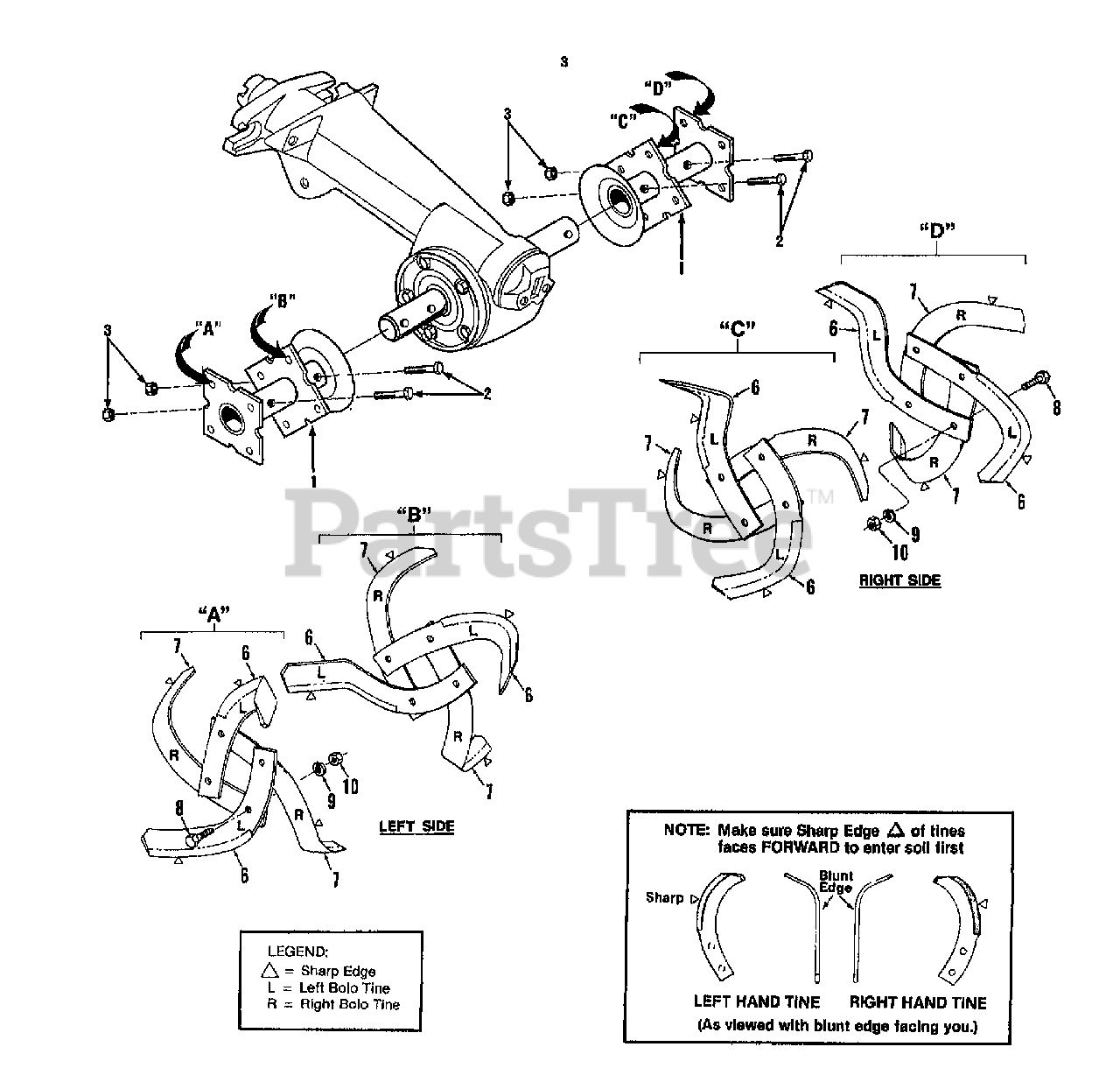

TINE ASSEMBLIES Parts Diagram

  • Title

1

Troy-Bilt 1901975010

HOLDER-TINE HORSE (RED)
(Superseded to 686-04068-0637)

$107.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-9761

SCR-HH 3/8-16X2.00 G8
(Superseded to 710-3096)

$7.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt GW-9807

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

6

Troy-Bilt 1270-1A

TINE-BOLO LT W/HDW(INCL. TWO EACH OF REF. NO.'S 8,9 AND 10)
(Superseded to 742-04119-0637)

$

$

Not available

7

Troy-Bilt 1270-2A

TINE-BOLO RT W/HDW(INCL. SAME HARDWARE AS REF. NO.6)
(Superseded to 742-04118-0637)

$

$

Not available

8

Troy-Bilt GW-9711

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-9802

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1901118

TINES-BOLO HORSE/PONY/ECONO
(Superseded to 1901118A)

$

$

Not available

Troy-Bilt 10802

TINES-CUSTOM TILLING
(Superseded to GW-10802)

$

$

Not available

Troy-Bilt 2475-1

TINE-HARD FACED LT
(Superseded to GW-2475-1001)

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt 2475-2

TINE-HARD FACED RT
(Superseded to GW-2475-2001)

$58.99

$

In Stock, only 1 left!

0

Troy-Bilt GW-9807

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0
