12087 C - Troy-Bilt Horse Rear-Tine Tiller (SN: 120870100101 & Above) FORWARD INTERLOCK SYSTEM Parts Diagram

Horse Rear-Tine Tiller

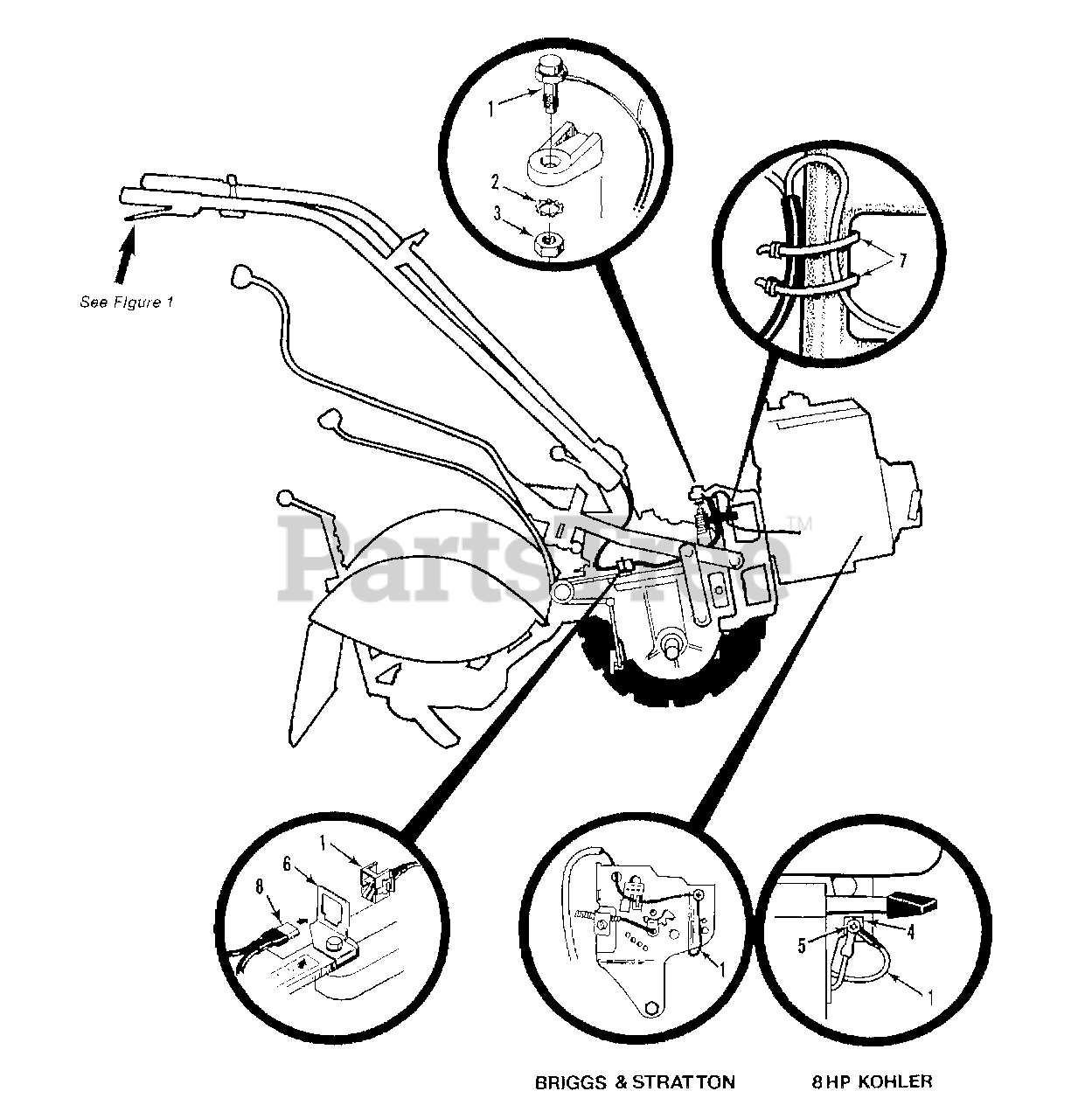

FORWARD INTERLOCK SYSTEM Parts Diagram

  • Title
1

MTD 2552

HARNESS-WIRE ENG OPC

$

$

Not available

2

Troy-Bilt 9971

WASHER-LK .438 EXT TOOTH
(Superseded to GW-9971)

$

$

Not available

3

Troy-Bilt GW-9851

NUT-HEX/JAM 7/16-20
(Superseded to 1186246)

$

$

Not available

4

Troy-Bilt GW-ET69-12

GROMMET-7 T/L & 8 KOH OPC

$

$

Currently unavailable

5

Troy-Bilt GW-ET42-447

SCR #8-18 SELF TAP

$

$

Currently unavailable

6

MTD 9205

CLIP-CONNECTOR

$

$

Not available

7

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 2551

HARNESS-WIRE OPC HORSE
(Superseded to GW-2551)

$

$

Not available
