12086 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 120860100101 & Above) FORWARD/REVERSE IDLER ASSEMBLY Parts Diagram

Econo-Horse Rear-Tine Tiller

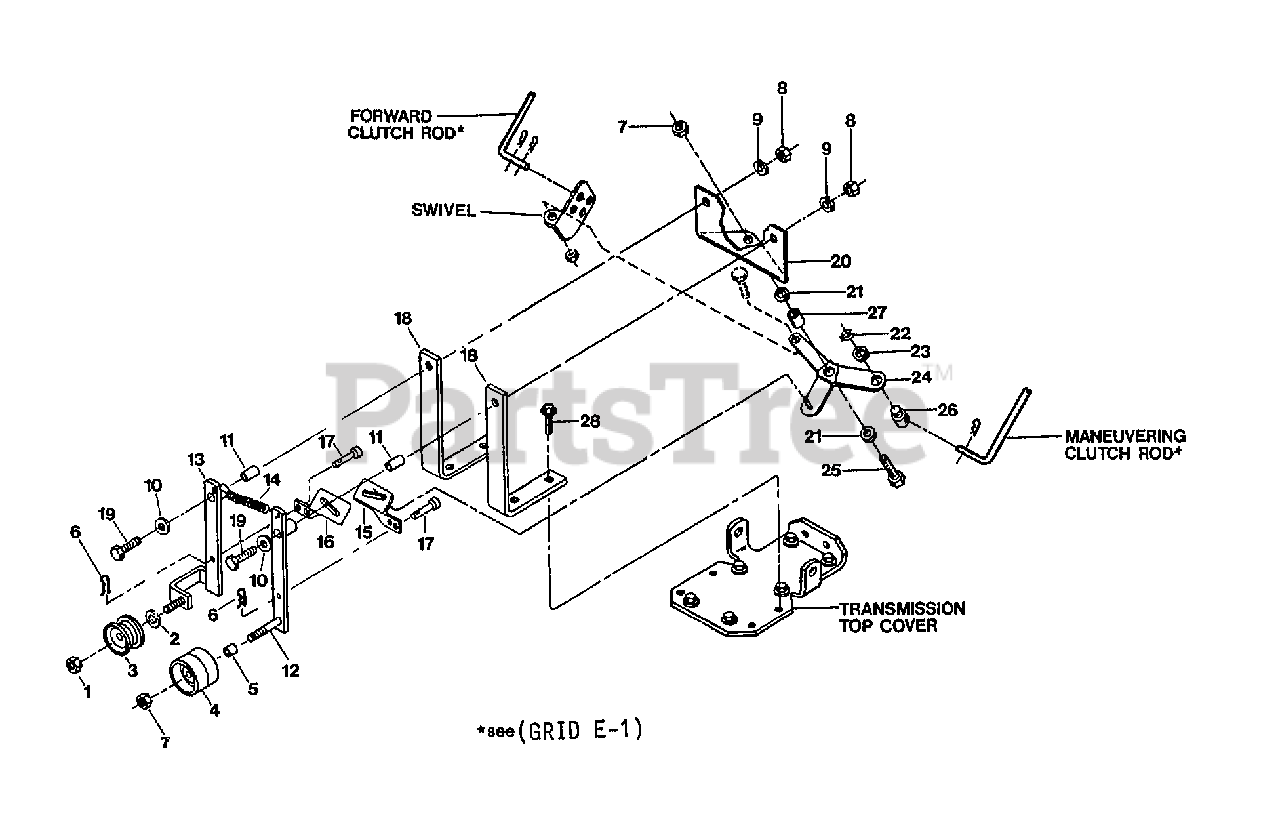

FORWARD/REVERSE IDLER ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

2

Troy-Bilt 20513

BUSHING-.54X.38X.08

$

$

Currently unavailable

3

Troy-Bilt 9460

IDLER-REV

$

$

Currently unavailable

3

Troy-Bilt 1909266

PULLEY-IDLER REVERSE
(Superseded to 756-0199)

$25.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 9193

PULLEY-FWD IDLER

$

$

Currently unavailable

5

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

7

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

8

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

9

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

10

MTD 20545

WASHER-#.75X.32X.09 ZP

$

$

Not available

11

MTD 9479

BUSHING-.438X.323X.712

$

$

Not available

12

MTD 20899

ARM-IDLER FWD PNT

$

$

Not available

13

Troy-Bilt 20760

IDLER-REV

$

$

Currently unavailable

13

Troy-Bilt 1909264010

IDLER-REV
(Superseded to 1902818)

$

$

Not available

13

MTD 1909682010

ARM-IDLER REV RED

$

$

Not available

14

Troy-Bilt 1492

SPRING-.436 X 3.25
(Superseded to GW-1492099)

$10.99

$

In Stock, only 3 left!

0

15

MTD 20517-01

LINK-FWD

$

$

Not available

16

Troy-Bilt 20517-02

LINK-REV

$

$

Currently unavailable

17

MTD 9340

PIN-CLEVIS .375X.719 ZP

$

$

Not available

18

MTD 20751

MOUNT BAR-PNT (20691)

$

$

Not available

19

Troy-Bilt 9966

SCR-HH 5/16-18X2.25 G5ZP

$

$

Currently unavailable

20

MTD 20842

SHIFT BASE-OPC PNT
(Superseded to GW-20842)

$

$

Not available

21

Troy-Bilt 20553

SPACER-.88X.385X.09 ZP
(Superseded to GW-20553)

$

$

Not available

22

Troy-Bilt 9532

RING-KLIP .500 ZINC
(Superseded to GW-9532)

$3.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 20546

WASHER-#.88X.51X.063 ZP
(Superseded to GW-20546)

$

$

Not available

24

Troy-Bilt 20838

BELLCRANK-OPC PNT
(Superseded to 1916196001)

$43.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

26

MTD 20506

PIVOT-ROD

$

$

Not available

27

Troy-Bilt 20532

BUSHING-.5X.38X.4
(Superseded to GW-20532)

$

$

Not available

28

Troy-Bilt 90045

SCR-HFLK 5/16-18X1.00 ZP

$

$

Currently unavailable

?29

Troy-Bilt 1110043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0
