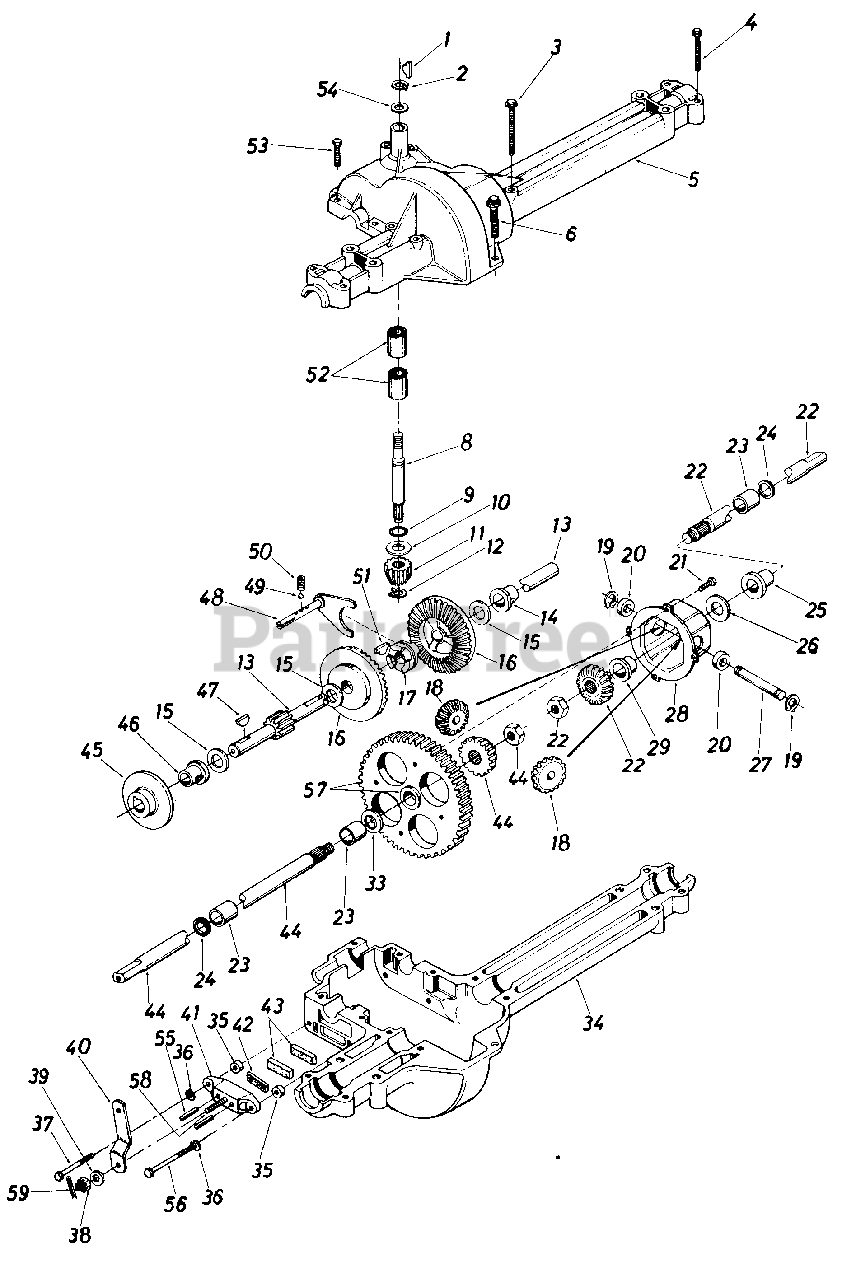

1208 (131-552F100) - Cub Cadet Rear-Engine Riding Mower (1991) Single Speed Transaxle Left Hand (Model 717-1310) Parts Diagram

Rear-Engine Riding Mower

Single Speed Transaxle Left Hand (Model 717-1310) Parts Diagram

  • Title

1

Cub Cadet 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

2

Cub Cadet 716-0115

Snap Ring .625" Shaft
(Superseded to 916-0115)

$

$

Not available

3

Cub Cadet 710-0854

Hex Bolt 1/4-20 x 1.75" Lg.
(Superseded to 710-1026)

$6.99

$

In Stock, Qty 13

0

4

Cub Cadet 710-0809

Hex Tap Scr. 1/4-20 x 1.25" Lg.

$6.99

$

In Stock, Qty 19

0

5

Cub Cadet 717-0764

Upper Housing

$

$

Not available

6

Cub Cadet 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 717-0634A

Input Shaft

$119.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 721-0178

Square Seal 5/8" I.D.
(Superseded to 921-0178)

$

$

Not available

10

Cub Cadet 736-0335

Thrust Washer 5/8" I.D. x 1.25 O.D.

$6.99

$

In Stock, Qty 9

0

11

Cub Cadet 717-0633

Pinion Input 14T
(Superseded to 917-0633)

$22.99

$

In Stock, only 1 left!

0

12

Cub Cadet 716-0108

Retaining Ring 7/16" Ext.

$5.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 717-0768

Drive Shaft

$

$

Not available

14

Cub Cadet 741-0336

Flange Brg. 518" I.D. x 3/4" Lg.
(Superseded to 941-0336)

$11.99

$

In Stock, only 4 left!

0

15

Fl-Wash. (See Below)

$

$

Not available

15

Cub Cadet 736-0349

Fl-Wash. 5/8" I.

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0336

Fl-Wash. 5/8" I.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

15

Cub Cadet 736-0337

Fl-Wash. 5/8" I.

$4.49

$

In Stock, Qty 9

0

16

Cub Cadet 717-0757

Bevel Gear 42T

$

$

Not available

17

Cub Cadet 717-0667

Clutch Collar
(Superseded to 917-0667)

$

$

Not available

18

Cub Cadet 717-1020

Miter Gear 15T (H.D.)

$

$

Not available

19

Cub Cadet 716-0184

Retainer Ring
(Superseded to 916-0184)

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 741-0589

Thrust Bearing
(Superseded to 941-0589)

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0862A

Pan Head Scr. 1/4-20 x .50" Lg. w/Patch

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-0766

Axle R.H. Ass'y.-Kit
(Superseded to 917-0766)

$

$

Not available

23

Cub Cadet 741-0340

Sleeve Bearing 3/4" I.D. x 1.0" Lg.
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

24

Cub Cadet 721-0179

Oil Seal 3/4" I.D.

$8.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 741-0339

Flange Bearing 3/4" I.D. x 15/16" Lg.
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0351

Fl-Wash. .760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 711-0918

Cross Shaft

$15.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 717-0777

Differential Housing Ass'y.
(Superseded to 753-0546)

$62.99

$

Usually ships in 3-6 days

0

29

Part of Ref. 28

$

$

Not available

33

Cub Cadet 736-0351

Fl-Wash. .760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 717-0761A

Lower Housing

$

$

Not available

35

Cub Cadet 750-0555

Spacer .53" O.D. x 3/8" Lg.t

$

$

Not available

36

Cub Cadet 736-0329

L-Wash. 1/4" I.D.t
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

37

Cub Cadet 710-0886

Hex Bolt 1/4-20 x 1.50" Lg. (Grade 5)t
(Superseded to 910-0886)

$

$

Not available

38

Cub Cadet 712-0335

Castle Nut 5/16-24 Thd.t
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0159

Fl-Wash. .344" I.D. x 375n O.D.t

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 717-0772

Actuating Armt
(Superseded to 717-0772B)

$12.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 717-0679

Brake Yoket

$

$

Not available

42

Cub Cadet 717-0682

Puck Platet
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 9

0

43

Cub Cadet 717-0678

Brake Puckt
(Superseded to 917-0678)

$7.49

$

In Stock, Qty 5

0

44

Cub Cadet 717-0765

Axle L.H. Ass'y.-Kit
(Superseded to 917-0765)

$

$

Not available

45

Cub Cadet 717-0677

Brake Disct

$

$

Not available

46

Cub Cadet 741-0337

Flange Bearing 5/8" I.D. x 15/16" Lg.
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 6

0

47

Cub Cadet 714-0161

Woodruff Key 3/16 x 5/8 HT
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 717-0754

Shift Fork Ass'y.
(Superseded to 917-0754)

$112.99

$

In Stock, only 1 left!

0

49

Cub Cadet 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, only 1 left!

0

50

Cub Cadet 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 714-0169

#9 Hi-Pro Key 3/16" x 3/4n Dia. HT
(Superseded to 914-0169)

$10.99

$

In Stock, Qty 7

0

52

Cub Cadet 741-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.
(Superseded to 941-0335)

$18.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-0855

Hex Bolt 1/4-20 x 1.00" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 4 left!

0

54

Cub Cadet 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

55

Cub Cadet 741-0343

Actuating Pin 5/16" Dia.t

$10.99

$

In Stock, Qty 7

0

56

Cub Cadet 710-0966

Hex Bolt 1/4-20 x 2.50" Lg. (Grade 5)t

$

$

Not available

57

Cub Cadet 717-0767

Differential Gear 72T Ass'y. w/Bearing
(Superseded to 917-0767)

$

$

Not available

58

Cub Cadet 717-0681

Sq. Hd. Bolt 5/16-24 Thd.t
(Superseded to 717-0796)

$

$

Not available

59

Cub Cadet 714-0111

Cotter Pin 3/32" Dia. x 1" Lgt

$4.99

$

In Stock, Qty 13

0

Cub Cadet 737-0148

Grease-Shell (10 oz.)
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 19

0
