1208 (131-552F100) - Cub Cadet Rear-Engine Riding Mower (1991) Parts For 38" Deck Parts Diagram

Rear-Engine Riding Mower

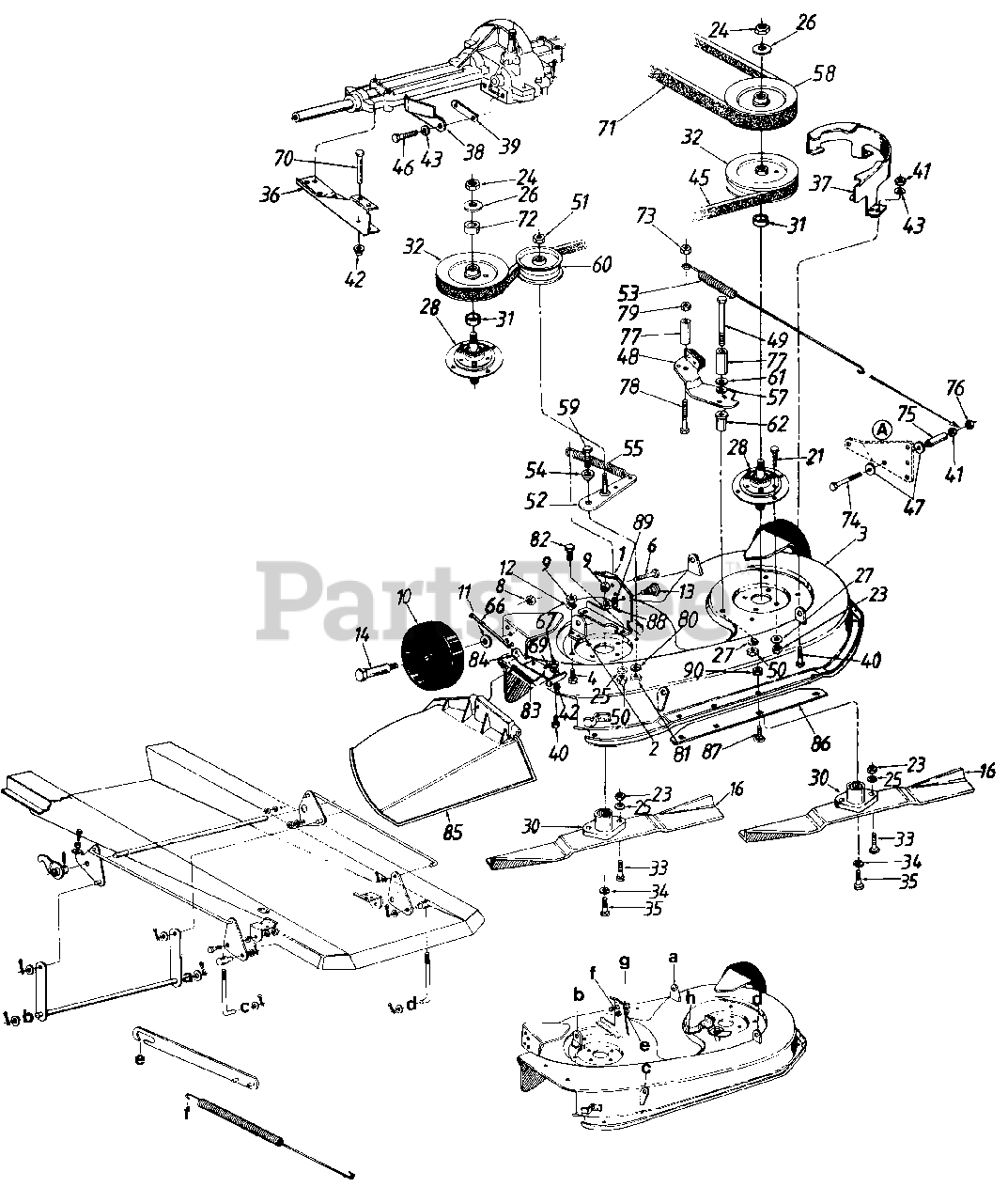

Parts For 38" Deck Parts Diagram

  • Title

1

Cub Cadet 17094C

Deck Disengagement Brkt.

$

$

Currently unavailable

2

Cub Cadet 17096

Rear Deck Brkt.-R.H.

$

$

Currently unavailable

3

Cub Cadet 17122C

38" Deck Ass'y.

$

$

Currently unavailable

Cub Cadet 17158

38" Deck Ass'y. Comp.

$

$

Currently unavailable

4

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0181

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0105

Bell-Wash. .380 I.D. x .88

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 738-0143

Shld. Bolt .500 Dia. x .336" Lg.

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0373

Shld. Bolt .498 Dia. x 1.53" Lg.
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 742-0473A

High-Lift Blade
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 5

0

Cub Cadet 742-0493

Hard Coated Blade 3 x 19.38" Lg. (Optional)

$

$

Not available

21

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

23

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

24

Cub Cadet 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

25

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

27

Cub Cadet 736-0242

Bell-Wash. .345 I.D. x .88

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 717-0906

Blade Spindle Ass'y. Comp.
(Superseded to 753-05319)

$128.99

$

In Stock, Qty 10

0

30

Cub Cadet 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

31

Cub Cadet 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 756-0516

5" Dia. Pulley (1" Hub)

$

$

Not available

33

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. (Special)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

35

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 15625B

Lower Outside Belt Guard

Variations

Cub Cadet 15625B-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 16608A

Belt Guard Deck-R.H.

Variations

Cub Cadet 16608A-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 17117

Lower Inside Belt Guard

$

$

Currently unavailable

39

Cub Cadet 17118

Belt Guard Spacer

$

$

Currently unavailable

40

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

42

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 736-0329

L-Wash. 1/4" l.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

45

Cub Cadet 754-0348

V-Belt
(Superseded to 954-0348)

$

$

Not available

46

Cub Cadet 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0176

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, only 4 left!

0

48

Cub Cadet 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

49

Cub Cadet 710-3056

Hex Bolt 5/16-18 X 3.251' Lg.

$10.99

$

In Stock, only 1 left!

0

50

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

52

Cub Cadet 17241

Idler Brkt. Ass'y.

$

$

Not available

53

Cub Cadet 732-0587

Extension Spring 17.75" Lg.

$

$

Not available

54

Cub Cadet 738-0347

Shoulder Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 732-0185A

Extension Spring 7-3/4" Lg.

$

$

Not available

57

Cub Cadet 736-0232

Wave Washer .53" l.D. x .78 O.D.

$4.99

$

In Stock, Qty 12

0

58

Cub Cadet 756-0517

5" Dia. Pulley (3/4" Hub)

$

$

Not available

59

Cub Cadet 710-0253

Hex Bolt 3/8-16 X 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 756-0515

Flat Idler Pulley

$

$

Not available

61

Cub Cadet 748-0234

Shld. Spacer .51" I.D. x .27n Lg.

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 750-0702

Spacer .31" I.D. x 1.46" Lg.

$

$

Not available

66

Cub Cadet 711-0792

Hinge Pin 1/4" Dia. x 5.75" Lg.
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

67

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

69

Cub Cadet 736-0270

Bell-Wash. 1/4n l.D.

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 710-0586

Pin .25" Dia. x 2.5" Lg.

$

$

Not available

71

Cub Cadet 754-0351

V-Belt
(Superseded to 954-0351)

$23.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 750-0732

Spacer

$

$

Not available

73

Cub Cadet 712-0117

Hex L-Nut l/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

74

Cub Cadet 710-0102

Hex Bolt 1/4-20 x 2.5 Lg.*
(Superseded to 710-1122)

$7.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 750-0583

Spacer 1/4n l.D. x 3/8n O.D.

$

$

Not available

76

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

77

Cub Cadet 750-0470

Spacer 5/16 I.D. x 1/2" O.D.

$6.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 710-0559

Hex Bolt 1/4-28 x 1.75n Lg.

$

$

Not available

79

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

81

Cub Cadet 712-3017

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

83

Cub Cadet 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

84

Cub Cadet 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

85

Cub Cadet 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: (Incl. Ref. Nos. 42, 66, 83, 84, 85)

$81.99

$

In Stock, Qty 6

0

86

Cub Cadet 17863

Deck Skirt Ext.
(Superseded to 17863-0637)

Variations

Cub Cadet 17863-0637

SKIRT-EXTENSION - POWDER BLACK (0637)

$

$

Not available

$

$

87

Cub Cadet 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

88

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

89

Cub Cadet 736-0169

L-Wash. 3/8" l.D.

$3.99

$

In Stock, Qty 20+

0

90

Cub Cadet 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0
