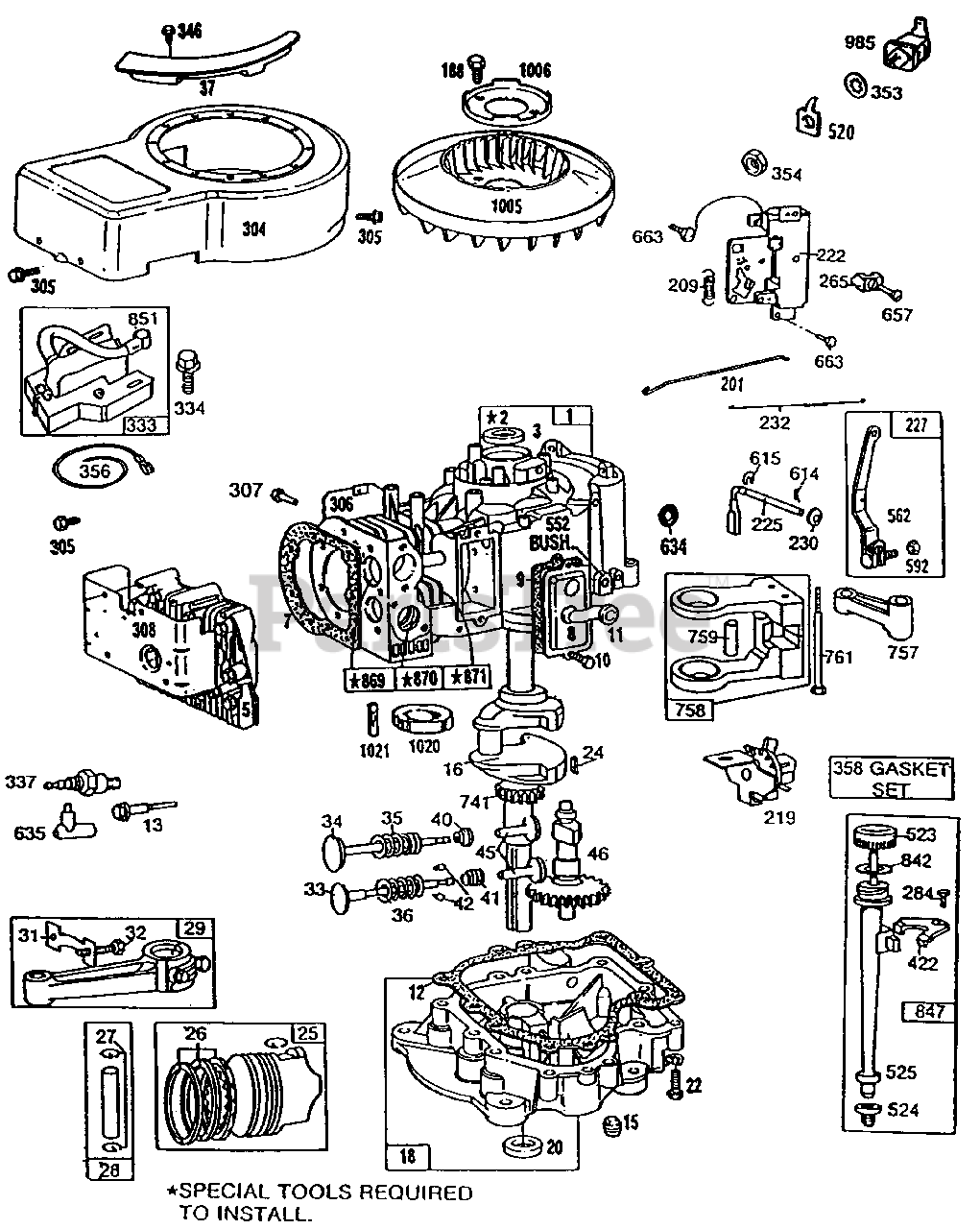

1208 (130-552F100) - Cub Cadet Rear-Engine Riding Mower Engine (1990) B&S 12 HP 281707-0411-01 Part 1 Parts Diagram

Rear-Engine Riding Mower Engine

B&S 12 HP 281707-0411-01 Part 1 Parts Diagram

  • Title

Cub Cadet BS-490763

Short Block

$

$

Not available

1

Cub Cadet BS-490450

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399265

Bearing-Cylinder
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 7

0

3

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-271866

Gasket-Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-391406

Breather Assembly
(Superseded to BS-495735)

$63.99

$

In Stock, Qty 6

0

9

Cub Cadet BS-27803

Gasket-Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-93394

Screw-Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280100

Tube-Breather
(Superseded to BS-692253)

$9.99

$

In Stock, Qty 12

0

12

Cub Cadet BS-271916

Gasket-Crankcase Cover- 1/64" Thick
(Superseded to BS-692226)

$6.99

$

In Stock, only 3 left!

0

Cub Cadet BS-271996

Gasket-Crankcase Cover- 005" Thick
(Superseded to BS-692405)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet BS-271997

Gasket-Crankcase Cover- .009" Thick
(Superseded to BS-692406)

$9.49

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-93723

Screw-Cylinder Head (3" long)

$

$

Not available

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-490466

Crankshaft

$

$

Not available

18

Cub Cadet BS-490452

Base-Engine

$

$

Not available

20

Cub Cadet BS-291675

Seal-Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94305

Screw-Base Mounting Sem
(Superseded to BS-692125)

$4.99

$

In Stock, only 4 left!

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-394661

Piston Assembly-Standard
(Superseded to BS-499284)

$

$

Not available

Cub Cadet BS-394662

Piston Assembly-.010" O.S.
(Superseded to BS-499288)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394663

Piston Assembly-.020" O.S.

$

$

Not available

Cub Cadet BS-394664

Piston Assembly-.030" O.S.

$

$

Not available

26

Cub Cadet BS-394665

Ring Set-Piston-Standard
(Superseded to BS-499996)

$53.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391781

Ring Set-Piston-.010" O.S.

$

$

Not available

Cub Cadet BS-391782

Ring Set-Piston-.020" O.S.

$

$

Not available

Cub Cadet BS-391783

Ring Set-Piston-.030" O.S.

$

$

Not available

27

Cub Cadet BS-260924

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-299691

Pin Assembly-Piston- Standard

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391286

Pin Assembly-Piston- .005" O.S.

$

$

Currently unavailable

29

Cub Cadet BS-490348

Rod Assembly-Connecting

$50.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222299

Lock-Connecting Rod Screw

$

$

Not available

32

Cub Cadet BS-92909

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-262246

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262247

Valve-Intake
(Superseded to BS-262247S)

$

$

Not available

35

Cub Cadet BS-65906

Spring-Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring-Exhaust Valve

$

$

Not available

37

Cub Cadet BS-223752

Guard-Flywheel

$

$

Currently unavailable

40

Cub Cadet BS-221596

Retainer-Intake Valves
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil-Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

42

Cub Cadet BS-93630

Retainer-Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 2 left!

0

45

Cub Cadet BS-262248

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-212897

Gear-Cam

$

$

Not available

188

Cub Cadet BS-93535

Screw-Sem (3/4" Long)

$

$

Not available

201

Cub Cadet BS-262348

Link-Governor

$9.49

$

In Stock, only 4 left!

0

209

Cub Cadet BS-260695

Spring-Governor
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 13

0

219

Cub Cadet BS-490815

Oil Slinger, Governor Gear and Bracket Assembly
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 20+

0

222

Cub Cadet BS-491593

Plate-Governor Control

$

$

Not available

225

Cub Cadet BS-231058

Crank-Governor (1/4" Dia.)
(Superseded to BS-692012)

$13.99

$

In Stock, only 2 left!

0

227

Cub Cadet BS-490927

Lever Assembly-Governor

$16.99

$

Usually ships in 2-12 days

0

230

Cub Cadet BS-222450

Washer-Governor Crank (1/4" I.D.)
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

232

Cub Cadet BS-260584

Spring-Governor Link
(Superseded to BS-692207)

$6.99

$

In Stock, only 1 left!

0

265

Cub Cadet BS-221535

Clamp-Casing
(Superseded to BS-691024)

$3.99

$

In Stock, only 3 left!

0

284

Cub Cadet BS-93572

Screw-Clamp Mtg.
(Superseded to 710-0432)

$

$

Not available

304

Cub Cadet BS-490689

Housing-Blower

$

$

Currently unavailable

305

Cub Cadet BS-93158

Screw-Blower Housing Mounting Sem

$

$

Not available

306

Cub Cadet BS-223715

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-93163

Screw-Cylinder Shield Mounting Sem

$

$

Currently unavailable

308

Cub Cadet BS-491490

Cover-Cylinder Head

$

$

Not available

333

Cub Cadet BS-492341

Armature-Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

337

Cub Cadet 759-3331

Plug-Spark

$4.99

$

In Stock, only 2 left!

0

346

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

353

Cub Cadet BS-92791

Washer-Lock-Shakeproof
(Superseded to BS-691077)

$3.49

$

In Stock, only 2 left!

0

354

Cub Cadet BS-90576

Nut-Hex-8-32
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-490525

Gasket Set
(Superseded to BS-494241)

$39.99

$

In Stock, Qty 8

0

422

Cub Cadet BS-223721

Clamp-Oil Filler Tube
(Superseded to BS-224390)

$

$

Not available

520

Cub Cadet BS-93722

Terminal-Spade
(Superseded to BS-691084)

$6.49

$

In Stock, only 1 left!

0

523

Cub Cadet BS-490327

Cap and Dipstick-Oil Filler
(Superseded to BS-692014)

$25.99

$

In Stock, Qty 6

0

524

Cub Cadet BS-68838

Seal-Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-280741

Tube-Oil Filler

$

$

Not available

552

Cub Cadet BS-231597

Bushing-Governor Crank (1/4" I.D.)

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex 10-24

$

$

Not available

614

Cub Cadet BS-93306

Cotter-Hairpin

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 3 left!

0

634

Cub Cadet BS-491323

Seal-Oil
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 7

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 5

0

657

Cub Cadet BS-93496

Screw-Sem
(Superseded to BS-690804)

$

$

Not available

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

741

Cub Cadet BS-262199

Gear-Timing
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-212359

Link-Counterweight

$

$

Not available

758

Cub Cadet BS-399891

Counterweight Assembly
(Superseded to BS-692423)

$222.99

$

Usually ships in 2-12 days

0

759

Cub Cadet BS-298909

Pin-Counterweight

$8.99

$

In Stock, only 2 left!

0

761

Cub Cadet BS-93875

Screw-Counterweight

$

$

Currently unavailable

842

Cub Cadet BS-270920

Seal-Oil Filler Cap
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

847

Cub Cadet BS-490474

Fill Group-Oil

$

$

Not available

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-261463

Seat-Intake Valve (Standard)
(Superseded to BS-691802)

$17.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-210940

Seat-Exhaust Valve (Standard)
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-261961

Guide-Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

985

Cub Cadet BS-398525

Insulator Assembly
(Superseded to BS-691972)

$8.49

$

In Stock, only 2 left!

0

1005

Cub Cadet BS-280687

Fan-Flywheel

$

$

Not available

1006

Cub Cadet BS-223726

Retainer-Fan

$

$

Currently unavailable

1020

Cub Cadet BS-262243

Eccentric

$36.99

$

Usually ships in 2-12 days

0

1021

Cub Cadet BS-94160

Pin-Eccentric

$

$

Not available
