12062 - Troy-Bilt Pony Rear-Tine Tiller (SN: 120620100101 & Above) ELECTRIC START ASSEMBLY (STYLE 2) Parts Diagram

Pony Rear-Tine Tiller

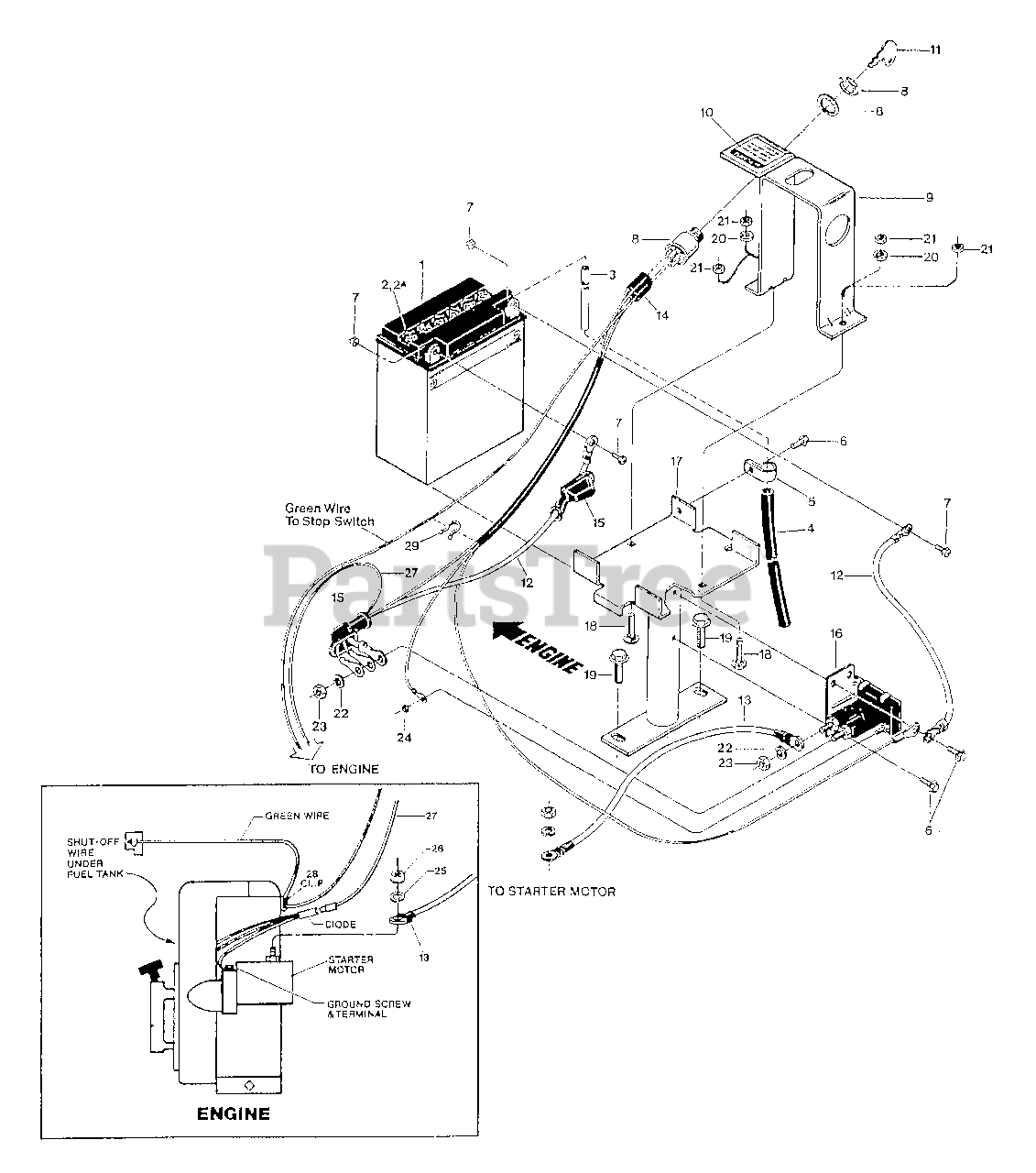

ELECTRIC START ASSEMBLY (STYLE 2) Parts Diagram

  • Title

1

MTD 96512

BATTERY

$

$

Not available

2

MTD 9462

CAP-YELLOW

$

$

Not available

2A

MTD 9248

CAP-BATTERY WHITE (PONY)

$

$

Not available

3

MTD 9009

TUBE-VENT BATTERY/HSE

$

$

Not available

4

MTD 1475

TUBING-RUBBER

$

$

Not available

5

MTD 9224

CLAMP

$

$

Not available

6

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 11361

HDW PKG-BATTERY TERMINAL

$

$

Currently unavailable

8

Troy-Bilt 1908112

ASSM-KEYSWITCH ELEC TLR
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

9

Troy-Bilt 20897

ASSM-KEYSWITCH W/DECAL

$

$

Currently unavailable

10

Troy-Bilt 1900944

DECAL-KEYSWITCH TILLER
(Superseded to 777S30648)

$4.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 96520

KEYS-IGN T/BLAZER 1 PAIR
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

12

UNKNOWN

$

$

Not available

13

Troy-Bilt 96510

CABLE-BATTERY 12"
(Superseded to GW-96510)

$11.99

$

In Stock, only 1 left!

0

14

MTD 1908118

KIT-WIRE HARNESS ASSM (AVAILABLE AS COMPLETE ASSEMBLY ONLY)

$

$

Not available

15

Troy-Bilt 97020

BOOT-BATTERY CABLE
(Superseded to GW-97020)

$

$

Not available

16

Troy-Bilt 96514

SOLENOID
(Superseded to GW-96514099)

$48.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 20837

BRKT-BATTERY OPC PNT
(Superseded to GW-20837)

$

$

Not available

18

MTD 9566

SCR-CARR 1/4-20X1.25

$

$

Not available

19

Troy-Bilt 90045

SCR-HFLK 5/16-18X1.00 ZP

$

$

Currently unavailable

20

Troy-Bilt 9910

WASHER-LK .25 ZP (USED ON EARLY UNITS ONLY)

$

$

Currently unavailable

21

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

21

Troy-Bilt 9844

NUT-HF/LK 1/4-20 ZP

$

$

Currently unavailable

22

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

23

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

24

Troy-Bilt 9853

NUT W/LKWASHER #10-32 ZP
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

25

0

LOCKWASHER

$

$

Not available

26

0

NUT

$

$

Not available

27

Troy-Bilt 1901894

WIRE-RECHARGE 5&7 BRIGGS

$

$

Not available

28

Troy-Bilt 9218

CLIP-SPECIAL
(Superseded to GW-9218)

$

$

Not available

29

Troy-Bilt 9265

TIE-TWIST LOCK
(Superseded to GW-9265)

$

$

Not available
