12061 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 120610100101 & Above) TINES & WHEELS Parts Diagram

Tuffy Rear-Tine Tiller

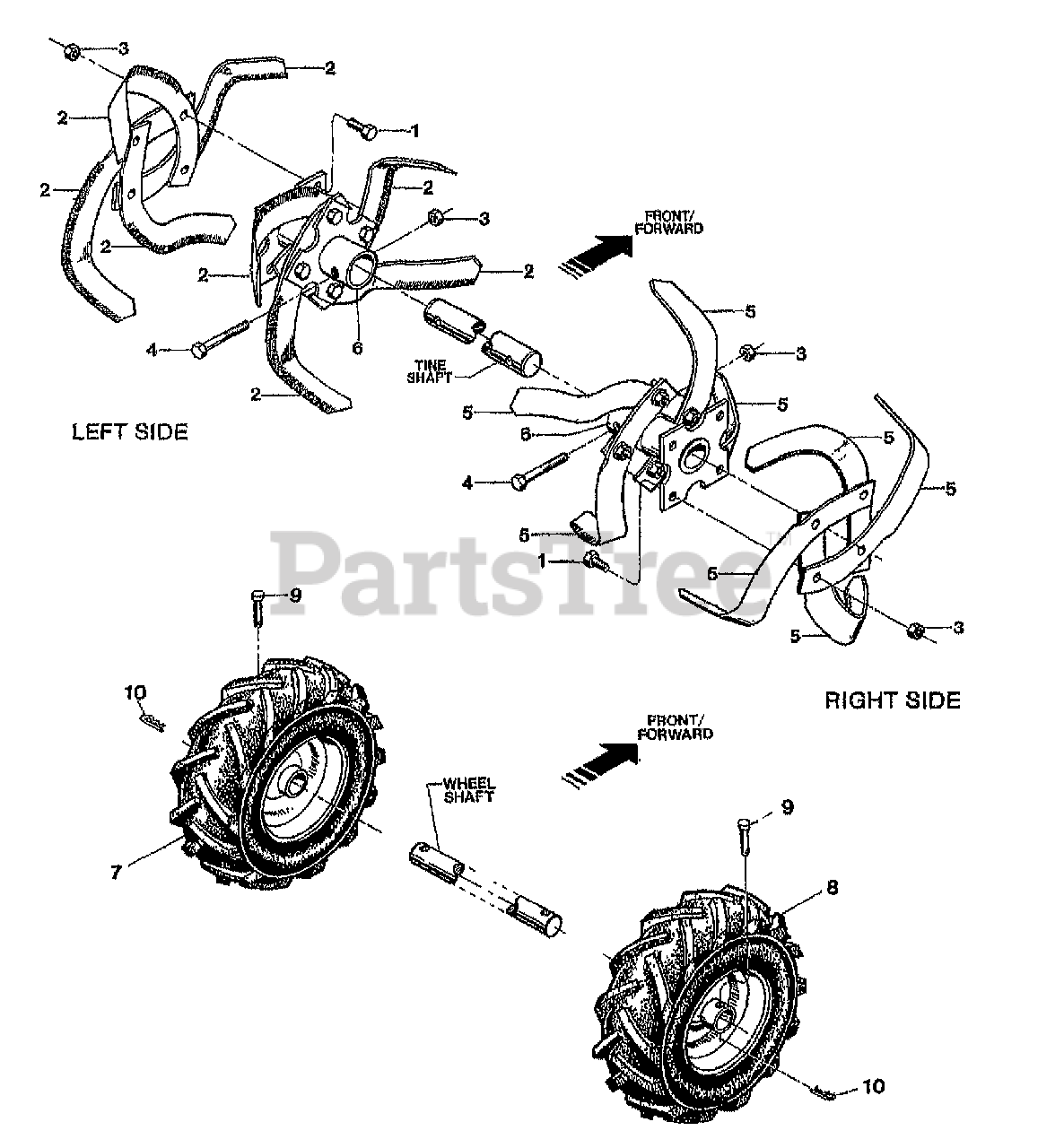

TINES & WHEELS Parts Diagram

  • Title
1

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

2

Troy-Bilt 50049-01

TINE-BOLO RIGHT
(Superseded to 742-04226-0637)

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

4

Troy-Bilt 1982612

SCR-HH 3/8-16X2.00 G8 (TINE HOLDER TO TILLER SHAFT)
(Superseded to 710-3096)

$7.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1901

TINES-BOLO JUNIOR/TUFFY
(Superseded to GW-1901)

$

$

Not available

5

Troy-Bilt 50049-02

TINE-BOLO LEFT
(Superseded to 742-04227-0637)

$16.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1902155010

HOLDER-TINE JUNIOR

$

$

Currently unavailable

6

Troy-Bilt 1915075010

HOLDER-TINE T/B TUFFY {12155}
(Superseded to 686-04066-0638)

$58.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 55095-01

ASSM-TIRE&WHL LH GRAY
(Superseded to 734-04162)

$

$

Not available

8

Troy-Bilt 55095-02

ASSM-TIRE&WHL RH GRAY
(Superseded to 734-04161)

$

$

Not available

9

Troy-Bilt 9380

PIN-CLEVIS
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 5

0

10

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0
