12061 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 120610100101 & Above) DRIVE SHAFT ASSEMBLY Parts Diagram

Tuffy Rear-Tine Tiller

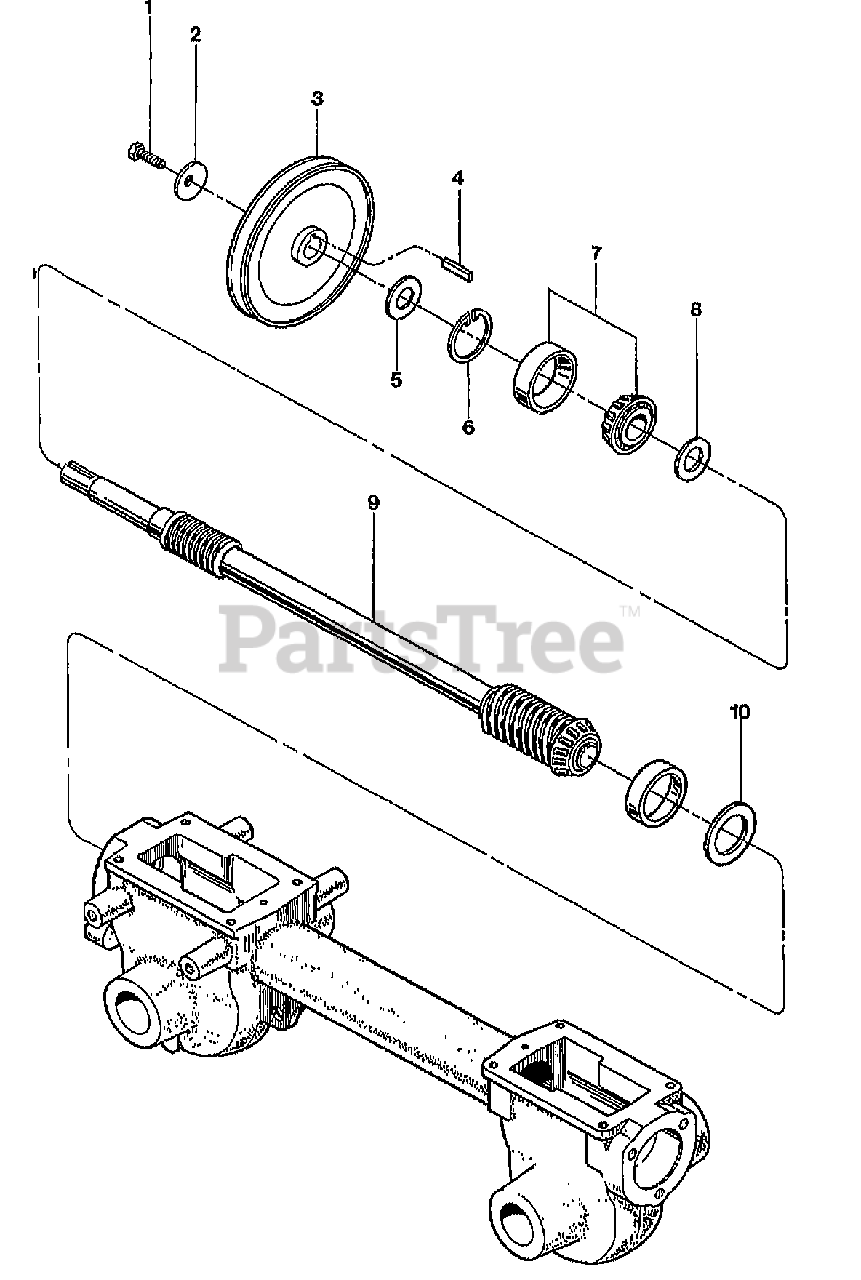

DRIVE SHAFT ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1100004

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

2

Troy-Bilt 9944

WASHER-.827X.331X.098
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

3

MTD 55031

PULLEY-TRANSMISSION
(Superseded to 656-04017)

$

$

Not available

4

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 50027

WASHER-SHLDR HARDENED
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

6

Troy-Bilt 9517

RING-RETAINING 5000-181
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

8

Troy-Bilt 50043

WASHER-#1.25X.75X.06
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 12

0

9

Troy-Bilt 55001

DRIVESHAFT-MACH

$

$

Currently unavailable

9

Troy-Bilt 1904281

ASSM-DRIVESHAFT TUFFY {12155}

$

$

Not available

10

Troy-Bilt 1224-1

SHIM-1.75X1.5X.01 AS REQ'D
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1224-2

SHIM-1.75X1.5X.03 AS REQ'D
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 1224-3

SHIM-1.75X1.5X.005 AS REQ'D
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1224-4

SHIM-1.75X1.5X.062 AS REQ'D
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 16

0

10

Troy-Bilt 1325C

SHIM SET-DRIVESHAFT-HORSE
(Superseded to GW-1325C)

$15.99

$

In Stock, only 2 left!

0

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
