12060 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 120600100101 & Above) TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

Tuffy Rear-Tine Tiller

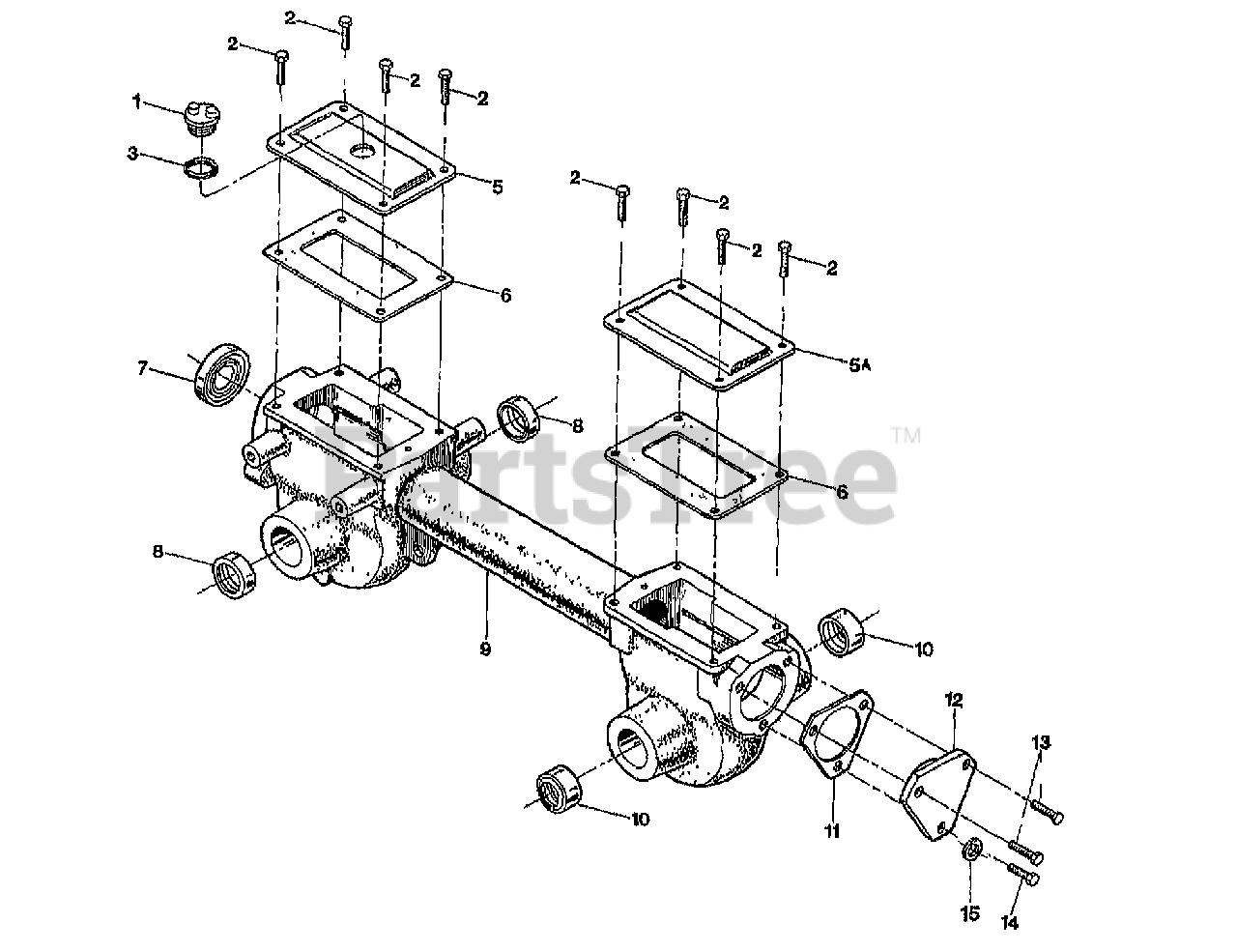

TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

  • Title
1

Troy-Bilt 9467

PLUG-OIL FILL 3/4-10
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 90038

SCR-HFLK 5/16-18X.62 G5ZP

$

$

Currently unavailable

3

Troy-Bilt 97037

GASKET-O RING .674 I.D.
(Superseded to GW-97037)

$

$

Not available

5

Troy-Bilt 55090

COVER-TRANS FRNT PNT

$

$

Currently unavailable

5A

Troy-Bilt 55091

CVR-TRANS REAR PNT
(Superseded to 1916109001)

$

$

Not available

6

Troy-Bilt 50032

GASKET-GEAR HSG
(Superseded to 921-04229)

$6.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 9617

SEAL-OIL DRIVESHAFT
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

9

MTD 55000

TRANSMISSION-MACH

$

$

Not available

9

Troy-Bilt 1915084010

HSG-TRANS T/B TUFFY {12155}
(Superseded to 919-04013)

$211.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 1915308

KIT-OIL SEAL TUFFY

$36.99

$

In Stock, Qty 5

0

11

MTD 55011-1

GASKET-BEARING CAP .010

$

$

Not available

11

MTD 55011-2

GASKET-BEARING CAP .030

$

$

Not available

12

Troy-Bilt 55010

CAP-REAR BEARING-PM
(Superseded to 918-04435)

$22.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1186331

SCR-HFLK 5/16-18X1.00 ZP
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

14

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
