12060 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 0012160 & Above) HOOD DEPTH REDULATOR & DRAG BAR Parts Diagram

Tuffy Rear-Tine Tiller

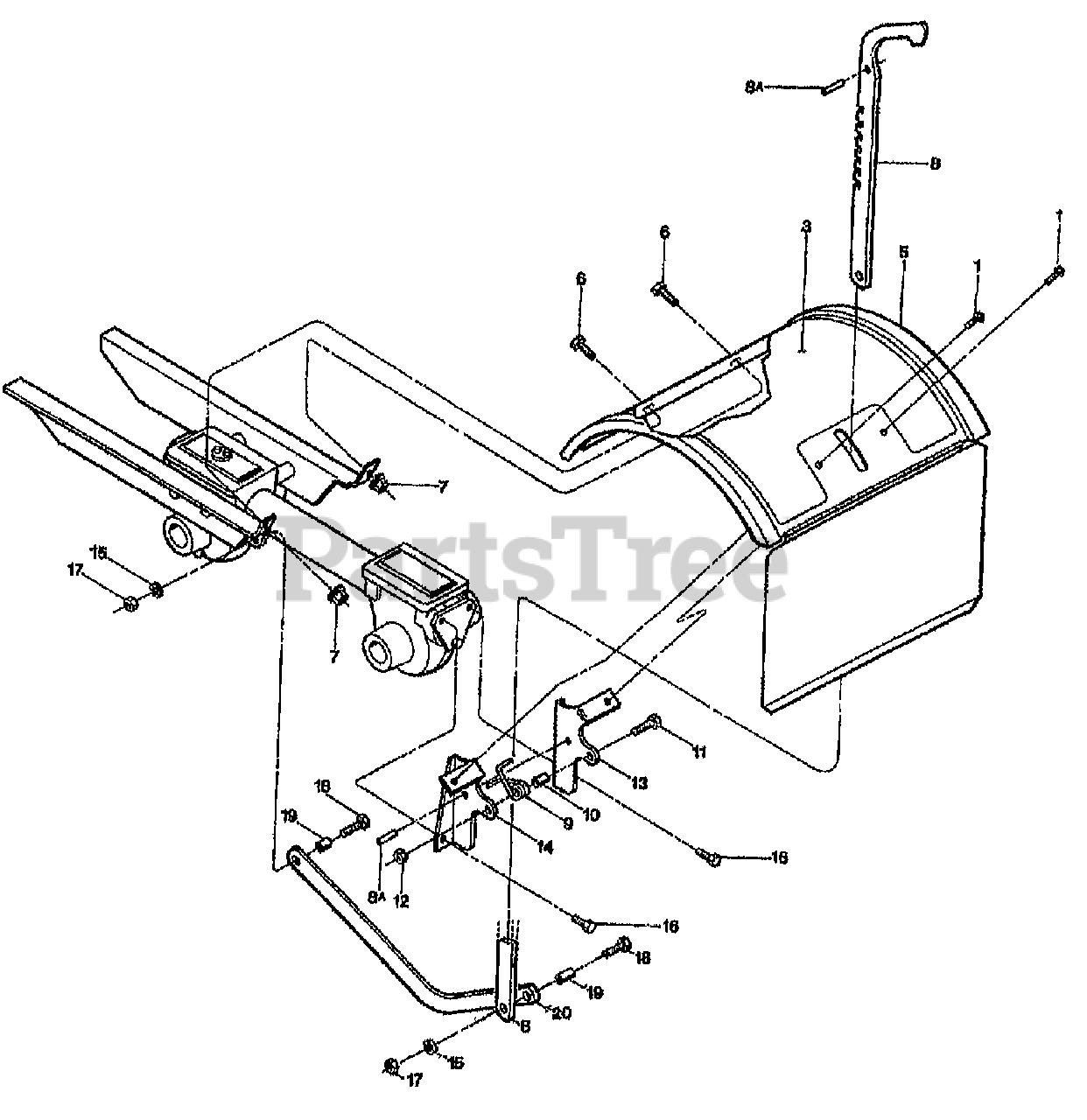

HOOD DEPTH REDULATOR & DRAG BAR Parts Diagram

  • Title
1

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

2

0

REF. NO. 2 IS NOT USED

$

$

Not available

3

MTD 55101

DECAL-HOOD OPER INST

$

$

Not available

3

MTD 1904547

DECAL-HOOD INST TUFFY {12155}

$

$

Not available

4

0

REF. NO. 4 IS NOT USED

$

$

Not available

5

Troy-Bilt 55076

HOOD W/DECALS PNT (INCL. TINE FLAP & 55101)
(Superseded to 686-04076A-0638)

$89.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 1904572

HOOD W/DECALS TUFFY (INCL. TINE FLAP & 55101)
(Superseded to 686-04076A-0638)

$89.99

$

In Stock, only 2 left!

0

6

MTD 1100088

SCR-HH 5/16-18X.5 GD5 YEL

$

$

Not available

7

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 55074

DEPTH REG-W/PIN PNT
(Superseded to 786-04292A-0638)

$66.99

$

Usually ships in 3-6 days

0

8A

Troy-Bilt 9308

PIN-ROLL .25 X 1
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

9

Troy-Bilt 9384

SPRING-TORSION
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 11

0

10

Troy-Bilt 9534

SPACER-.250X.343X.375
(Superseded to GW-9534)

$4.49

$

In Stock, Qty 9

0

11

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 13

0

12

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

13

MTD 55072-2

BRKT-HOOD RIGHT PNT

$

$

Not available

14

MTD 55072-1

BRKT-HOOD LEFT PNT

$

$

Not available

15

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1186331

SCR-HFLK 5/16-18X1.00 ZP
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

17

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

19

Troy-Bilt 55088

BUSHING-.438X.323X.4
(Superseded to GW-55088)

$

$

Not available

20

Troy-Bilt 55073

DRAG BAR-TUFFY PNT
(Superseded to 786-04104-0638)

$36.99

$

In Stock, only 1 left!

0
