12059 - Troy-Bilt Horse Rear-Tine Tiller (SN: 120590100101 & Above) DEPTH REGULATOR & TIME HOOD ASSEMBLIES Parts Diagram

Horse Rear-Tine Tiller

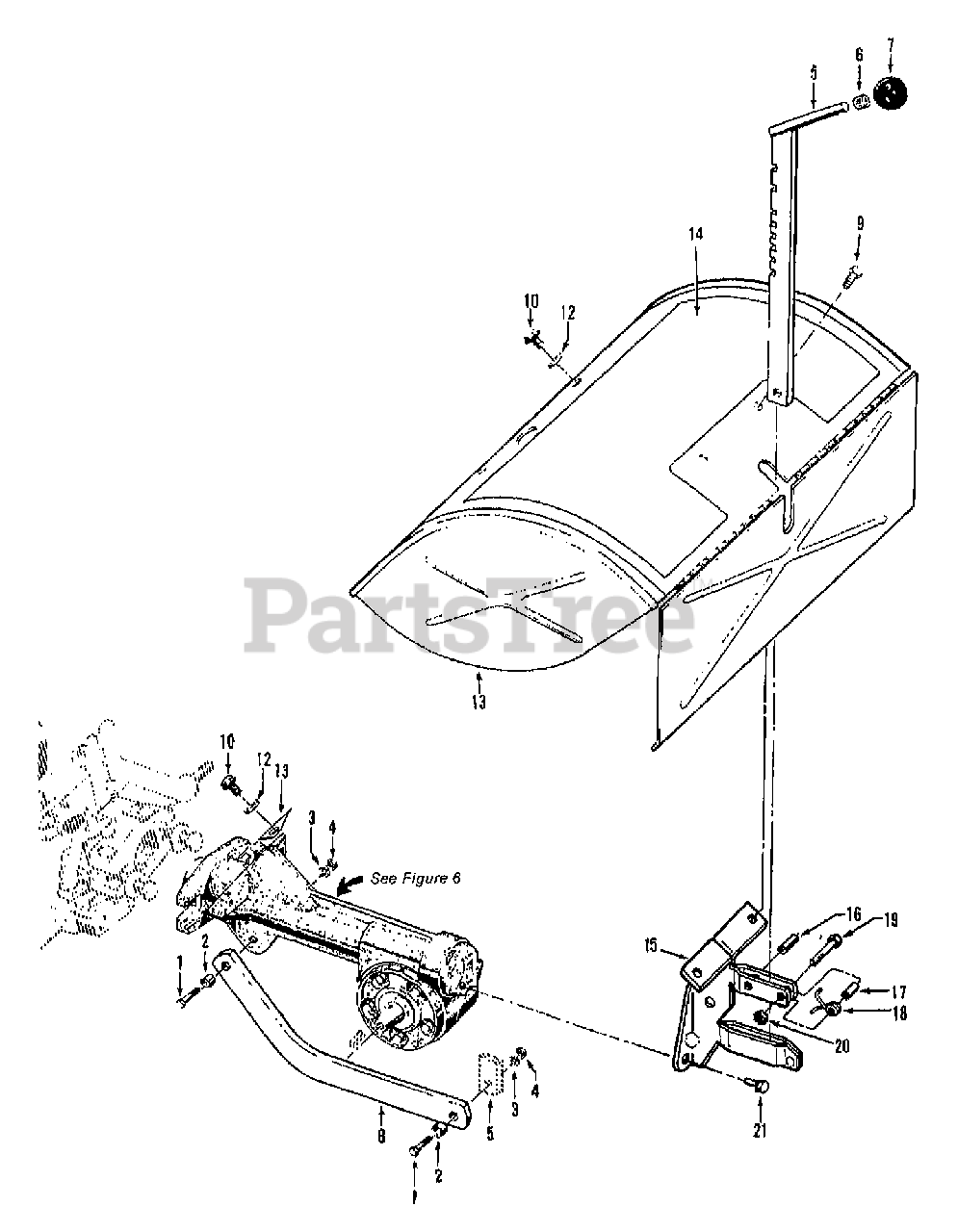

DEPTH REGULATOR & TIME HOOD ASSEMBLIES Parts Diagram

  • Title
1

Troy-Bilt GW-9712

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-9802

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 9119

KNOB-CONTROL DEPTH REGULATOR INCLUDES #9120 RETAINING RING(REF.#6)
(Superseded to GW-9119)

$11.99

$

In Stock, Qty 8

0

8

Troy-Bilt 1900867010

BAR-DRAG RED
(Superseded to 1900867001)

$34.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH (LOCKWASHER AND NUT NOT REQUIRED)
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-90038

SCR-HFLK 5/16-18X.62 G5ZP
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

10

Troy-Bilt GW-90044

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

11

0

THIS REF. NOT USED

$

$

Not available

12

Troy-Bilt 9929

WASHER-#1.125X.344 ZP
(Superseded to GW-9929)

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 2629

HOOD W/DECALS OPC SERVICE (REF.#14)

$

$

Currently unavailable

14

MTD 2719

DECAL-HOOD INST

$

$

Not available

15

Troy-Bilt 2527

BRKT W/ROLL PIN (9308) (REF.#16)
(Superseded to GW-2527)

$158.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 9308

PIN-ROLL .25 X 1
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

17

Troy-Bilt 9534

SPACER-.250X.343X.375
(Superseded to GW-9534)

$4.49

$

In Stock, Qty 9

0

18

Troy-Bilt 9384

SPRING-TORSION
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 11

0

19

Troy-Bilt GW-9734

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

20

Troy-Bilt GW-9811

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

21

Troy-Bilt GW-90038

SCR-HFLK 5/16-18X.62 G5ZP
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0
