12057 - Troy-Bilt Horse Rear-Tine Tiller (SN: 120570100101 & Above) TILLER ATTACHMENT TRANSMISSION ASSEMBLIES Parts Diagram

Horse Rear-Tine Tiller

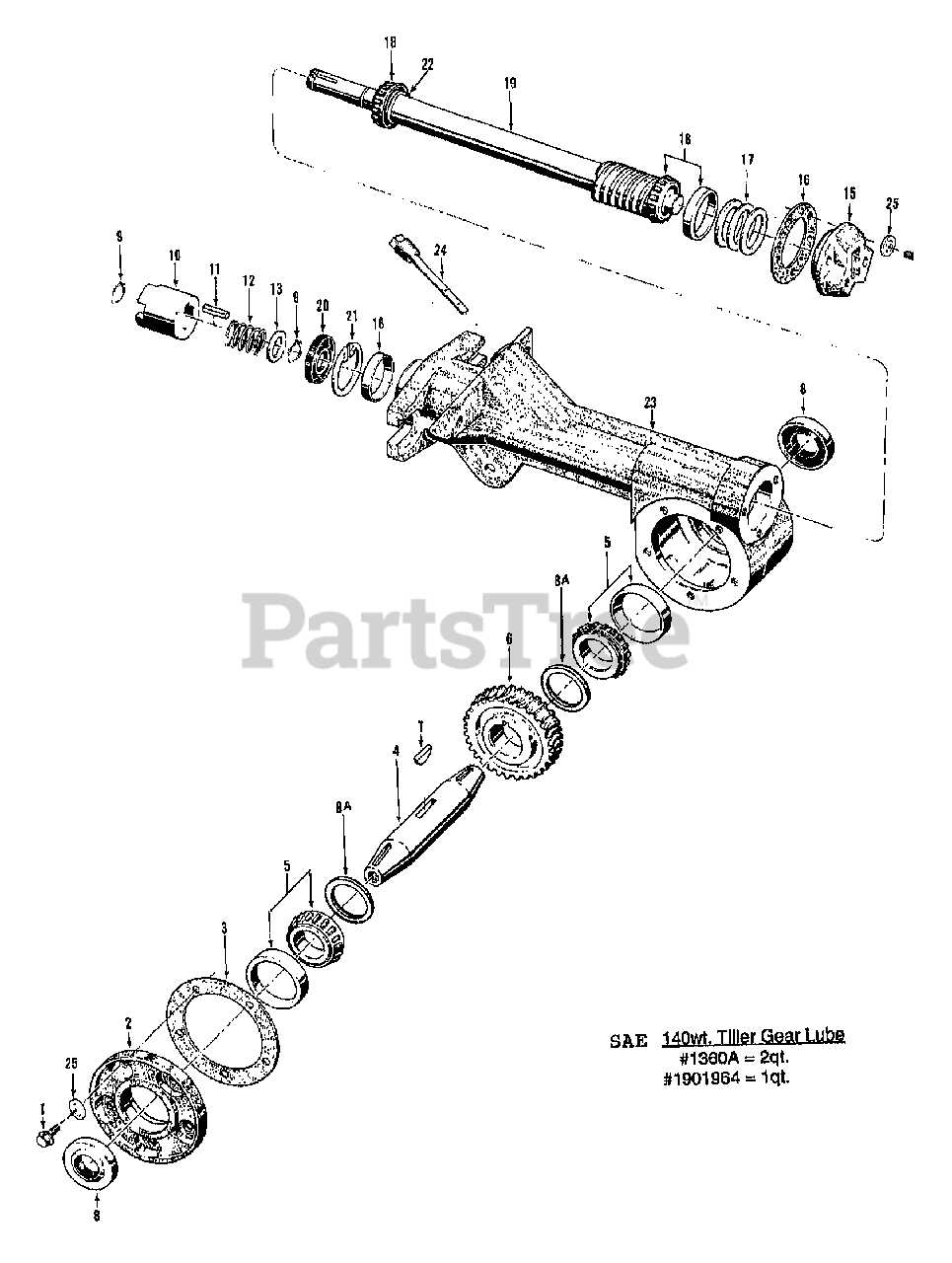

TILLER ATTACHMENT TRANSMISSION ASSEMBLIES Parts Diagram

  • Title

1

Troy-Bilt 1908211

SCR-HXSKT 1/4-20X.625
(Superseded to 1915068)

$4.49

$

In Stock, Qty 10

0

2

Troy-Bilt GW-2451

COVER-W/SCRS(TLR) (9780) (REF.#1)
(Superseded to GW-10456)

$143.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 1129-1

GASKET-TILLER COVER
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

3

Troy-Bilt 1129-2

GASKET-TILLER COVER
(Superseded to GW-1129-2099)

$8.99

$

In Stock, only 3 left!

0

4

Troy-Bilt GW-1026

SHAFT-TILLER
(Superseded to GW-1026A)

$200.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-11522

KIT-BEARING CUP & CONE

$69.99

$

In Stock, Qty 6

0

6

Troy-Bilt GW-2654

GEAR-WORM MACH
(Superseded to GW-2675)

$191.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-97067

KEY-WOODRUFF .250X1.01

$12.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-9618

SEAL-OIL TILLERSHAFT
(Superseded to GW-9618099)

$20.99

$

In Stock, Qty 20+

0

8A

Troy-Bilt GW-94017

WASHER-1.75X1.260X.054

$4.99

$

In Stock, Qty 13

0

9

Troy-Bilt 9500

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-2120-1

KIT-CLUTCH DOGS TILLER
(Superseded to 1902404)

$166.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 2127

SPRING (TC)
(Superseded to GW-2127)

$5.99

$

In Stock, Qty 13

0

13

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

?14

MTD 1908212

SCR-HFLK 1/4-20X.87

$

$

Not available

15

Troy-Bilt 1900881010

CAP-REAR #1115
(Superseded to 718-04406)

$50.99

$

In Stock, Qty 5

0

16

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 19

0

17

Troy-Bilt 1224-1

SHIM-1.75X1.5X.01
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1224-2

SHIM-1.75X1.5X.03
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

17

Troy-Bilt 1224-3

SHIM-1.75X1.5X.005
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 6

0

17

Troy-Bilt 1224-4

SHIM-1.75X1.5X.062
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 16

0

18

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 18

0

19

Troy-Bilt 11602

KIT-TILLER DR SHAFT
(Superseded to GW-11602)

$302.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 9617

SEAL-OIL DRIVESHAFT
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 9517

RING-RETAINING 5000-181
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt GW-2206

HSG-TLR ATT W/SLEEVE/RACEH3 (REF.#5)

$

$

Not available

24

MTD GW-2136

ASSM-OIL DIPSTICK

$

$

Not available

24

Troy-Bilt 1909157

ASSM-DIPSTICK HORSE TRANS

$18.99

$

In Stock, only 1 left!

0

25

0

WASHER

$

$

Not available

Troy-Bilt GW-1360A

OIL (1901964)
(Superseded to 490-000-V045)

$19.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
