12055 - Troy-Bilt Horse Rear-Tine Tiller (SN: 120550100101 & Above) POWER UNIT TRANSMISSION ASSEMBLIES Parts Diagram

Horse Rear-Tine Tiller

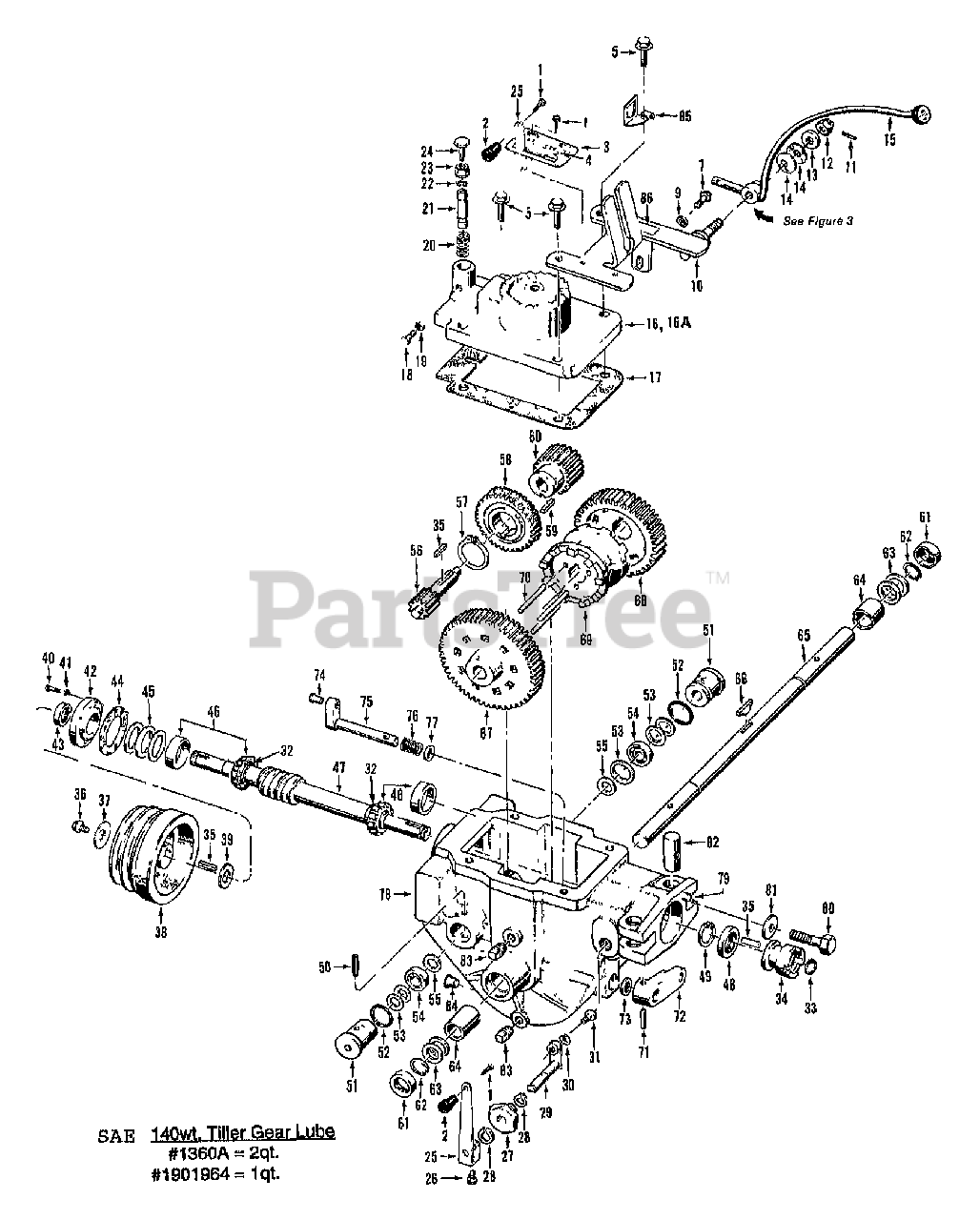

POWER UNIT TRANSMISSION ASSEMBLIES Parts Diagram

  • Title

1

Troy-Bilt GW-9782

SCR 10-32
(Superseded to 710-04454)

$4.49

$

In Stock, only 4 left!

0

2

Troy-Bilt 9463

KNOB-TAPERED
(Superseded to GW-9463)

$11.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 2263

PLATE-TINE ENGAGE W/DECAL
(Superseded to GW-2263)

$52.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 1900758

DECAL-TINE ENGAGE
(Superseded to 777I20945)

$4.99

$

In Stock, only 1 left!

0

5

Troy-Bilt GW-90047

SCR-HFLK 3/8-16X1.50
(Superseded to 1186349)

$3.99

$

Usually ships in 3-6 days

0

?6

0

THIS REF. NOT USED

$

$

Not available

7

Troy-Bilt GW-90044

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

?8

0

THIS REF. NOT USED

$

$

Not available

9

Troy-Bilt GW-9902

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1900870010

BRKT-H HOOD 2149
(Superseded to 1900870001)

$178.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 9362

PIN-SPRING .125 X 1
(Superseded to GW-9362)

$4.49

$

Usually ships in 3-6 days

0

12

0

NUT

$

$

Not available

12

MTD 9838

NUT-HEX 1/2-20 CALL TECH. SERVICE DEPT. FOR TIGHTENING INSTRUCTIONS.

$

$

Not available

13

Troy-Bilt 9934

WASHER-# SHOULDER ZP (SHOULDER FACES DISC WASHERS)
(Superseded to GW-9934)

$15.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 9932

WASHER-# 1.97X1X.118 (CONCAVE SURFACES FACE EACH OTHER)
(Superseded to GW-9932)

$24.99

$

In Stock, only 3 left!

0

15

0

LEVER

$

$

Not available

16

Troy-Bilt 1900869010

COVER-TRANS RED 2523
(Superseded to 719-04015P)

$233.99

$

In Stock, only 3 left!

0

16A

MTD 2566

ASSM-TRANS COVER OPC

$

$

Not available

17

Troy-Bilt 1123

GASKET-TRANS COVER
(Superseded to GW-1123)

$8.49

$

In Stock, only 4 left!

0

18

Troy-Bilt GW-90008

SCR-HH 5/16-18X1.0 G5 ZP (REMOVE WITH CARE) SEE REF.#'S 20 & 21
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

19

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 1901439

SPRING-REV PLUNGER ZP (REMOVE WITH CARE)

$12.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 1035

ASSM-NEUTRAL PLUNGER (REMOVE WITH CARE) INCLUDES #9504 CLIP RING(REF.#22)
(Superseded to GW-1035)

$37.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 1901440

RING-KLIP EXT .594 ID ZP

$5.49

$

In Stock, Qty 19

0

23

Troy-Bilt GW-9831

NUT-HFLK 3/8-16 ZP
(Superseded to 1186393)

$3.49

$

In Stock, only 2 left!

0

24

Troy-Bilt GW-9545

SCR 3/8-16X1.5 UNC-2AG
(Superseded to 1902004)

$8.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 1900878010

LEVER-ECCENTRIC RED (ALSO SEE REF.#'S 1,2 3 AND 4 LISTED ABOVE)
(Superseded to 786-04002)

$56.99

$

In Stock, only 3 left!

0

26

Troy-Bilt GW-9743

SCR-HH 1/4-20X.5 GR5 YEL
(Superseded to 710-3013)

$4.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 2123

BUSHING-.87X.5X.62 ECC
(Superseded to 741-04008)

$28.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 9516

RING-RETAINING 5100-50
(Superseded to GW-9516)

$4.49

$

In Stock, only 4 left!

0

29

Troy-Bilt 2461

SHAFT-WELD ECCENTRIC
(Superseded to GW-2461)

$39.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 9911

WASHER-LK .25 HI-COLLAR
(Superseded to GW-9911)

$5.99

$

In Stock, Qty 9

0

31

Troy-Bilt 9672

SCR-HXSKT 1/4-20X.38 G8
(Superseded to 710-04354)

$3.99

$

In Stock, only 4 left!

0

32

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062 SHOULDER(DRIVE SHAFT)
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 9500

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt GW-2120-3

KIT-CLUTCH DOGS TILLER
(Superseded to 1902404)

$166.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 9301

KEY-.188 SQX1.0 (USED ON DRIVE SHAFT AND PINION SHAFT)
(Superseded to GW-9301099)

$3.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 9655

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 8

0

37

Troy-Bilt 9944

WASHER-.827X.331X.098
(Superseded to 736-04193)

$6.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 2107

PULLEY-TRANS MACH
(Superseded to GW-2107)

$145.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 50027

WASHER-SHLDR HARDENED
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

40

Troy-Bilt GW-9701

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

42

Troy-Bilt 1900879010

COVER-FRONT
(Superseded to 718-04007)

$18.99

$

In Stock, only 2 left!

0

43

Troy-Bilt GW-85030

SEAL-PINION SHAFT PT/85030/00
(Superseded to 921-04044)

$9.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 19

0

45

Troy-Bilt 1224-1

SHIM-1.75X1.5X.01
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 1224-2

SHIM-1.75X1.5X.03
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

45

Troy-Bilt 1224-3

SHIM-1.75X1.5X.005
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 6

0

45

Troy-Bilt 1224-4

SHIM-1.75X1.5X.062
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 16

0

46

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 18

0

47

MTD 11601

KIT-WHEELDRIVE ROLL/WORM

$

$

Not available

48

Troy-Bilt 9617

SEAL-OIL DRIVESHAFT
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 9517

RING-RETAINING 5000-181
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 9309

PIN-SPIROL .25 X 2.0 (REF.#51)
(Superseded to 715-0121)

$6.99

$

In Stock, Qty 8

0

51

Troy-Bilt 1060A

PLUG-PINION BRG W/RING (REF.#52)
(Superseded to GW-1060A)

$

$

Not available

52

Troy-Bilt 9604

RING-O 1 ID
(Superseded to GW-9604)

$5.49

$

In Stock, Qty 11

0

53

Troy-Bilt 1132-1

SHIM-1.234X1.015X.033
(Superseded to GW-1132-1)

$6.99

$

In Stock, Qty 5

0

53

Troy-Bilt 1132-2

SHIM-1.234X1.015X.062
(Superseded to 736-04310)

$4.49

$

In Stock, only 2 left!

0

53

Troy-Bilt 1132-3

SHIM-1.234X1.015X.01
(Superseded to GW-1132-3)

$6.99

$

In Stock, Qty 5

0

54

Troy-Bilt 9404

BRG-BALL (7 BALLS)
(Superseded to GW-9404)

$27.99

$

In Stock, only 2 left!

0

55

Troy-Bilt 1126

WASHER-# 1X.484X.06
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 1222

GEAR-SPLINE 10 TEETH MACH (DRIVES SLOW SPEED WHEEL GEAR)
(Superseded to GW-1222)

$139.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 9502

RING-RETAINING 5100-150
(Superseded to GW-9502)

$14.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 2656

GEAR-WORM MACH
(Superseded to GW-2656)

$147.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 9300

KEY
(Superseded to GW-9300)

$3.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 1233

GEAR-SPUR 20 TEETH MACH (DRIVES FAST SPEED WHEEL GEAR)
(Superseded to GW-1233)

$142.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 9511

RING-HEAVY EXT .906 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 19

0

63

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

63

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

63

Troy-Bilt 1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 14

0

63

Troy-Bilt 1166-5

SHIM-1.375X1.015X.005
(Superseded to 736-04257)

$3.99

$

In Stock, only 2 left!

0

64

Troy-Bilt 1086

BUSHING-1.25X1.005X1.5
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 10

0

65

Troy-Bilt 1878

KIT-WHEELSHAFT
(Superseded to GW-1878)

$229.99

$

In Stock, Qty 9

0

66

Troy-Bilt 9357

KEY-HI PRO .25X1.812
(Superseded to 714-04014)

$20.99

$

In Stock, only 2 left!

0

67

Troy-Bilt 1223

GEAR-SPUR 56 TEETH MACH
(Superseded to GW-1223)

$223.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 1232

GEAR-SPUR 46 TEETH MACH
(Superseded to GW-1232)

$154.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 1237

CLUTCH-MACH
(Superseded to GW-1237)

$162.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 1112

PIN-CLUTCH .25 2.65
(Superseded to GW-1112)

$4.99

$

In Stock, Qty 6

0

71

Troy-Bilt 9307

PIN-SPIROL .188 X 1.25
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

72

Troy-Bilt 1900880010

LEVER-ECC. #1029
(Superseded to 619-04000-0637)

$60.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 9622

SEAL-OIL ECCENTRIC
(Superseded to 921-04034)

$10.99

$

In Stock, Qty 20+

0

74

Troy-Bilt 1442

PIN-.375 X .72
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

75

Troy-Bilt 2712

SHAFT-ECCENTRIC HORSE TLR
(Superseded to 611-04003)

$89.99

$

In Stock, only 1 left!

0

76

Troy-Bilt 1441

SPRING .845 X 1.25
(Superseded to GW-1441)

$4.49

$

Usually ships in 3-6 days

0

77

Troy-Bilt 1440

WASHER # .875 X .65 X .06
(Superseded to 736-04079)

$4.99

$

In Stock, Qty 6

0

78

Troy-Bilt 2260

CASE-TRANS W/PIN
(Superseded to GW-2109099)

$936.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 9359

PIN-DRIVE .375X.75 ZP
(Superseded to GW-9359)

$3.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt GW-9560

SCR-HH 1/2-13X2.0 G5 ZP
(Superseded to 1100067)

$

$

Not available

81

Troy-Bilt 9928

WASHER-DISC SPRING
(Superseded to GW-9928)

$12.99

$

Usually ships in 3-6 days

0

82

MTD 2126

POST (TC) WITH THREADED HOLE FOR #9560 BOLT( REF.#80)

$

$

Not available

83

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 4 left!

0

84

Troy-Bilt 9122

PLUG-CAP (RED)
(Superseded to GW-9122)

$10.99

$

Usually ships in 3-6 days

0

85

MTD 9205

CLIP-CONNECTOR (ALSO SEE PAGE 16)

$

$

Not available

86

Troy-Bilt 1900759

DECAL-FWD INTERLOCK WIRE
(Superseded to 777I20944)

$9.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-1360A

OIL (1901964)
(Superseded to 490-000-V045)

$19.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
