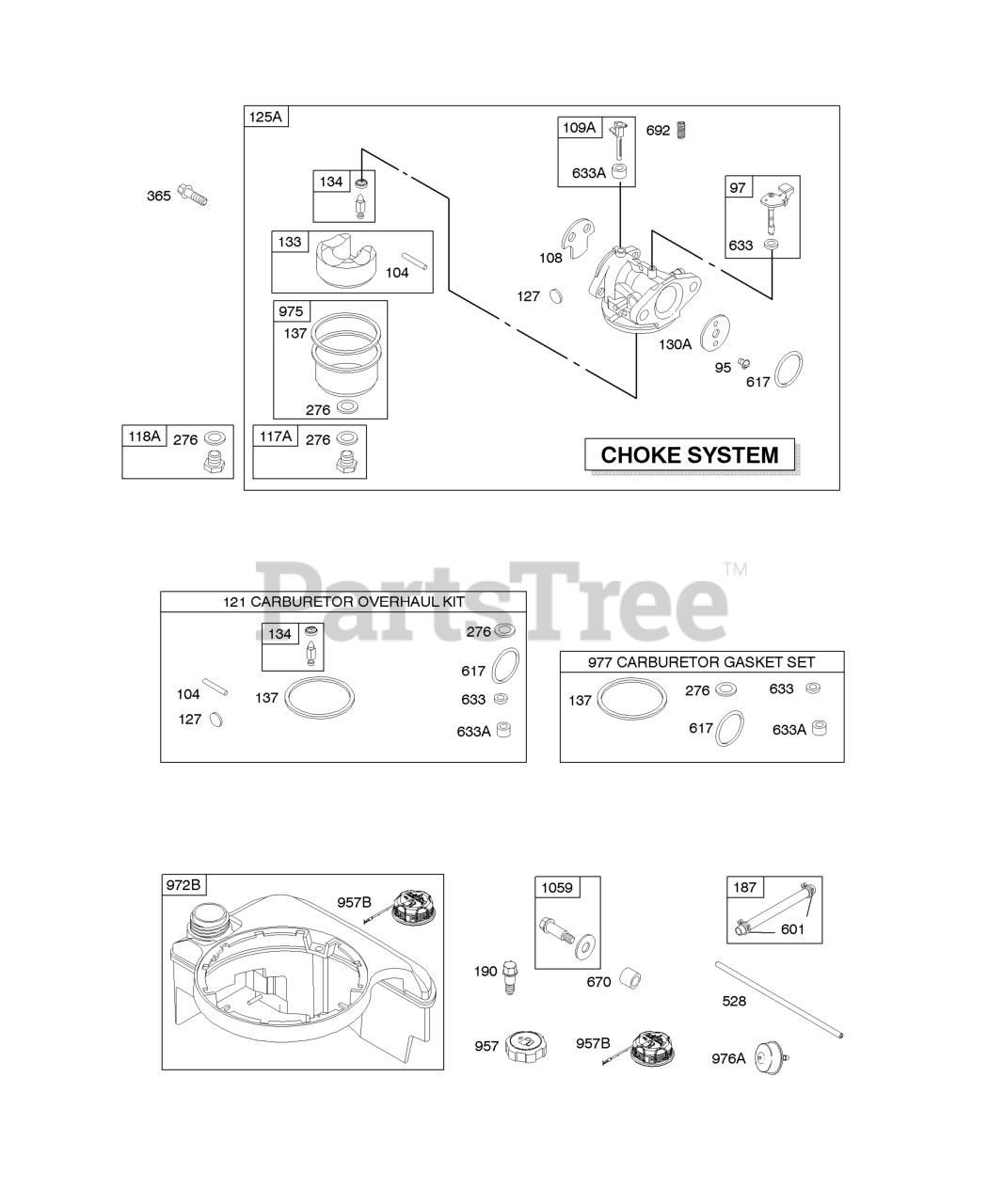

120502-0354-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

Carburetor, Fuel Supply Parts Diagram

  • Title

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 493267

Shaft-Throttle

$16.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 691182

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109A

Briggs & Stratton 498593

Shaft-Choke

$15.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 498975

Jet-Main
(Superseded to 798660)

Note: (Standard)

$19.99

$

In Stock, Qty 5

0

118A

Briggs & Stratton 496495

Jet-Main

Note: (High Altitude)

$

$

Not available

121

Briggs & Stratton 498260

Kit-Carburetor Overhaul

$16.99

$

In Stock, Qty 20+

0

125A

Briggs & Stratton 790276

Carburetor

Note: (Choke System)

$77.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130A

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

Note: (1/16" Thick)

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 8

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 690940

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, Qty 5

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: (Main Jet)

$6.99

$

In Stock, Qty 16

0

365

Briggs & Stratton 691688

Screw

Note: (Carburetor/Throttle Body)

$4.49

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 793006

Hose-Primer

$8.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

Note: (Throttle)

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

Note: (Choke)

$4.99

$

In Stock, only 2 left!

0

670

Briggs & Stratton 692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 5

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

957

Briggs & Stratton 397974S

Cap-Fuel Tank
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

957B

Briggs & Stratton 699985

Cap-Fuel Tank
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972B

Briggs & Stratton 699374

Tank-Fuel

$64.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

976A

Briggs & Stratton 793382

PRIMER, Carburetor

Note: Used After Code Date 11051500

$10.99

$

In Stock, only 3 left!

0

976A

Briggs & Stratton 790221

Primer-Carburetor
(Superseded to 793382)

Note: Used Before Code Date 11051600

$10.99

$

In Stock, only 3 left!

0

977

Briggs & Stratton 498261

Gasket Set-Carburetor
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Kit-Screw/Washer

$7.49

$

In Stock, only 1 left!

0
