1204 (148-610-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Governor Parts Diagram

Garden Tractor

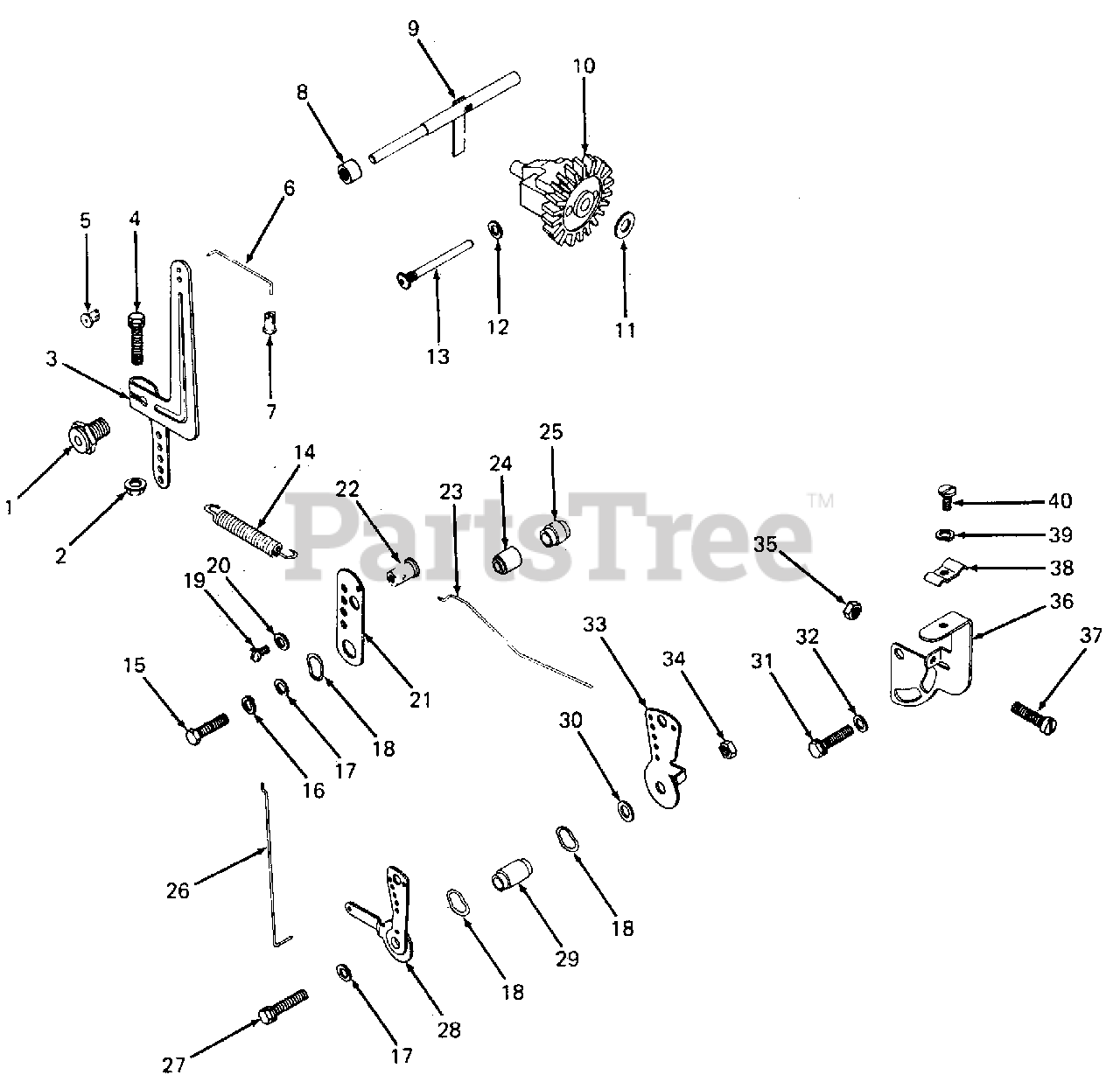

Governor Parts Diagram

  • Title

1

Cub Cadet KH-235476

Bushing, Governor

$

$

Not available

2

Cub Cadet KH-X-799-1

Palnut, 1/4-20

$

$

Currently unavailable

3

Cub Cadet KH-47-090-20

Lever, Governor

$

$

Not available

4

Cub Cadet KH-X-776-1

Screw, HC Sems, 1/4-20 X 1-1/4 Lg

$

$

Not available

5

Cub Cadet KH-47-158-06

Bushing, Linkage Retaining
(Superseded to KH-47-158-07)

$

$

Not available

6

Cub Cadet KH-47-079-05

Linkage, Governor
(Superseded to KH-47-079-10)

$

$

Not available

7

Cub Cadet KH-25-158-07

Bushing, Linkage Retaining
(Superseded to KH-25-158-11)

$

$

Not available

8

Cub Cadet KH-X-400-80

Spacer
(Superseded to KH-25-112-17-S)

$9.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-A-235256-S

Kit, Governor Cross Shaft

$46.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-A-235743-S

Kit, Governor Gear

$

$

Not available

11

Cub Cadet KH-237022

Washer, Thrust

$

$

Not available

12

Cub Cadet KH-25-468-01

Washer, Plain, 1/4

$

$

Not available

13

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-235496

Spring, Governor

$

$

Not available

15

Cub Cadet KH-X-5-26

Screw, HC, 1/4-20 X 1-1/2 Lg

$

$

Not available

16

Cub Cadet KH-X-20-1

Washer, Lock, 1/4

$

$

Not available

17

Cub Cadet KH-X-25-63

Washer, Plain, 1/4

$

$

Not available

18

Cub Cadet KH-275690

Washer, Wave

$

$

Not available

19

Cub Cadet KH-X-51-8

Screw, Sltd Pan Hd, #8-32 X 1/4 Lg

$

$

Currently unavailable

20

Cub Cadet KH-X-25-102

Washer, Plain, 1/4
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, Qty 6

0

21

Cub Cadet KH-235086

Bracket, Speed Control

$

$

Not available

22

Cub Cadet KH-48-755-10

Kit, Clamp

Note: (Includes Ref No. 19 & 20)

$22.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-47-079-08

Linkage, Throttle

$

$

Not available

24

Cub Cadet KH-235085

Spacer
(Superseded to KH-235085-S)

$

$

Not available

25

Cub Cadet KH-X-384-2

Spacer

$

$

Not available

26

Cub Cadet KH-47-079-01

Linkage, Choke

$14.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-X-132-9

Screw, HC Sems, 1/4-20 X 1-1/4 Lg

$

$

Not available

28

Cub Cadet KH-47-090-06

Lever, Choke Control

$

$

Not available

29

Cub Cadet KH-47-112-19

Spacer

$

$

Not available

30

Cub Cadet KH-X-25-82

Washer, Plain, 3/8

$

$

Not available

31

Cub Cadet KH-X-132-1

Screw, HC Sems, 1/4-20 X 3/8 Lg

$

$

Currently unavailable

32

Cub Cadet KH-X-25-72

Washer, Plain, 1/4

$

$

Not available

33

Cub Cadet KH-47-090-25

Lever, Throttle Control

$

$

Not available

34

Cub Cadet KH-X-76-2

Nut, Hex, 1/4-20

$

$

Currently unavailable

35

Cub Cadet KH-X-72-4

Nut, Hex, #8-32

$

$

Currently unavailable

36

Cub Cadet KH-47-126-09

Bracket

$

$

Not available

37

Cub Cadet KH-232556

Screw

$

$

Not available

38

Cub Cadet KH-47-237-02

Clamp
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0

39

Cub Cadet KH-X-19-1

Washer, Lock, #10

$

$

Currently unavailable

40

Cub Cadet KH-X-15-5

Screw, FHM, #10-24 X 1/2 Lg

$

$

Currently unavailable
