1204 (148-610-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Crankshaft Parts Diagram

Garden Tractor

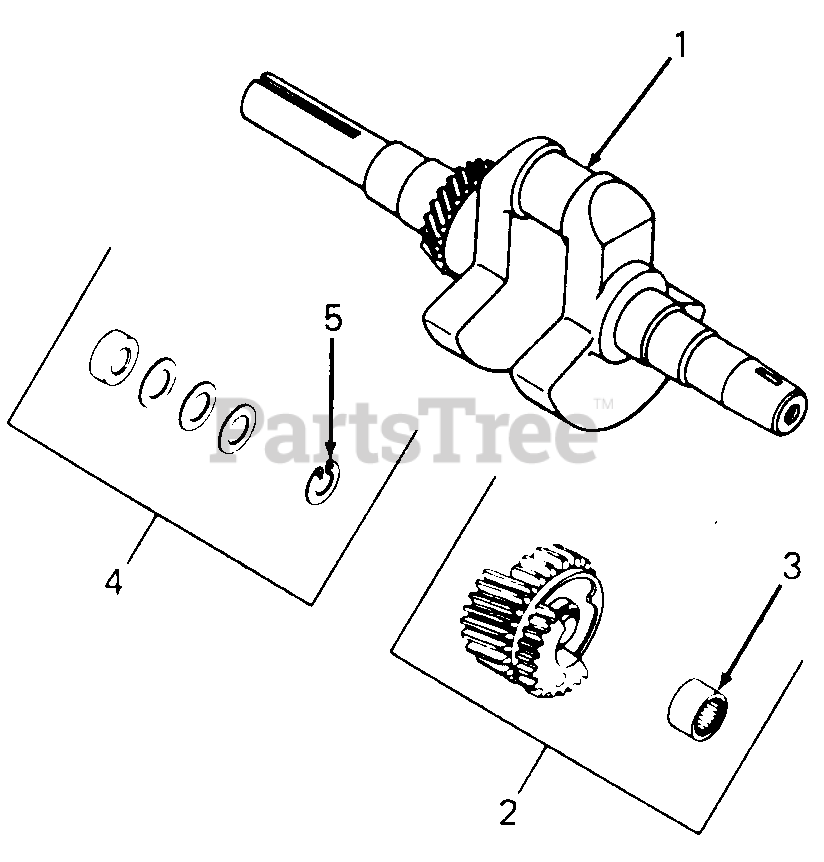

Crankshaft Parts Diagram

  • Title

1

Cub Cadet KH-47-142-32

Kit, Crankshaft (2-28/32 X 1-1/8 Tapped PTO)

$

$

Not available

2

Cub Cadet KH-45-043-03

Gear Assembly

Note: [Includes Ref No. 3 (Qty 2)]

$

$

Not available

3

Cub Cadet KH-47-030-01

Bearing, Needle

$

$

Not available

4

Cub Cadet KH-47-755-01

Kit, Spacer
(Superseded to KH-47-755-01-S)

Note: (Includes Ref No. 5)

$70.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-X-269-34

Retainer

$

$

Not available
