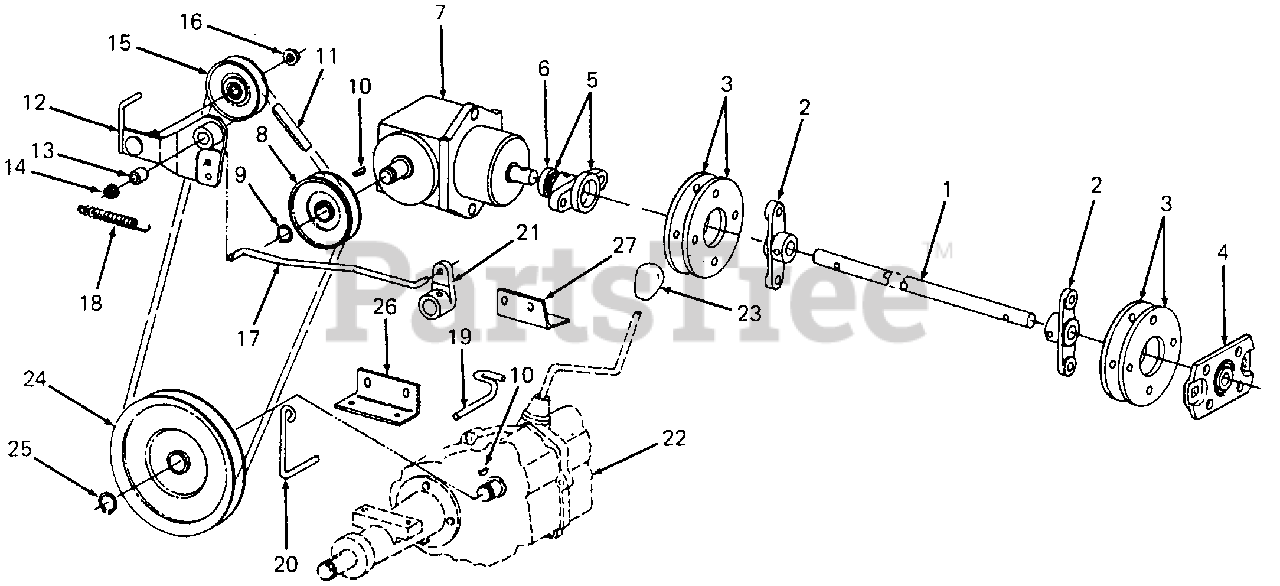

1204 (148-610-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Clutch and Controls Parts Diagram

Garden Tractor

Clutch and Controls Parts Diagram

  • Title

1

Cub Cadet 738-3062

Shaft, Drive

$

$

Not available

2

Cub Cadet 748-3001

Arm, Coupling

$

$

Not available

Cub Cadet 736-0300

Washer, Flat, .385 X .88 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.50 Lg GR5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 715-3000

Pin, Spirol Spring, 1/4 Dia X 1-3/8 Lg

$5.49

$

In Stock, Qty 20+

0

3

Cub Cadet 722-3000

Disc, Flexible Coupling

$28.99

$

In Stock, only 2 left!

0

4

Cub Cadet 703-0204

Flange Assy, Drive Shaft
(Superseded to 903-0204)

$40.99

$

In Stock, Qty 10

0

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 710-3034

Bolt, Carriage, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 5

0

Cub Cadet 726-3028

Retainer, Push-on Bolt, 3/8 Dia
(Superseded to 926-3028)

$

$

Not available

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 736-0300

Washer, Flat, .385 X .88 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 703-0794

Coupler Assy
(Superseded to 903-0794)

Note: (Includes Ref No. 6)

$244.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0300

Washer, Flat, .385 X .88 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 715-3000

Pin, Spirol Spring, 1/4 Dia X 1-3/8 Lg

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 741-3004

Bushing, Ball
(Superseded to 941-3004)

$51.99

$

In Stock, Qty 7

0

7

Cub Cadet 717-3000

Gear Box, Right Angle

Note: (Refer to Right Angle Gear Box for Components)

$

$

Currently unavailable

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 10

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 756-3000

Pulley, Drive 4L, 3.25 OD

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3006

Screw, Set, 5/16-18 X 3/8 Lg

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 716-0115

Ring, Snap, .625 Dia
(Superseded to 916-0115)

$

$

Not available

10

Cub Cadet 714-0868

Key, Woodruff #9, 3/16 X 3/4
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

11

Cub Cadet 754-3000

V-Belt
(Superseded to 954-3000)

$31.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-0011

Arm Assy, Clutch

$

$

Not available

Cub Cadet 710-0805

Screw, Hex Cap, 5/16-18 X 1.50 Lg GR5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3010

Washer, Flat, .406 X .812 X .135 Thk HDN

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 750-3001

Bushing, Clutch Arm

$

$

Currently unavailable

14

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 756-3001

Pulley, Drive-Idler

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 747-3003

Rod, Clutch

$

$

Not available

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.99

$

In Stock, Qty 13

0

18

Cub Cadet 732-3003

Spring, Extension

$

$

Not available

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

19

Cub Cadet 747-3004

Guide, Belt

$

$

Not available

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-3004

Washer, Flat, .406 X .87 X .105 Thk

$4.99

$

In Stock, Qty 6

0

20

Cub Cadet 747-3005

Guide, Belt

$

$

Not available

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 719-3001

Lever, Neutral Return

$

$

Not available

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.99

$

In Stock, Qty 13

0

Cub Cadet 736-3010

Washer, Flat, .406 X .812 X .135 Thk HDN

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 715-0114

Pin, Spirol Spring, 1/4 Dia X 1.5 Lg

$9.49

$

In Stock, Qty 5

0

22

Cub Cadet 717-3001

Transaxle

Note: (Refer to Transaxle for Components)

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

23

Cub Cadet 720-3000

Knob, Shifter
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

24

Cub Cadet 756-3002

V-Pulley 4L, 6.25 OD

$

$

Not available

Cub Cadet 710-3006

Screw, Set, 5/16-18 X 3/8 Lg

$4.49

$

In Stock, only 1 left!

0

25

Cub Cadet 716-0101

Ring, Snap, .75 Dia

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 703-0013

Bracket, Transmission Mounting, RH

$

$

Currently unavailable

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

27

Cub Cadet 703-0014

Bracket, Transmission Mounting, LH

$

$

Not available

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thd

$3.99

$

In Stock, Qty 20+

0
