1204 (147-610-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Frame Parts Diagram

Garden Tractor

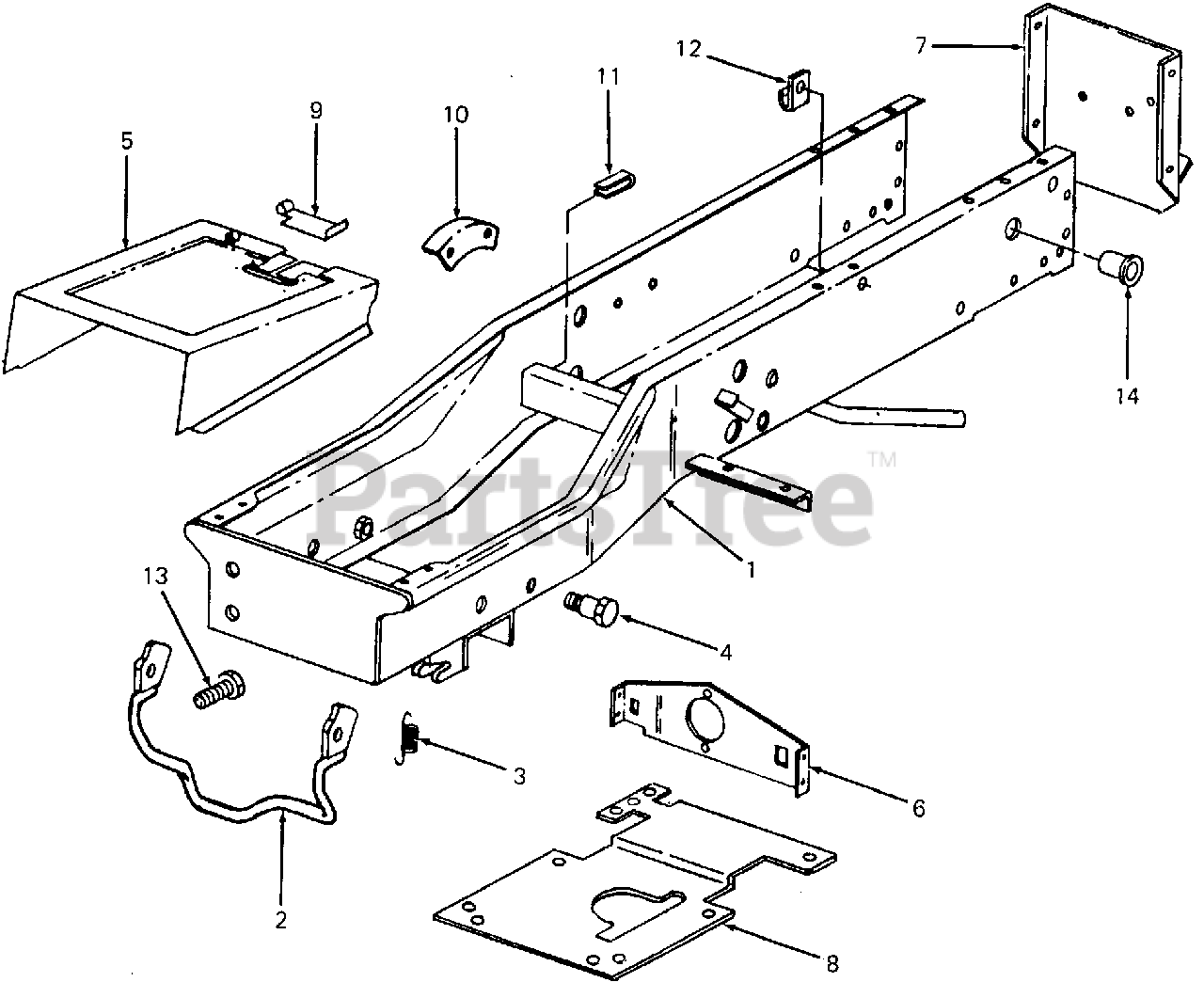

Frame Parts Diagram

  • Title

1

Cub Cadet 703-0018

Frame

Variations

Cub Cadet 703-0018-0498

FRAME ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 711-3005

Bushing, Front Axle Pivot Pin

$

$

Not available

Cub Cadet 711-3009

Hub, Lift Handle Stop

$

$

Not available

2

Cub Cadet 703-0028

Latch Assembly, Quick
(Superseded to 703-1726-0498)

$

$

Not available

Cub Cadet 711-3010

Pin, Clevis, 3/8 Dia X 1.06 Lg
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

4

Cub Cadet 738-3001

Bolt, Shoulder

$

$

Not available

Cub Cadet 736-3003

Washer, Flat, .531 X .688 X .054 Thk

$

$

Not available

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 759-3082

Cover, Frame w/Graphic

Note: (Includes Ref No. 9)

$

$

Not available

Cub Cadet 779-3394

Graphic, Caution

$

$

Not available

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-0034

Stop, 2nd Gear

$

$

Not available

Cub Cadet 735-3001

Cover, Gear Shift

$

$

Currently unavailable

Cub Cadet 728-3001

Rivet, Pop

$

$

Currently unavailable

Cub Cadet 703-0032

Plate, Gear Shift

$

$

Currently unavailable

Cub Cadet 710-3007

Screw, Hex Wash Hd Tapp, #12 X .38 Lg

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 703-0035

Bracket, Angle Drive

$

$

Not available

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18 GR5
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 726-3009

Clip, Cable

$

$

Not available

7

Cub Cadet 703-0036

Drawbar

Variations

Cub Cadet 703-0036-0498

BAR ASSEMBLY-D - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet 736-3004

Washer, Flat, .406 X .875 X .105 Thk

$4.99

$

In Stock, Qty 7

0

Cub Cadet 736-0133

Washer, Flat, .406 X 1.25 X .100 Thk

$5.49

$

In Stock, Qty 7

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, only 3 left!

0

8

Cub Cadet 703-0167

Screen, Lower Frame
(Superseded to 703-0167-0498)

Variations

Cub Cadet 703-0167-0498

LOWER FRAME SCREEN(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 726-3001

Nut, Speed, 5/16-18 Trd

$

$

Currently unavailable

Cub Cadet 710-3039

Screw, Hex Cap, 5/16-18 X .50 Lg GR5

$

$

Not available

Cub Cadet 710-0776

Screw, Hex AB Tapp, 1/4 X .62 Lg
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 703-0034

Stop, 2nd Gear

$

$

Not available

10

Cub Cadet 703-0828

Bracket, Height Indicator

$

$

Currently unavailable

Cub Cadet 728-0141

Rivet, .156 Dia X .250 Lg

$

$

Not available

Cub Cadet 779-3204

Graphic, Indicator Position

$

$

Not available

11

Cub Cadet 726-3013

Clip, Steering Bracket Cable

$

$

Not available

12

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3039

Screw, Hex Cap, 5/16-18 X .50 Lg GR5

$

$

Not available

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18 GR5
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3182

Screw, Adjustment, 1/2-20 X 1.0 Lg GR5

$

$

Not available

Cub Cadet 712-3029

Nut, Hex Jam, 1/2-20

$6.99

$

In Stock, Qty 6

0

14

Cub Cadet 723-3042

Bushing, Snap

$4.49

$

In Stock, only 1 left!

0
