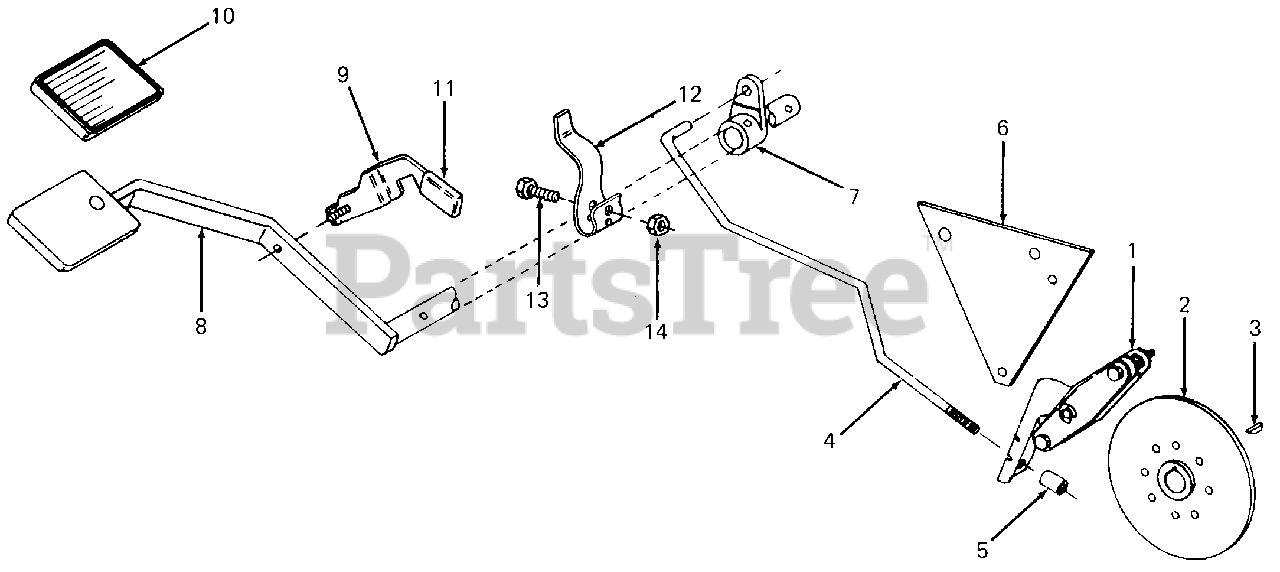

1204 (147-610-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Brakes and Connections Parts Diagram

Garden Tractor

Brakes and Connections Parts Diagram

  • Title

1

Cub Cadet 761-3000

Brake Assy, Caliper

$

$

Not available

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 736-3000

Washer, Flat, .281 X .75 X .105 Thk
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0463

Washer, Flat, .281 X .625 X .052 Thk

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 761-3001

Disc, Brake

$

$

Not available

3

Cub Cadet 714-0868

Key, Woodruff #9, 3/16 X 3/4 Lg
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

4

Cub Cadet 747-3000

Rod, Brake

$

$

Not available

Cub Cadet 714-0474

Pin, Cotter, 1/8 X 3/4 Lg

$4.99

$

In Stock, Qty 13

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 750-3024

Spacer, .375 X .465 X 1.0 Lg

$

$

Not available

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

6

Cub Cadet 703-0003

Plate, Brake Spacer

$

$

Not available

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 748-3006

Lever, Brake Rod

Variations

Cub Cadet 748-3006-0498

BRAKE LEVER ROD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 748-3006-0637

BRAKE LEVER ROD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 748-3006-0685

BRAKE LEVER ROD - CUB BLUE (0685)

$

$

Not available

Cub Cadet 748-3006-0691

BRAKE LEVER ROD - BLACK JACK (0691)

$

$

Not available

Cub Cadet 748-3006-0692

BRAKE LEVER ROD - AGWAY BLUE (0692)

$

$

Not available

$

$

Cub Cadet 715-0114

Pin, Spirol Spring, 1/4 Dia X 1.5 Lg

$9.49

$

In Stock, Qty 20+

0

8

Cub Cadet 703-0845

Pedal Assy, Clutch

$

$

Currently unavailable

Cub Cadet 715-0114

Pin, Spirol Spring, 1/4 Dia X 1.5 Lg

$9.49

$

In Stock, Qty 20+

0

9

Cub Cadet 703-1393

Bracket, Parking Brake

Variations

Cub Cadet 703-1393-0498

BRACKET ASSEMBLY-PARKING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

Cub Cadet 736-3001

Washer, Wave, 1/4 Dia

$

$

Not available

10

Cub Cadet 724-3000

Pad, Pedal
(Superseded to 924-3000)

$19.99

$

In Stock, Qty 9

0

11

Cub Cadet 720-3019

Grip, Parking Brake
(Superseded to 920-3019)

$

$

Not available

12

Cub Cadet 732-3039

Spring, Switch Operating

$

$

Not available

Cub Cadet 715-0114

Pin, Spirol Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, Qty 20+

0

Cub Cadet 726-3000

Nut, Speed

$

$

Not available

13

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0
