12004 TC (1600) - Toro Twister Utility Vehicle (SN: 280000001 - 280999999) (2008) TRANSAXLE ASSEMBLY NO. 104-6898 Parts Diagram

Twister Utility Vehicle

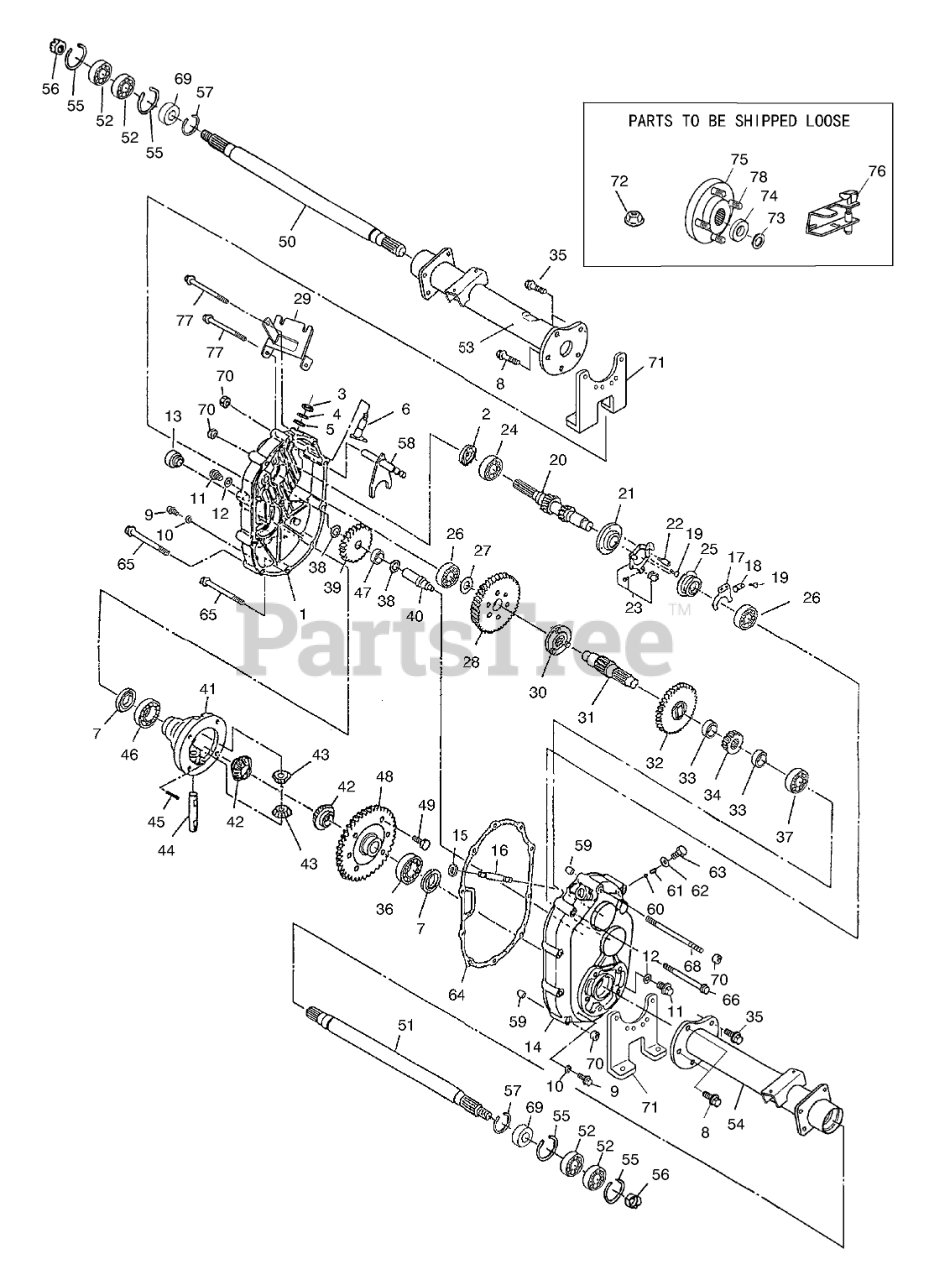

TRANSAXLE ASSEMBLY NO. 104-6898 Parts Diagram

  • Title

1

Toro 104-1601

CASE-LH, COMPLETE

$691.99

$

Usually ships in 3-6 days

0

2

Toro 104-1602

SEAL-OIL

$15.99

$

Usually ships in 3-6 days

0

3

Toro 104-1603

SEAL-OIL

$11.99

$

Usually ships in 3-6 days

0

4

Toro 104-1604

RING-SNAP

$0.99

$

Usually ships in 3-6 days

0

5

Toro 104-1605

SPACER

$17.99

$

Usually ships in 3-6 days

0

6

Toro 104-1606

SHAFT-SELECTOR

$148.99

$

Usually ships in 3-6 days

0

7

Toro 104-1607

SEAL-OIL

$21.99

$

Usually ships in 3-6 days

0

8

Toro 104-1608

BOLT-FLANGE

$2.49

$

Usually ships in 3-6 days

0

9

Toro 104-1609

PLUG-CHECK, OIL

$2.99

$

Usually ships in 3-6 days

0

10

Toro 104-1610

GASKET

$3.49

$

Usually ships in 3-6 days

0

11

Toro 104-1611

PLUG-DRAIN, OIL

$6.99

$

Usually ships in 3-6 days

0

12

Toro 104-1612

GASKET

$3.49

$

Usually ships in 3-6 days

0

13

Toro 104-1613

PLUG-FILLER, OIL

$12.99

$

In Stock, only 2 left!

0

14

Toro 104-1614

CASE-COMPLETE, RH

$691.99

$

Usually ships in 3-6 days

0

15

Toro 104-1615

SEAL-OIL

$10.99

$

Usually ships in 3-6 days

0

16

Toro 104-1616

SHAFT-GOVERNOR

$54.99

$

Usually ships in 3-6 days

0

17

Toro 104-1617

FORK-GOVERNOR

$22.99

$

Usually ships in 3-6 days

0

18

Toro 104-1618

STOPPER

$

$

Not available

19

Toro 104-1619

SCREW AND WASHER ASM

$12.99

$

Usually ships in 3-6 days

0

20

Toro 104-7002

Shaft-Input, Complete
(Superseded to 104-7020)

$1008.99

$

Usually ships in 3-6 days

0

21

Toro 104-1621

BASE-GOVERNOR

$226.99

$

Usually ships in 3-6 days

0

22

Toro 104-1622

PIN-LOCK

$5.99

$

Usually ships in 3-6 days

0

23

Toro 104-1623

UNIT-PLATE, GOVERNOR

$50.99

$

Usually ships in 3-6 days

0

24

Toro 104-1624

BEARING-BALL

$55.99

$

Usually ships in 3-6 days

0

25

Toro 104-1625

SLEEVE-GOVERNOR

$344.99

$

Usually ships in 3-6 days

0

26

Toro 104-1626

BEARING-BALL

$42.99

$

Usually ships in 3-6 days

0

27

Toro 104-1627

SPACER

$7.99

$

Usually ships in 3-6 days

0

28

Toro 104-1628

GEAR

$748.99

$

Usually ships in 3-6 days

0

29

Toro 104-1629

BRACKET-WIRE, CHANGE

$47.99

$

Usually ships in 3-6 days

0

30

Toro 104-1630

CLUTCH-PIN

$583.99

$

Usually ships in 3-6 days

0

31

Toro 104-1631

SHAFT-CENTER

$407.99

$

Usually ships in 3-6 days

0

32

Toro 104-1632

GEAR

$653.99

$

Usually ships in 3-6 days

0

33

Toro 104-1633

COLLAR

$109.99

$

Usually ships in 3-6 days

0

34

Toro 104-1634

GEAR

$221.99

$

Usually ships in 3-6 days

0

35

Toro 104-1635

BOLT-FLANGE

$13.99

$

Usually ships in 3-6 days

0

36

Toro 104-1636

BEARING-BALL

$110.99

$

Usually ships in 3-6 days

0

37

Toro 104-1637

BEARING-BALL

$70.99

$

Usually ships in 3-6 days

0

38

Toro 104-1638

SPACER

$11.99

$

Usually ships in 3-6 days

0

39

Toro 104-1639

GEAR

$423.99

$

Usually ships in 3-6 days

0

40

Toro 104-1640

SHAFT-COUNTER

$143.99

$

Usually ships in 3-6 days

0

41

Toro 104-1641

CASE-DIFFERENTIAL

$703.99

$

Usually ships in 3-6 days

0

42

Toro 104-1642

GEAR-SIDE, DIFFERENTIAL

$

$

Not available

43

Toro 104-1643

PINION-DIFFERENTIAL

$

$

Not available

44

Toro 104-1644

SHAFT-DIFFERENTIAL

$124.99

$

Usually ships in 3-6 days

0

45

Toro 104-1645

PIN

$32.99

$

Usually ships in 3-6 days

0

46

Toro 104-1646

BEARING-BALL

$60.99

$

Usually ships in 3-6 days

0

47

Toro 104-1647

BEARING-NEEDLE

$82.99

$

Usually ships in 3-6 days

0

48

Toro 104-1648

GEAR

$1087.99

$

Usually ships in 3-6 days

0

49

Toro 104-1649

BOLT

$2.99

$

Usually ships in 3-6 days

0

50

Toro 104-1650

SHAFT-AXLE, LH

$1090.99

$

Usually ships in 3-6 days

0

51

Toro 104-1651

SHAFT-AXLE, RH

$1090.99

$

Usually ships in 3-6 days

0

52

Toro 104-1652

BEARING-BALL

$83.99

$

Usually ships in 3-6 days

0

53

Toro 104-1653

CASE-AXLE, LH

$681.99

$

Usually ships in 3-6 days

0

54

Toro 104-1654

CASE-AXLE, RH

$681.99

$

Usually ships in 3-6 days

0

55

Toro 104-1655

RING-SNAP

$5.49

$

Usually ships in 3-6 days

0

56

Toro 104-1656

NUT-CASTLE

$14.99

$

Usually ships in 3-6 days

0

57

Toro 104-1657

RING-SNAP

$3.49

$

In Stock, only 1 left!

0

58

Toro 104-6870

SHAFT-SHIFT, COMPLETE

$437.99

$

Usually ships in 3-6 days

0

59

Toro 104-1659

KNOCK-PIPE

$5.49

$

Usually ships in 3-6 days

0

60

Toro 104-1660

BALL-STEEL

$1.99

$

Usually ships in 3-6 days

0

61

Toro 104-1661

SPRING

$4.99

$

Usually ships in 3-6 days

0

62

Toro 104-1662

GASKET

$3.99

$

Usually ships in 3-6 days

0

63

Toro 104-1663

BOLT

$1.49

$

Usually ships in 3-6 days

0

64

Toro 104-1664

GASKET

$24.99

$

Usually ships in 3-6 days

0

65

Toro 104-1665

BOLT-FLANGE

$2.49

$

Usually ships in 3-6 days

0

66

Toro 104-1666

BOLT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

68

Toro 104-6866

BOLT

$

$

Not available

69

Toro 104-6867

COLLAR

$197.99

$

Usually ships in 3-6 days

0

70

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 11

0

71

Toro 104-1671

BRACKET-AXLE

$175.99

$

Usually ships in 3-6 days

0

72

Toro 104-1672

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

73

Toro 104-1673

WASHER-SPRING

$

$

Not available

74

Toro 104-1674

WASHER

$2.49

$

Usually ships in 3-6 days

0

75

Toro 104-1675

HUB

$662.99

$

Usually ships in 3-6 days

0

76

Toro 104-6860

Lever-Select

$49.99

$

Usually ships in 3-6 days

0

77

Toro 104-6869

BOLT-FLANGE

$18.99

$

Usually ships in 3-6 days

0

78

Toro 104-8649

STUD

$6.49

$

Usually ships in 3-6 days

0
