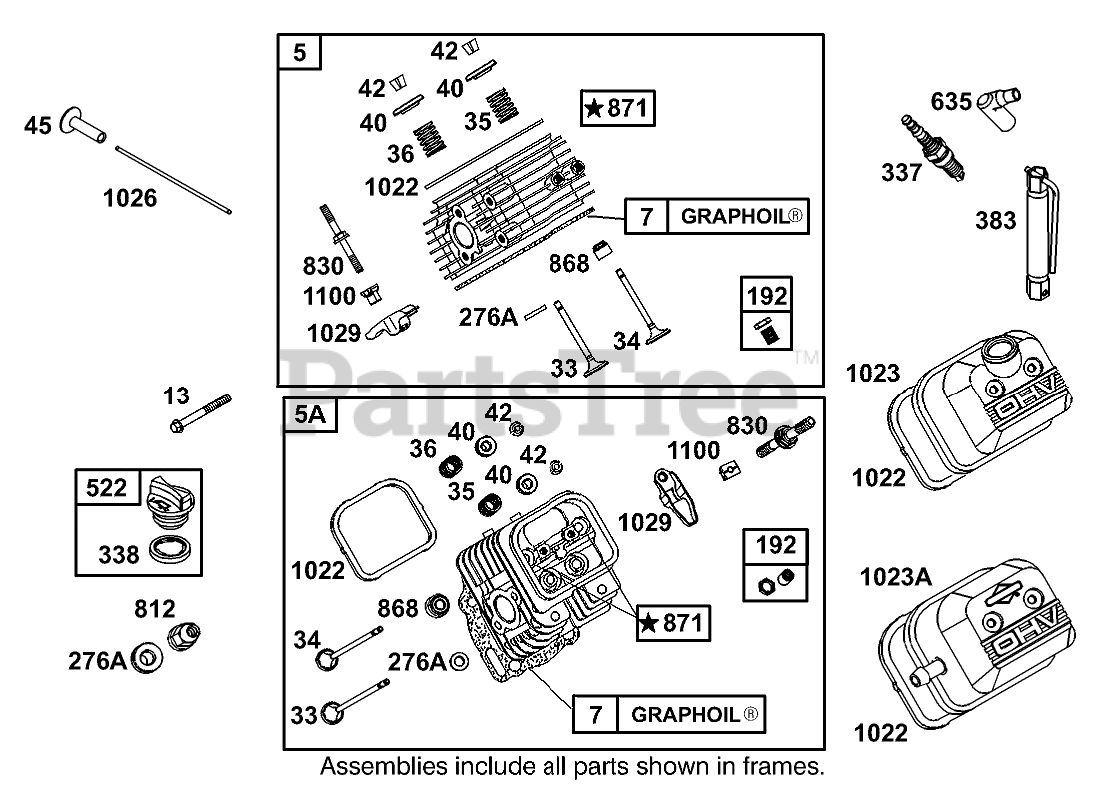

12004 TC (1600) - Toro Twister Utility Vehicle (SN: 280000001 - 280999999) (2008) CYLINDER HEAD AND COVER ASSEMBLY BRIGGS AND STRATTON 303447-1319-E1 Parts Diagram

Twister Utility Vehicle

CYLINDER HEAD AND COVER ASSEMBLY BRIGGS AND STRATTON 303447-1319-E1 Parts Diagram

  • Title

5

Briggs & Stratton 808381

Head-Cylinder (Cylinder No. 1)
(Superseded to 809200)

Note: Obtain parts from www.briggsandstratton.com

$226.99

$

In Stock, only 4 left!

0

5A

Briggs & Stratton 808382

Head-Cylinder (Cylinder No. 2)
(Superseded to 809201)

Note: Obtain parts from www.briggsandstratton.com

$220.99

$

In Stock, Qty 5

0

7

Briggs & Stratton 806085

Gasket-Head, Cylinder
(Superseded to 806085S)

Note: Obtain parts from www.briggsandstratton.com

$28.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 806085

Gasket-Head, Cylinder
(Superseded to 806085S)

Note: Included in Engine Gasket Set-Ref. 358.

$28.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 806085

Gasket-Head, Cylinder
(Superseded to 806085S)

Note: Included in Valve Gasket Set-Ref. 1095.

$28.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 692059

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 807681

Valve-Exhaust
(Superseded to 808687)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

In Stock, Qty 14

0

34

Briggs & Stratton 807680

Valve-Intake

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 692084

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 692084

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 11

0

40

Briggs & Stratton 692058

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

Keeper-Valve

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 807623

Adjuster-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: Included in Valve Gasket Set-Ref. 1095.

$6.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

338

Briggs & Stratton 691312

Seal-O Ring
(Superseded to 809500)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 16

0

338

Briggs & Stratton 691312

Seal-O Ring
(Superseded to 809500)

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 16

0

338

Briggs & Stratton 691312

Seal-O Ring
(Superseded to 809500)

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 16

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

522

Briggs & Stratton 491832

Plug-Fill, Dipstick
(Superseded to 809500)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 16

0

635

Briggs & Stratton 692076

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

812

Briggs & Stratton 692055

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 9

0

830

Briggs & Stratton 691544

Stud-Rocker Arm
(Superseded to 809157)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 14

0

868

Briggs & Stratton 691963

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 691963

Seal-Valve

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 691963

Seal-Valve

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 692057

Bushing-Guide, Valve
(Superseded to 84002672)

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, only 2 left!

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Engine Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Valve Gasket Set-Ref. 1095.

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 690758

Cover-Valve
(Superseded to 843749)

Note: Obtain parts from www.briggsandstratton.com

$39.99

$

Usually ships in 2-12 days

0

1023A

Briggs & Stratton 691558

Cover-Rocker

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 691836

Rod-Push

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, Qty 20+

0

Briggs & Stratton 691758

Rod-Push

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 691543

Arm-Rocker
(Superseded to 807323)

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, only 2 left!

0

1100

Briggs & Stratton 690973

Pivot-Arm, Rocker
(Superseded to 791959)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 2 left!

0
