12004 TC (1600) - Toro Twister Utility Vehicle (SN: 270000001 - 270999999) (2007) HYDRAULIC BRAKE ASSEMBLY Parts Diagram

Twister Utility Vehicle

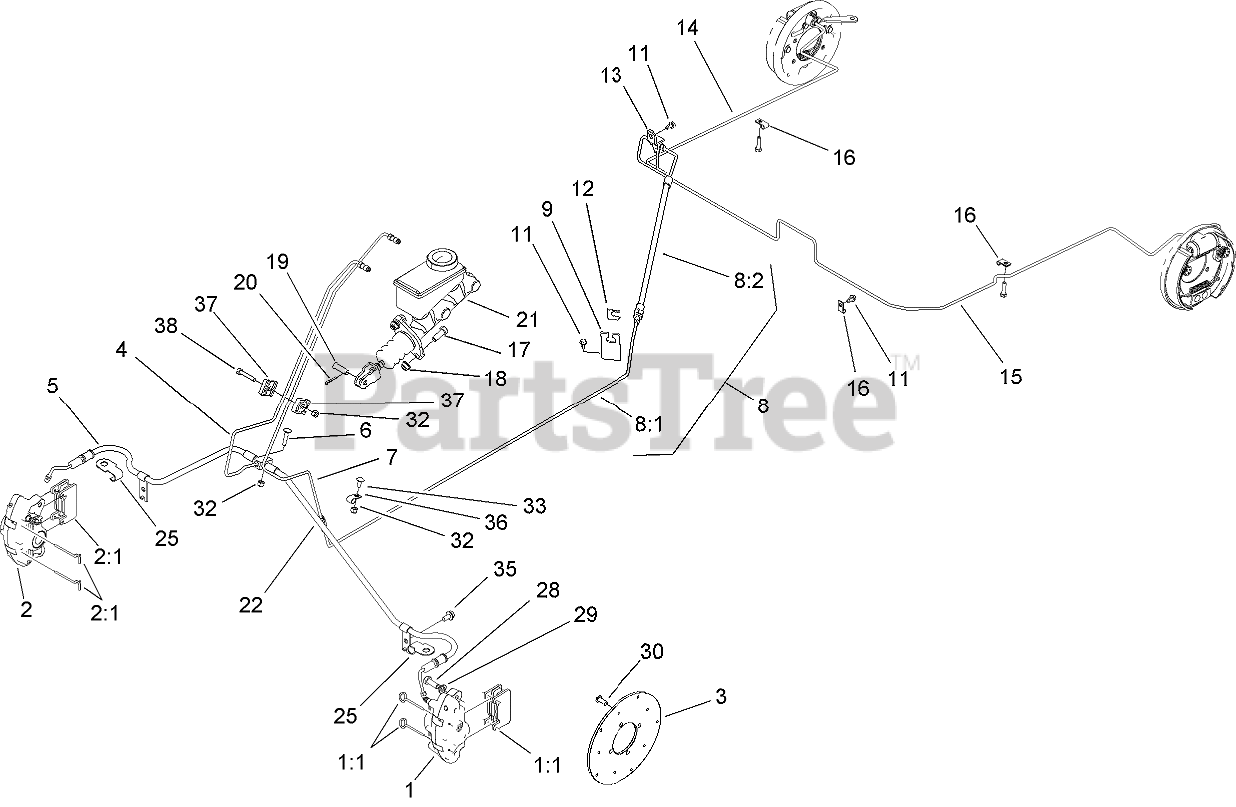

HYDRAULIC BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 107-0361

CALIPER-LH

$500.99

$

Usually ships in 3-6 days

0

1:1

Toro 107-0708

FRICTION PAD AND PIN KIT

$184.99

$

In Stock, only 1 left!

0

2

Toro 107-0362

CALIPER-RH

$

$

Not available

2:1

Toro 107-0708

FRICTION PAD AND PIN KIT

$184.99

$

In Stock, only 1 left!

0

3

Toro 104-6891

ROTOR

$127.99

$

Usually ships in 3-6 days

0

4

Toro 104-6798

TUBE-BRAKE, FRONT

$67.99

$

Usually ships in 3-6 days

0

5

Toro 104-7256

FRONT HOSE ASM

$

$

Not available

6

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

7

Toro 104-6793

TUBE-BRAKE, REAR

$62.99

$

Usually ships in 3-6 days

0

8

REAR BRAKE HOSE ASM

Note: Not serviced separately

$

$

Not available

8:1

Toro 104-6794

TUBE-BRAKE, REAR

$63.99

$

Usually ships in 3-6 days

0

8:2

Toro 104-6795

HOSE-BRAKE, REAR

$135.99

$

Usually ships in 3-6 days

0

9

Toro 104-6799

BRACKET-HOSE, BRAKE

$

$

Not available

11

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

12

Toro 104-7092

CLIP

$

$

Not available

13

Toro 87-3560

TEE

$16.99

$

Usually ships in 3-6 days

0

14

Toro 104-6796

TUBE-BRAKE, REAR (RH)

$122.99

$

Usually ships in 3-6 days

0

15

Toro 110-2604

TUBE-BRAKE, REAR (LH)

$

$

Currently unavailable

16

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

20

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

21

Toro 104-6782

MASTER CYLINDER ASM

$329.99

$

Usually ships in 3-6 days

0

22

Toro 87-3570

UNION

$4.99

$

Usually ships in 3-6 days

0

25

Toro 104-7073

BRACKET-HOSE

$

$

Not available

28

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

30

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

33

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

36

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

37

Toro 87-7660

CLAMP-TUBE

$

$

Not available

38

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0
