12004 TC (1600) - Toro Twister Utility Vehicle (SN: 270000001 - 270999999) (2007) BOX AND TAILGATE ASSEMBLY Parts Diagram

Twister Utility Vehicle

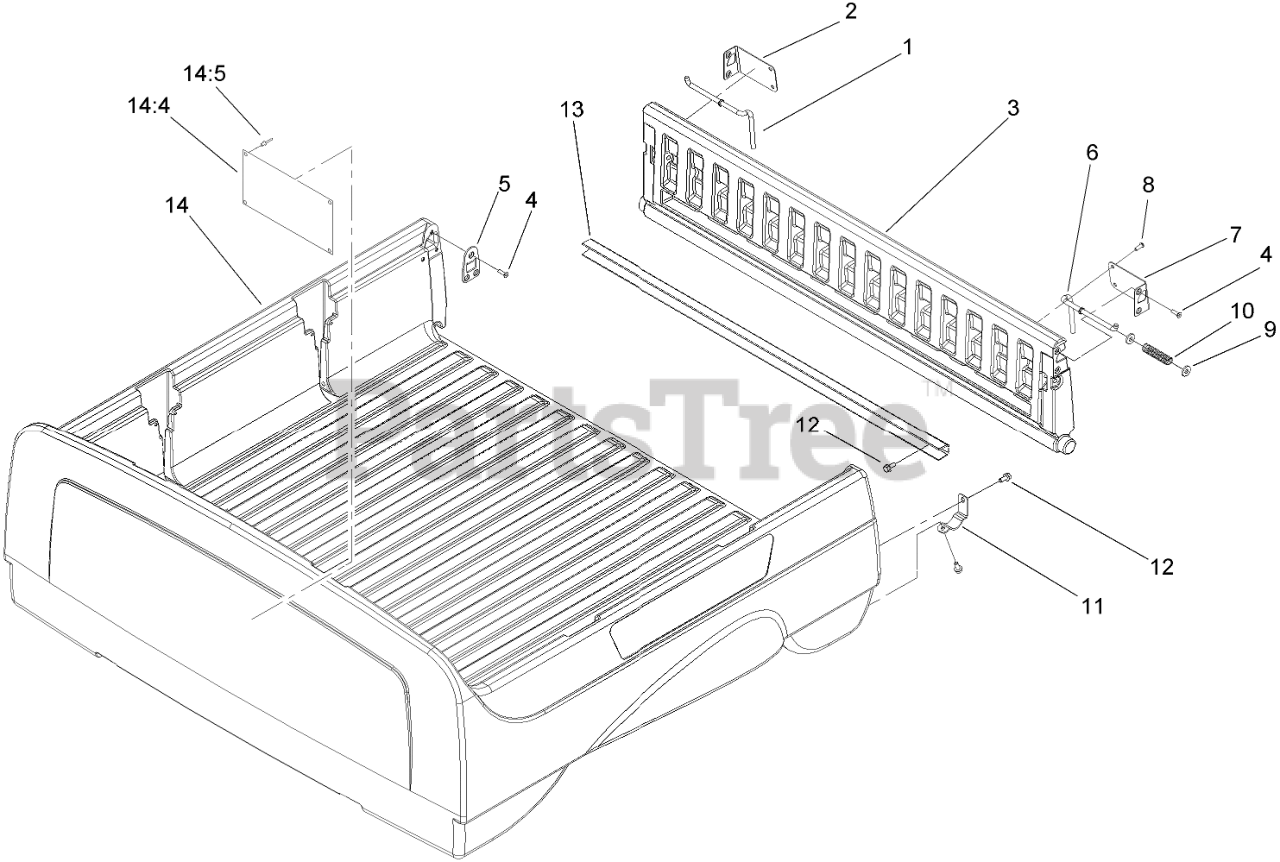

BOX AND TAILGATE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-7860

ROD-LATCH, RIGHT

$60.99

$

Usually ships in 3-6 days

0

2

Toro 99-7858

BRACKET-TAILGATE LATCH, RIGHT

$25.99

$

Usually ships in 3-6 days

0

3

Toro 99-7893

TAILGATE ASM

$608.99

$

Usually ships in 3-6 days

0

4

Toro 99-7334

SCREW
(Superseded to 3289-4)

$4.49

$

Usually ships in 3-6 days

0

5

Toro 99-7852

PLATE-STRIKER

$

$

Not available

6

Toro 99-7859

ROD-LATCH, LEFT

$60.99

$

Usually ships in 3-6 days

0

7

Toro 99-7857

BRACKET-TAILGATE LATCH, LEFT

$25.99

$

Usually ships in 3-6 days

0

8

Toro 99-7335

SCREW

$0.99

$

Usually ships in 3-6 days

0

9

Toro 99-7861

WASHER-LATCH

$16.99

$

Usually ships in 3-6 days

0

10

Toro 61-8880

SPRING

$12.99

$

Usually ships in 3-6 days

0

11

Toro 99-7286

BRACKET-PIVOT, TAILGATE

$41.99

$

Usually ships in 3-6 days

0

12

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

13

Toro 99-7867

CHANNEL-TAILGATE

$127.99

$

Usually ships in 3-6 days

0

14

Toro 104-7203

Box ASM
(Superseded to 120-4900)

$

$

Not available

14:4

Toro 99-7954

DECAL-NO RIDERS

$51.99

$

Usually ships in 3-6 days

0

14:5

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0
