12004 TC (1600) - Toro Twister Utility Vehicle (SN: 260000001 - 260999999) (2006) STEERING GEARBOX ASSEMBLY NO. 99-7660 Parts Diagram

Twister Utility Vehicle

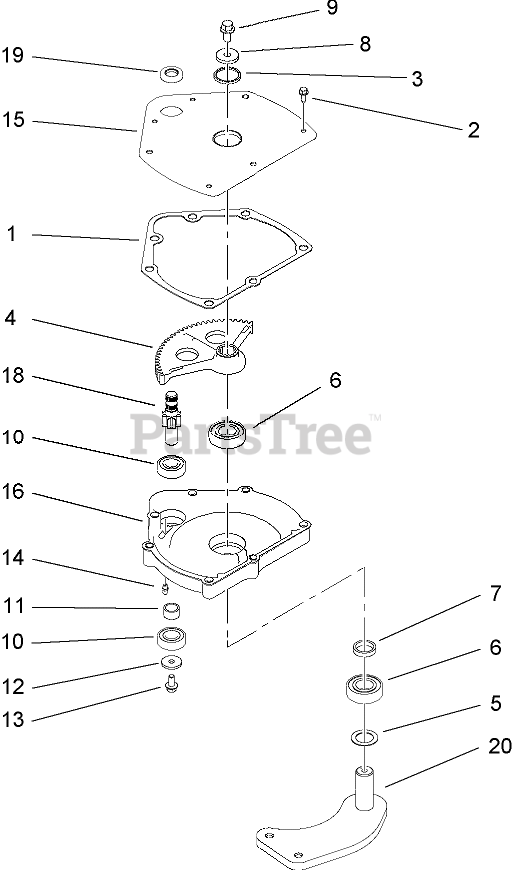

STEERING GEARBOX ASSEMBLY NO. 99-7660 Parts Diagram

  • Title

1

Toro 94-2135

GASKET

$9.49

$

Usually ships in 3-6 days

0

2

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

3

Toro 103118

SEAL

$21.99

$

In Stock, only 2 left!

0

4

Toro 99-7843

SECTOR-GEAR

$213.99

$

Usually ships in 3-6 days

0

5

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

6

Toro 251-82

BEARING-BALL

$20.99

$

In Stock, Qty 6

0

7

Toro 94-2218

SPACER-SHAFT, OUTPUT

$12.99

$

Usually ships in 3-6 days

0

8

Toro 104-6563

WASHER-STEPPED

$11.99

$

Usually ships in 3-6 days

0

9

Toro 104-7156

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

10

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

11

Toro 94-2217

SPACER-SHAFT, INPUT

$10.99

$

Usually ships in 3-6 days

0

12

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

13

Toro 98-3498

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 99-7656-03

COVER-HOUSING, STEERING

$

$

Not available

16

Toro 99-7658

HOUSING-STEERING

$133.99

$

Usually ships in 3-6 days

0

18

Toro 99-7650

GEAR-PINION

$

$

Not available

19

Toro 99-7657

SEAL-OIL

$19.99

$

Usually ships in 3-6 days

0

20

Toro 99-7601-03

ARM-PITMAN

$316.99

$

Usually ships in 3-6 days

0
