12004 TC (1600) - Toro Twister Utility Vehicle (SN: 260000001 - 260999999) (2006) PEDAL ASSEMBLY Parts Diagram

Twister Utility Vehicle

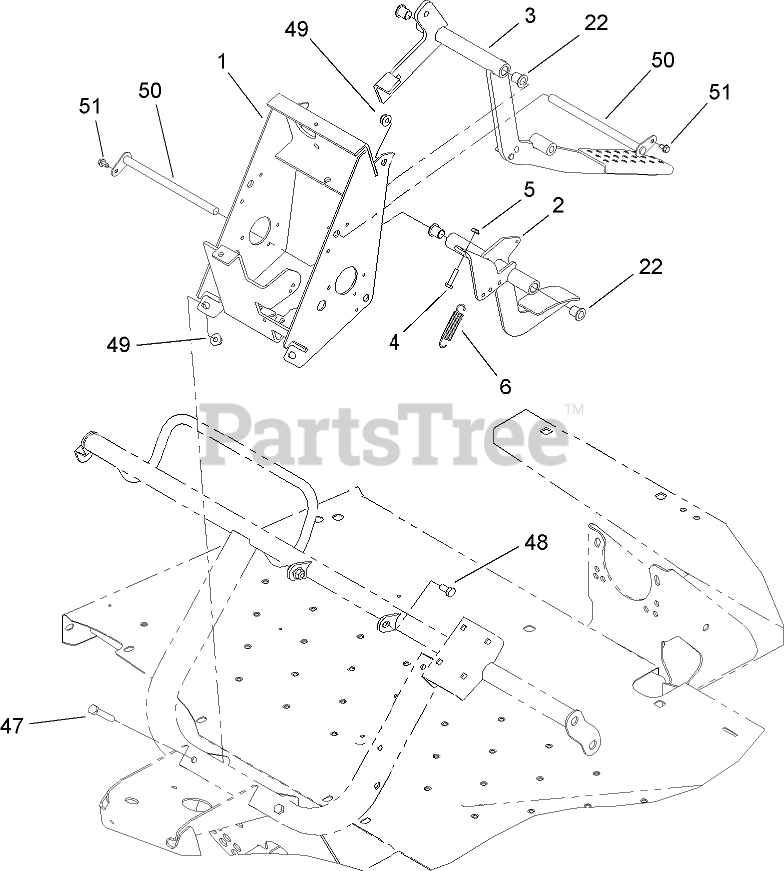

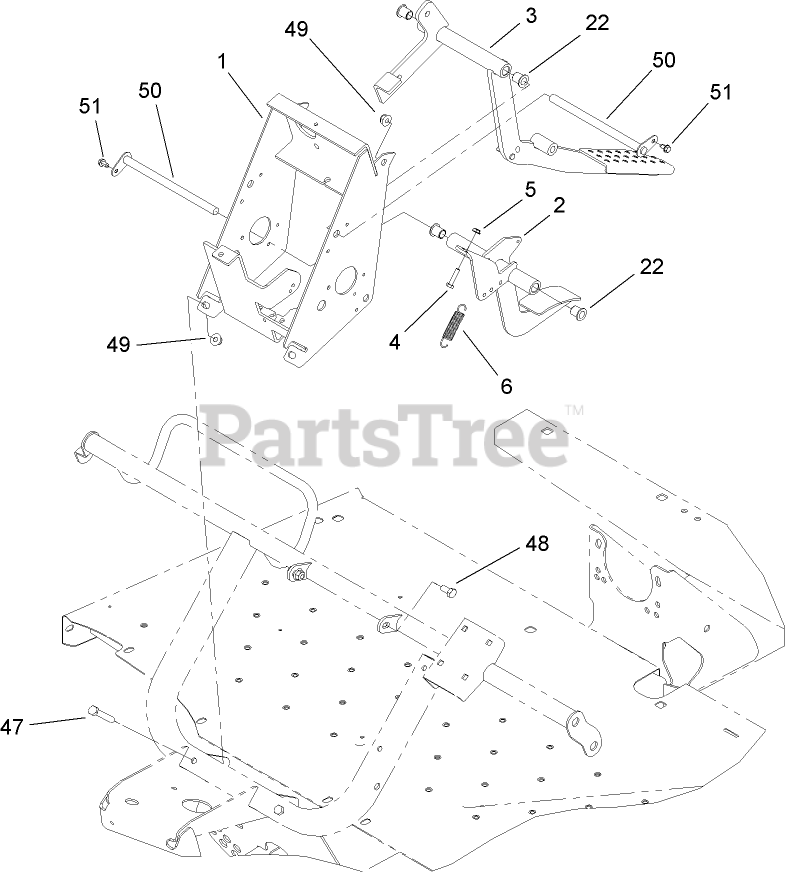

PEDAL ASSEMBLY Parts Diagram

  • Title
1

Toro 110-2605-03

FRAME-PEDAL

$

$

Not available

2

Toro 110-2607-03

PEDAL-THROTTLE

$244.99

$

Usually ships in 3-6 days

0

3

Toro 104-7170-03

Pedal-Brake

$268.99

$

Usually ships in 3-6 days

0

4

Toro 321-7

SCREW-HH

$5.49

$

In Stock, Qty 11

0

5

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

6

Toro 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 20+

0

22

Toro 256-155

BUSHING-FLANGE

$2.49

$

In Stock, only 2 left!

0

47

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

48

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

49

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

50

Toro 104-7164

PIVOT-PEDAL

$34.99

$

Usually ships in 3-6 days

0

51

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0
