12004 TC (1600) - Toro Twister Utility Vehicle (SN: 250000001 - 250999999) (2005) FRONT TIRE AND STEERING ASSEMBLY Parts Diagram

Twister Utility Vehicle

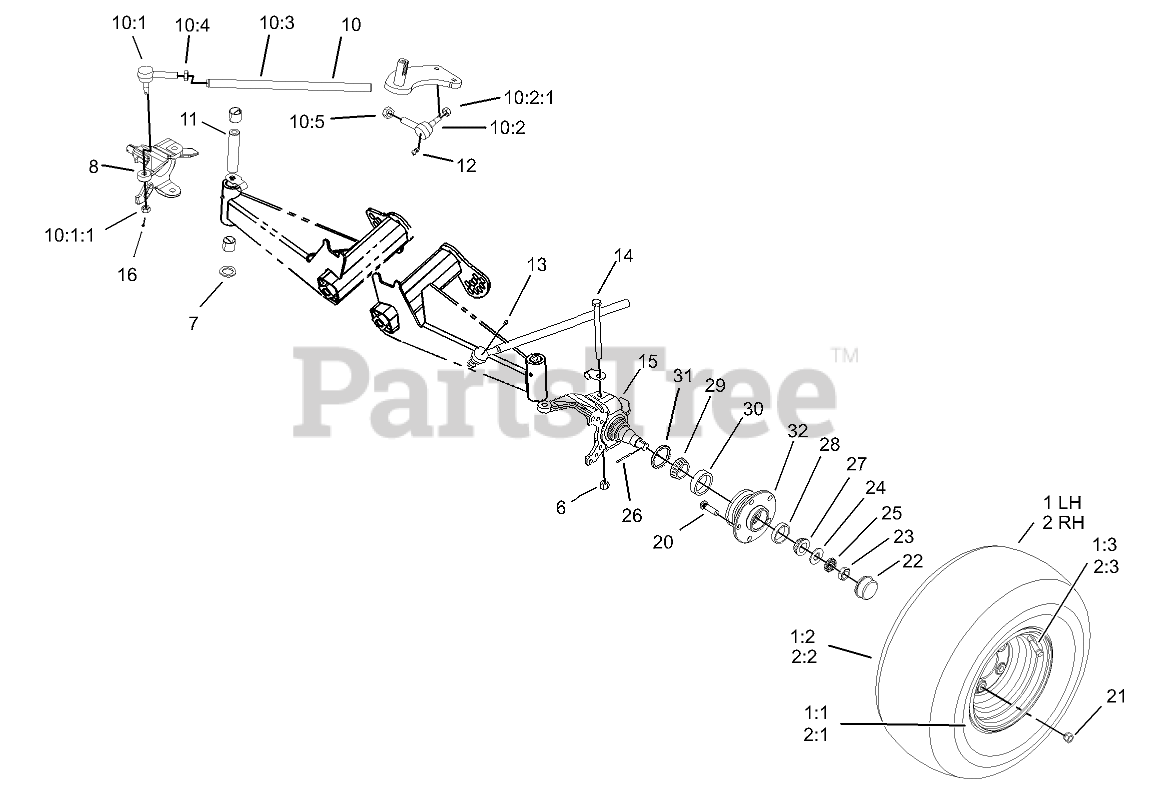

FRONT TIRE AND STEERING ASSEMBLY Parts Diagram

  • Title
1

Toro 104-6831

TIRE AND WHEEL ASM

$

$

Not available

1:1

Toro 104-6889

WHEEL-5 BOLT

$193.99

$

In Stock, only 1 left!

0

1:2

$331.99

$

Usually ships in 3-6 days

0

1:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

2

TIRE AND WHEEL ASM

$

$

Not available

2:1

Toro 104-6889

WHEEL-5 BOLT

$193.99

$

In Stock, only 1 left!

0

2:2

$331.99

$

Usually ships in 3-6 days

0

2:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 256-115

WASHER-THRUST

$2.49

$

Usually ships in 3-6 days

0

8

Toro 104-6877-03

SPINDLE-DISC, RH
(Superseded to 104-6877)

$320.99

$

Usually ships in 3-6 days

0

10

Rod-Tie

Note: Not serviced separately

$

$

Not available

10:1

Toro 112772

SOCKET-BALLJOINT
(Superseded to 112772-03)

$79.99

$

In Stock, only 1 left!

0

10:1:1

$1.49

$

Usually ships in 3-6 days

0

10:2

Toro 112771

SOCKET-BALLJOINT
(Superseded to 112771-03)

$79.99

$

In Stock, only 1 left!

0

10:2:1

$1.49

$

Usually ships in 3-6 days

0

10:3

Toro 99-7600-03

ROD-TIE

$54.99

$

Usually ships in 3-6 days

0

10:4

Toro 3220-11

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

10:5

Toro 3218-21

NUT-JAM

$4.49

$

Usually ships in 3-6 days

0

11

Toro 99-7499

SLEEVE-KINGPIN

$86.99

$

Usually ships in 3-6 days

0

12

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

15

Toro 104-6876-03

SPINDLE-DISC, LH
(Superseded to 104-6876)

$320.99

$

Usually ships in 3-6 days

0

16

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

20

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

21

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

22

Toro 241-119

CAP-DUST

$13.99

$

In Stock, only 2 left!

0

23

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

24

Toro 93-0309

WASHER-TAB

$4.49

$

Usually ships in 3-6 days

0

25

Toro 93-0307

NUT-LOCK, RETAINER

$4.49

$

Usually ships in 3-6 days

0

26

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

27

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

28

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

29

Toro 254-106

CONE-BEARING, TAPERED

$23.99

$

Usually ships in 3-6 days

0

30

Toro 254-107

CUP-BEARING, TAPERED

$11.99

$

In Stock, only 2 left!

0

31

Toro 87-3590

SEAL-BEARING

$17.99

$

Usually ships in 3-6 days

0

32

Toro 104-6809-03

HUB
(Superseded to 117-8071)

$227.99

$

Usually ships in 3-6 days

0
