12004 TC (1600) - Toro Twister Utility Vehicle (SN: 250000001 - 250999999) (2005) FRAME ASSEMBLY Parts Diagram

Twister Utility Vehicle

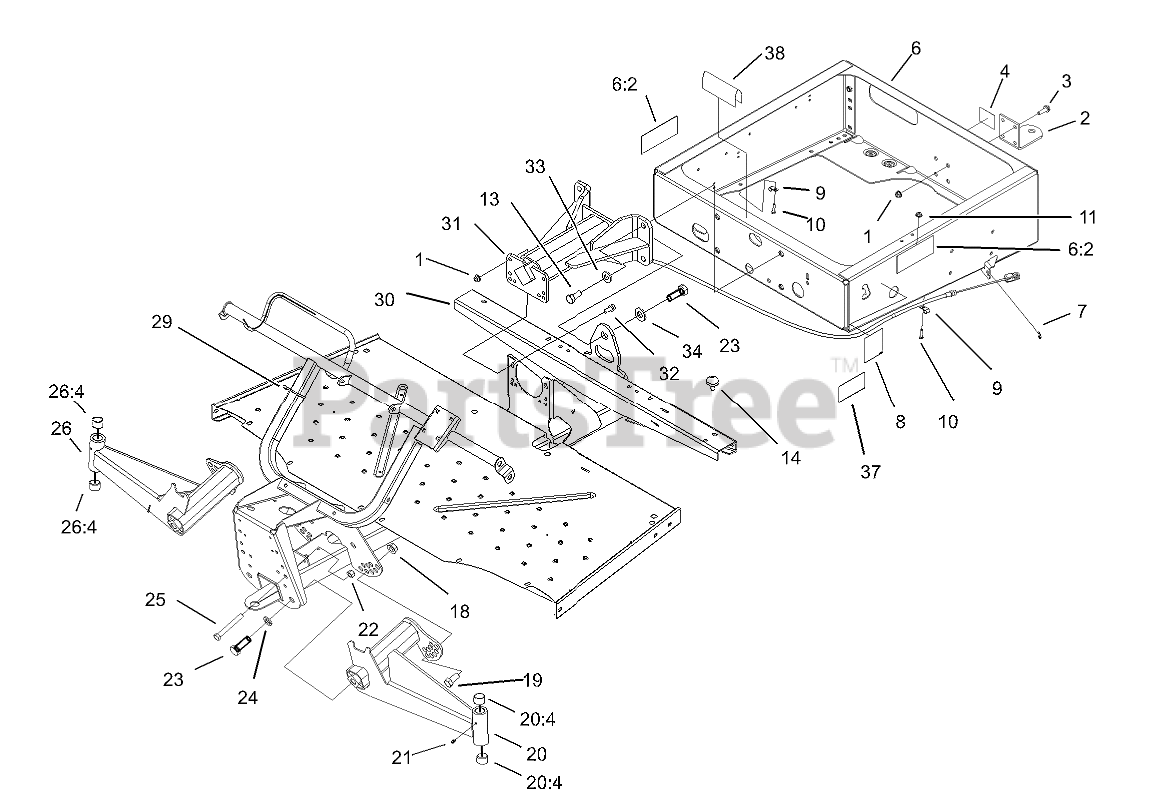

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 99-7654-03

HITCH-DUTY, LIGHT

$45.99

$

Usually ships in 3-6 days

0

3

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

4

Toro 99-7350

DECAL-RATING, HITCH (LIGHT DUTY)

$8.99

$

Usually ships in 3-6 days

0

6

Toro 99-7362

REAR FRAME ASM

$1528.99

$

Usually ships in 3-6 days

0

6:2

Toro 99-7345

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

7

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

8

Toro 99-7349

DECAL-INFORMATION, BOXLATCH

$

$

Not available

9

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

10

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 87-2440

BUMPER-RUBBER

$15.99

$

Usually ships in 3-6 days

0

18

Toro 32128-54

NUT-HF

$6.49

$

Usually ships in 3-6 days

0

19

Toro 3214-2

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

20

Toro 99-7685

LH A-ARM ASM

$

$

Not available

20:4

Toro 3-0348

BUSHING
(Superseded to 125-5196)

$7.49

$

Usually ships in 3-6 days

0

21

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

22

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 328-24

SCREW-HH

$26.99

$

In Stock, only 4 left!

0

24

Toro 3254-7

WASHER-LOCK, INT

$6.49

$

Usually ships in 3-6 days

0

25

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

26

Toro 99-7684

RH A-ARM ASM

$792.99

$

Usually ships in 3-6 days

0

26:4

Toro 3-0348

BUSHING
(Superseded to 125-5196)

$7.49

$

Usually ships in 3-6 days

0

29

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

30

Toro 104-7197-03

Front Frame ASM

$

$

Not available

31

Toro 99-7700

PIVOT YOKE ASM

$1107.99

$

Usually ships in 3-6 days

0

32

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

33

Toro 99-7667

WASHER-FLAT

$5.99

$

Usually ships in 3-6 days

0

34

Toro 87-3060

WASHER-HARDENED

$6.99

$

Usually ships in 3-6 days

0

37

Toro 104-6592

DECAL-CAPACITY (CE)

$

$

Not available

38

$

$

Not available
