12004 TC (1600) - Toro Twister Utility Vehicle (SN: 230000001 - 230999999) (2003) SHIFTER ASSEMBLY Parts Diagram

Twister Utility Vehicle

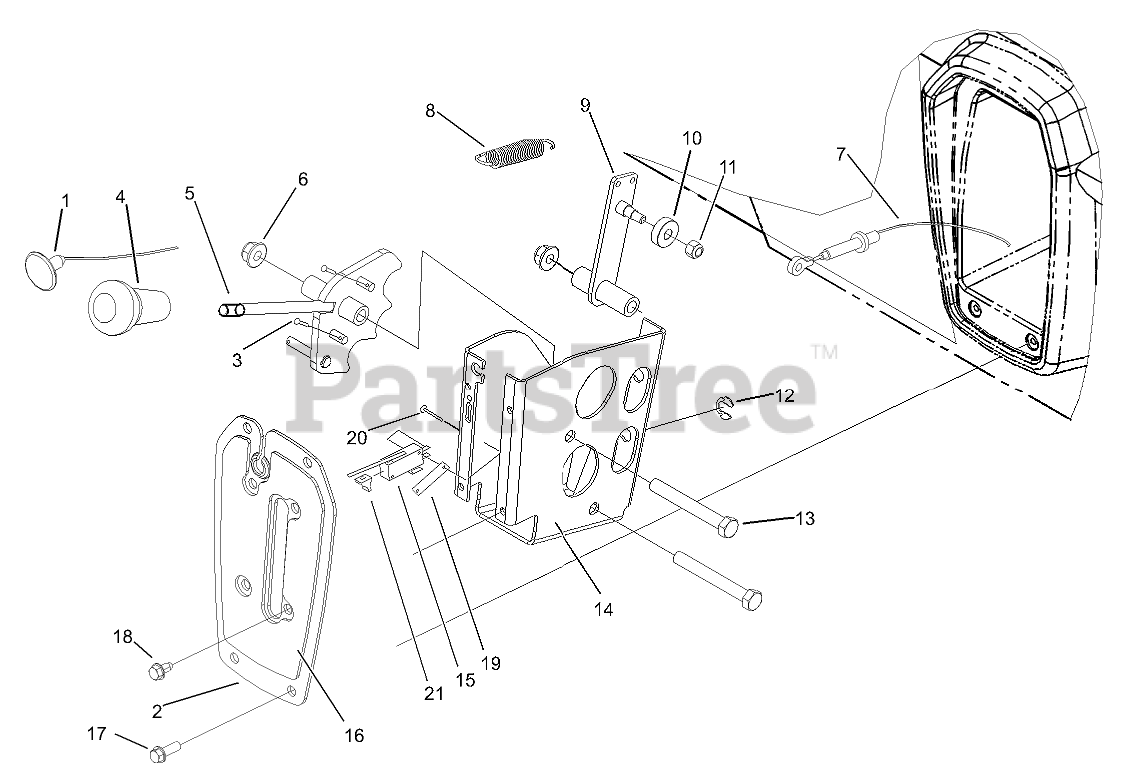

SHIFTER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-7111

CABLE-CHOKE

$49.99

$

Usually ships in 3-6 days

0

2

Toro 99-7887-03

PLATE-SHIFTER

$73.99

$

Usually ships in 3-6 days

0

3

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

4

Toro 99-7981

KNOB-GRIP, SOFT

$

$

Not available

5

Toro 99-7879

LEVER-SHIFTER

$307.99

$

Usually ships in 3-6 days

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-6896

Cable-Shift

$149.99

$

In Stock, only 2 left!

0

8

Toro 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, only 4 left!

0

9

Toro 99-7176

DETENT

$

$

Not available

10

Toro 251-307

BEARING-BALL
(Superseded to 251-259)

$16.99

$

In Stock, only 4 left!

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 32151-101

E-RING

$0.99

$

Usually ships in 3-6 days

0

13

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 104-6509-03

BRACKET-SHIFT

$136.99

$

Usually ships in 3-6 days

0

15

Toro 88-9932

SWITCH-MICRO

$36.99

$

In Stock, only 3 left!

0

16

Toro 99-7952

DECAL-SHIFTER

$34.99

$

In Stock, only 1 left!

0

17

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 13

0

18

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

19

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

20

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

21

Toro 93-3240

PLUNGER-SEAL

$

$

Not available
