12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) RIGHT HAND CALIPER ASSEMBLY NO. 104-6802 Parts Diagram

Twister Utility Vehicle

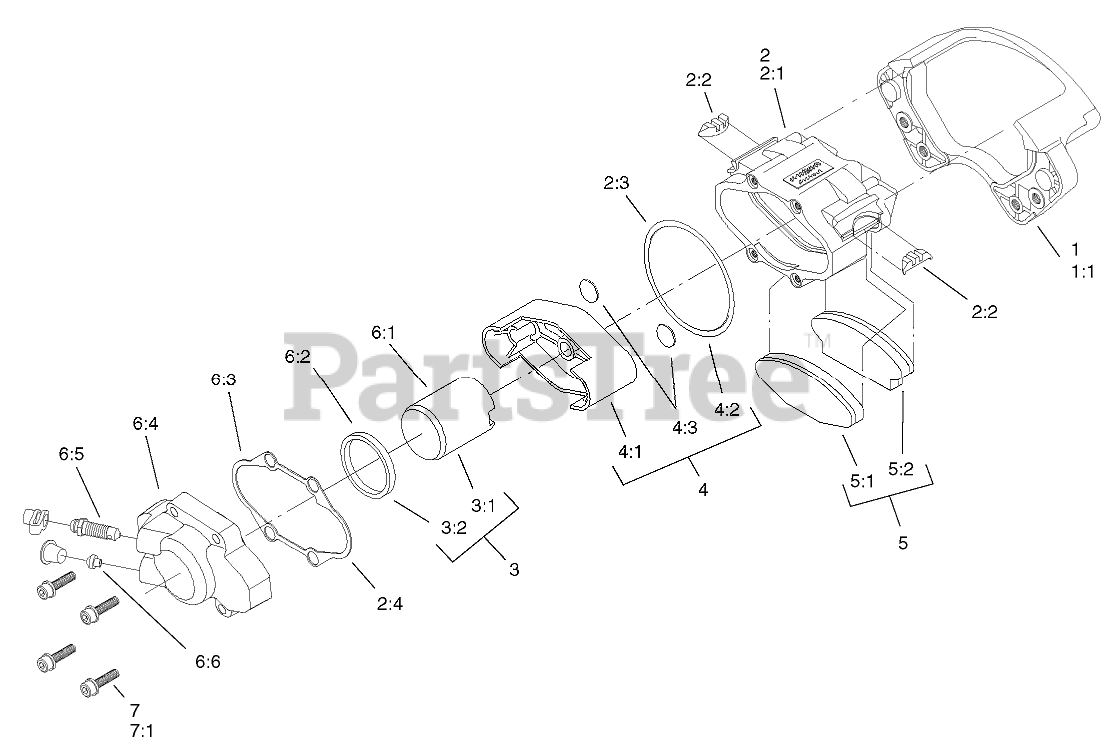

RIGHT HAND CALIPER ASSEMBLY NO. 104-6802 Parts Diagram

  • Title

1

Toro 105-9311

BRACKET KIT

$

$

Not available

1:1

Bracket

Note: Not serviced separately

$

$

Not available

2

Toro 105-9312

HOUSING KIT

$

$

Not available

2:1

Housing

Note: Not serviced separately

$

$

Not available

2:2

Spring-Rubber

Note: Not serviced separately

$

$

Not available

2:3

Seal-Dust

Note: Not serviced separately

$

$

Not available

2:4

Gasket

Note: Not serviced separately

$

$

Not available

3

Toro 105-9313

PISTON & SEAL KIT

$

$

Not available

3:1

Piston-Round

Note: Not serviced separately

$

$

Not available

3:2

Seal-Square

Note: Not serviced separately

$

$

Not available

4

Toro 105-9314

PISTON & O-RING KIT

$

$

Not available

4:1

Piston-Oval

Note: Not serviced separately

$

$

Not available

4:2

Seal-Dust

Note: Not serviced separately

$

$

Not available

4:3

Plug-Piston

Note: Not serviced separately

$

$

Not available

5

Toro 105-9315

PAD KIT

$227.99

$

Usually ships in 3-6 days

0

5:1

Pad/Holder ASM

Note: Not serviced separately

$

$

Not available

5:2

Pad/Holder ASM

Note: Not serviced separately

$

$

Not available

6:1

Piston-Round

Note: Not serviced separately

$

$

Not available

6:2

Seal-Square

Note: Not serviced separately

$

$

Not available

6:3

Gasket

Note: Not serviced separately

$

$

Not available

6:4

Cover

Note: Not serviced separately

$

$

Not available

6:5

Screw-Bleeder

Note: Not serviced separately

$

$

Not available

6:6

Insert-Seat

Note: Not serviced separately

$

$

Not available

6

Toro 105-9316

RH PISTON & COVER ASM KIT

$

$

Not available

7

Toro 105-9318

BOLT KIT

$

$

Not available

7:1

Screw-Cover

Note: Not serviced separately

$

$

Not available
